Toro 07253 Service Manual

Workman 1100/2100/2110 Drive TrainPage 5 – 31

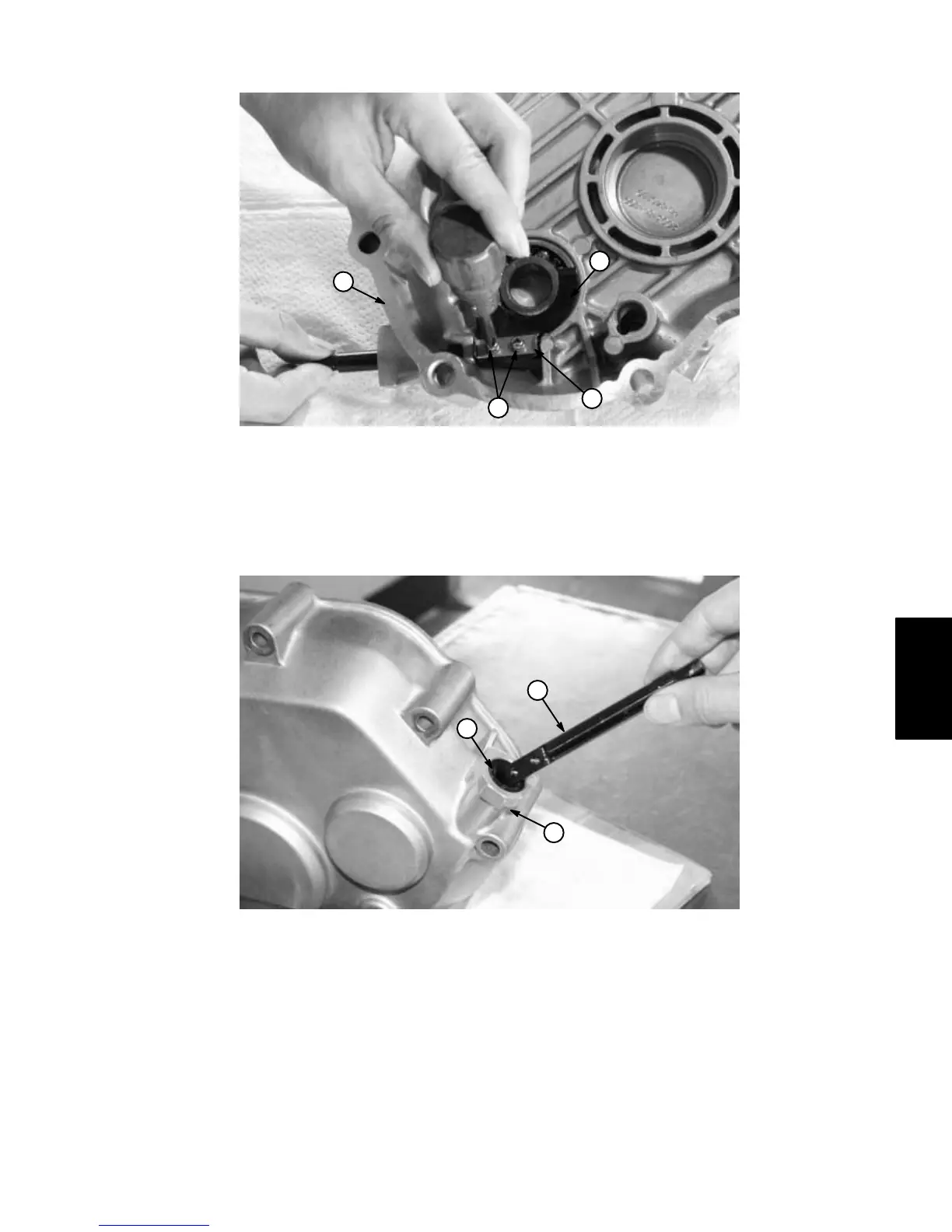

7. Disassemble governor fork and shaft.
1. Screw
2. Stopper
3. Governor fork
4. Case (RH)
Figure 48
1
4
2
3
IMPORTANT: Make sure not to damage the screw
heads when removing screws. Each screw is se-
cured with an adhesive.
A. Remove both screws and washers securing the
stopper and governor fork to the case (RH). Remove
stopper and fork from the case.
1. Governor shaft
2. Boss
3. Oil seal
Figure 49
1
2
3
IMPORTANT: Make sure not to damage the oil seal
when removing the governor shaft from the gover-
nor boss.
B. Pull governor shaft from the boss.
C. Replace oil seal if if cracked, nicked, or distorted
such that it would not hold a proper seal.
Drive
Train
