SettinguptheFrontMowerDeck
1.Rotatethebladeoneachspindleuntiltheendsface
forwardandbackward.
2.Measurefromtheoortothefronttipofthecutting
edge.
3.Adjusttheshims(3mmor1/8inch)onthefrontcaster
fork(s)tomatchtheheight-of-cutdecal(Figure26);
refertoAdjustingtheMower-DeckPitch(page55).

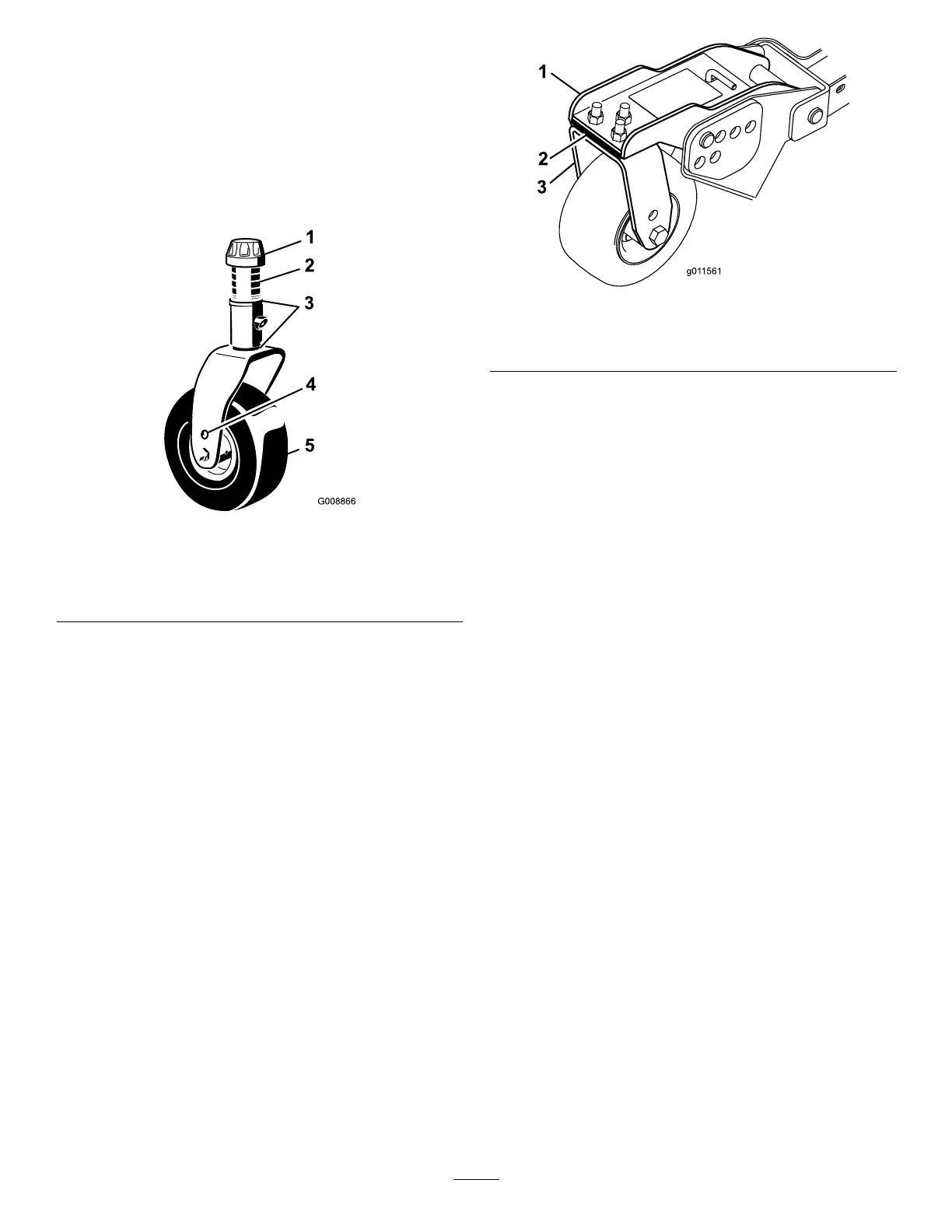

Figure26
1.Tensioningcap4.Topaxle-mountinghole
2.Spacers5.Casterwheel
3.Shims
SettinguptheWingMowerDecks
1.Rotatethebladeofeachspindleuntiltheendsface
forwardandbackward.
2.Measurefromtheoortothefronttipofthecutting
edge.
3.Adjusttheshims(3mmor1/8inch)onfrontcaster
arm(s)tomatchtheheight-of-cutdecal(Figure27).
Note:Fortheoutsidebladespindleonly,referto
AdjustingtheMower-DeckPitch(page55).
Figure27
1.Frontcasterarm
3.Frontcasterfork
2.Shims
MatchingtheHeightofCutBetween
MowerDecks
1.Positionthebladesidetosideontheoutsidespindleof
bothwingmowerdecks.
2.Measurefromtheoortothetipofthecuttingedge
onbothunitsandcompare.
Note:Thesenumbersshouldbewithin3mm(1/8
inch)ofeachother.Makenoadjustmentatthistime.
3.Positionthebladesidetosideontheinsidespindle
ofthewingmowerdeckandcorrespondingoutside
spindleofthefrontmowerdeck.
4.Measurefromtheoortothetipofthecutting
edgeontheinsideedgeofwingmowerdecktothe
correspondingoutsideedgeoffrontmowerdeckand
compare.
Note:Thewingmower-deckmeasurementshouldbe
within3mm(1/8inch)ofthefrontmowerdeck.
Note:All3mowerdeckcasterwheelsshouldremain
onthegroundwithcounterbalanceapplied.
Note:Ifadjustmentsneedtobemadetomatchthe
cutbetweenthefrontandwingmowerdecks,makethe
adjustmentstothewingmowerdecksonly.
5.Iftheinsideedgeofthewingmowerdeckistoohigh
relativetotheoutsideedgeofthefrontmowerdeck,
removea3mm(1/8inch)shimfromthebottomof
thefront,insidecasterarmonthewingmowerdeck
(Figure27).
Note:Checkthemeasurementsbetweentheoutside
edgesofbothwingmowerdecksandtheinsideedge
ofthewingmowerdecktotheoutsideedgeofthe
frontmowerdeckagain.
6.Iftheinsideedgeisstilltoohigh,removeanadditional
shim(3mmor1/8inch)fromthebottomoffront,
insidecasterarmofthewingmowerdeckandashim
