Steering-LeverTilt
Presstheleverdowntotiltthesteeringwheeltothedesired
position.Releasethelevertolocktheadjustment(Figure9).
Turn-SignalSwitch
Presstheleftsideoftheturn-signalswitchtoactivatethe
left-turnsignalandtherightsideoftheswitchtoactivatethe
right-turnsignal(Figure9).
Note:Thecenterpositionisoff.
High-LowRangeSpeedSwitch
PressthefrontoftheswitchtoselectHIGH-SPEEDRANGE.
PresstherearoftheswitchtoselectLOW-SPEEDRANGE.The
machinemustbestationaryortravelingataveryslowspeed,
lessthan3.2km/h(2mph),toshifttoHIGH–LOW(Figure9).
HornButton
Pressthehornbuttontoactivatethehorn(Figure9).
ThrottleSwitch
Thethrottleswitchhas3positionsLOWIDLE,MIDIDLE,and
HIGHIDLE(Figure9).
Variable-ThrottleSwitch
Thevariable-throttleswitchallowstheenginespeedtobe
adjustedinsmallincrements.Pressthe“+”oncetoincrease
theenginespeedandthe“-”oncetodecreasetheengine
speed(Figure10).
Note:Movingthethrottleswitchoverridesandcancelsthe
variable-throttlesetting.
Important:Donotoperatetheenginebelow1350rpm.
KeySwitch
Thekeyswitch(Figure10)has3positions:STOP,
RUN/PREHEAT,andSTART.

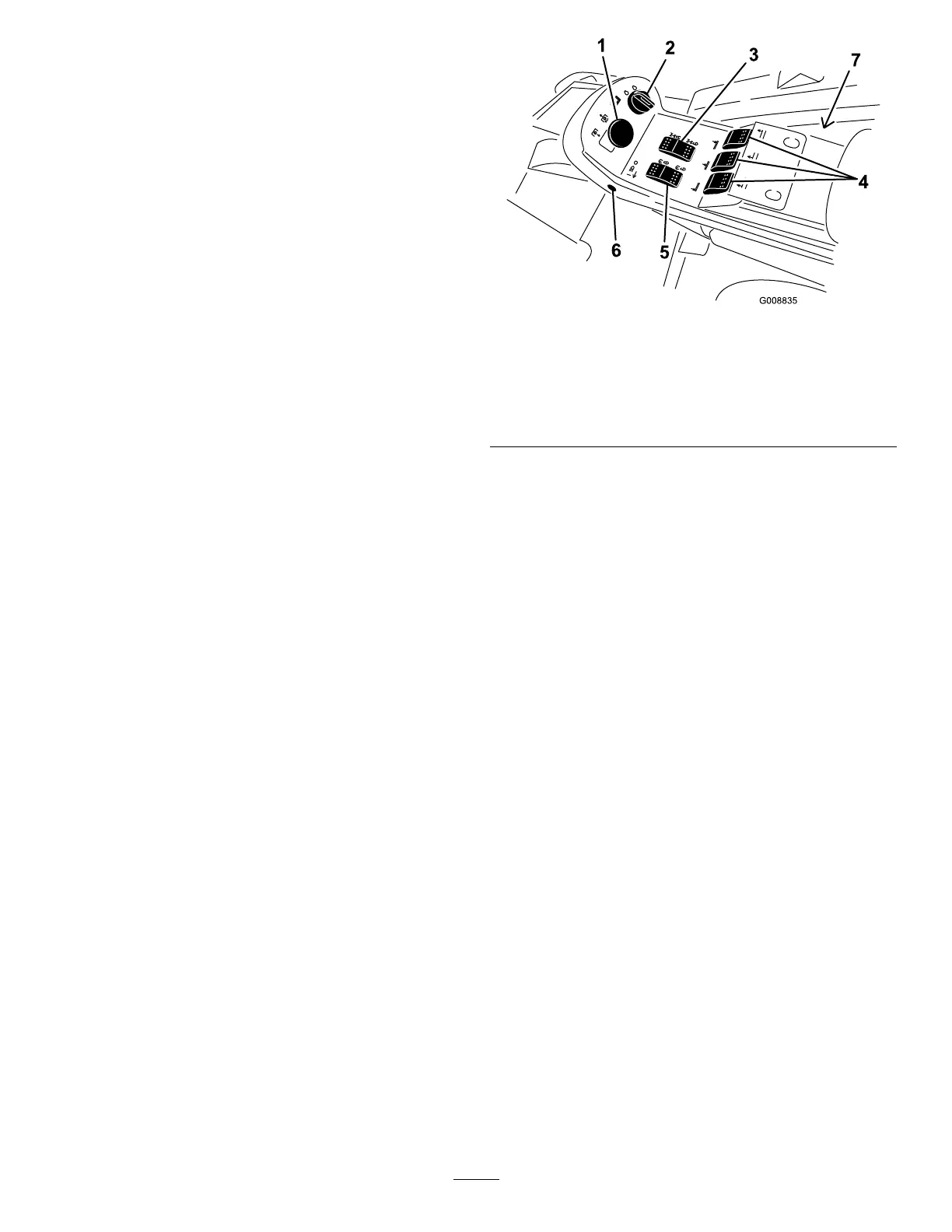

Figure10
1.PTOswitch5.Cruisecontrol
2.Keyswitch6.Lightswitch
3.Traction-assistswitch
7.Powerpoint(ontheright
sideofconsole)
4.Liftswitches
LiftSwitches
Theliftswitchesraiseandlowerthemowerdecks(Figure10).
Presstheswitchesforwardtolowerthemowerdeckand
backwardtoraiseit.
Note:Thedecksdonotlowerwhilethemachineisinthe
HIGH-speedrange,andthedecksdonotraiseorlowerifyou
areoutoftheseatwhiletheengineisrunning.
LightSwitch
PressthelightswitchupwardtoturnthelightstotheON
position(Figure10).
Pressthelightswitchdownwardtoturnthelightstothe
OFFposition.
PTOSwitch
ThePTOswitchhas2positions:OUT(start)andIN(stop).
PulloutthePTObuttontoengagetheimplementor
mower-deckblades.Pushinthebuttontodisengagethe
implementoperation(Figure10).
Traction-AssistSwitch
Whenmowing(lowspeedrange),pressandholdthe
traction-assistswitchtoenhancethetraction-drive
performanceincompromisedoperatingconditions(Figure
10).
Note:ThetractionassistonlyengagesinMow-Forward.
ThetractionassistdoesnotengageinMow-ReverseorHigh
speedrange.
