•Carefullyreleasepressurefromcomponentswithstored
energy.
•Ifyourmachinerequiresmajorrepairsorifyoudesire
assistance,contactanAuthorizedToroDistributor.
•UseonlygenuineTororeplacementpartsandaccessories.
Replacementpartsandaccessoriesmadebyother
manufacturerscouldbedangerous,andsuchusecould
voidtheproductwarranty.
PreparingtheMachinefor
Maintenance
1.EnsurethatthePTOisdisengaged.
2.Parkthemachineonalevelsurface.
3.Settheparkingbrake.
4.Lowerthecuttingunit(s)ifnecessary.
5.Shutofftheengineandwaitforallmovingpartsto
stop.
6.TurntheignitionkeytotheSTOPpositionandremove
it.
7.Allowmachinecomponentstocoolbeforeperforming
maintenance.
RaisingtheMachine
Usethefollowingaspointstojackupthemachine:
Frontofthemachine—ontheframe,ontheinsideofeach
drivetire(Figure43)

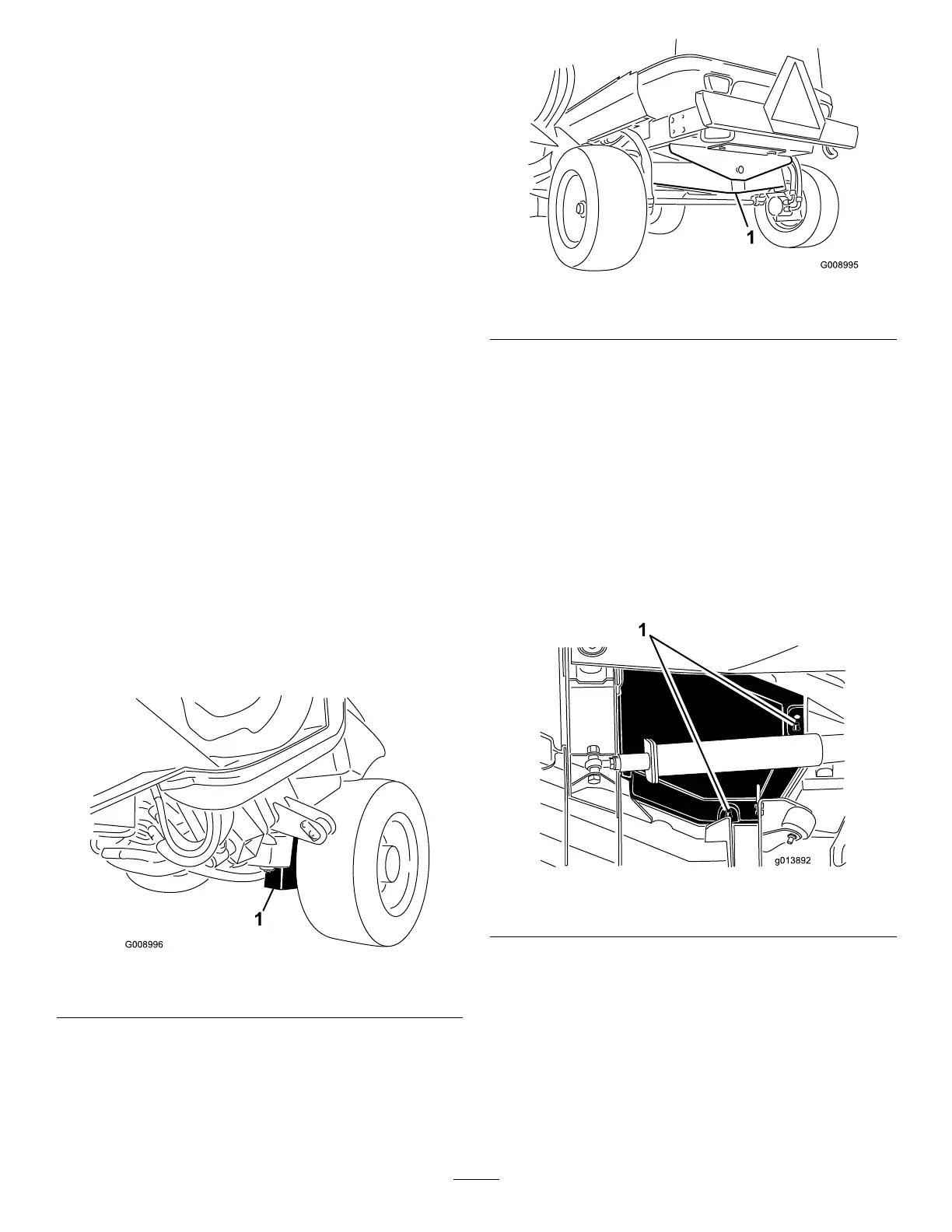

Figure43
1.Frontjackingpoint(2)
Rearofthemachine—atthecenteroftheaxle(Figure44)
Figure44
1.Rearjackingpoint
RemovingandInstallingthe
Inner-Wing-DeckCovers
RemovingtheInner-Wing-DeckCovers
1.Lowerthewingdeckontoalevelsurface.
2.Disengagethecoverlatch.
3.Removetheboltsecuringthebeltcover(ifequipped).
4.Lifttherearandinsidecoveredgesoffthemounting
posts(Figure45).
Figure45
1.Mountingposts
5.Whileliftingthecover,slideittowardthetractionunit
approximately2.5cm(1inch),todisengagetheouter
coveredgefromthedeck(Figure46).
