Toro 31598N - Lubrication; Greasing the Bearings and Bushings

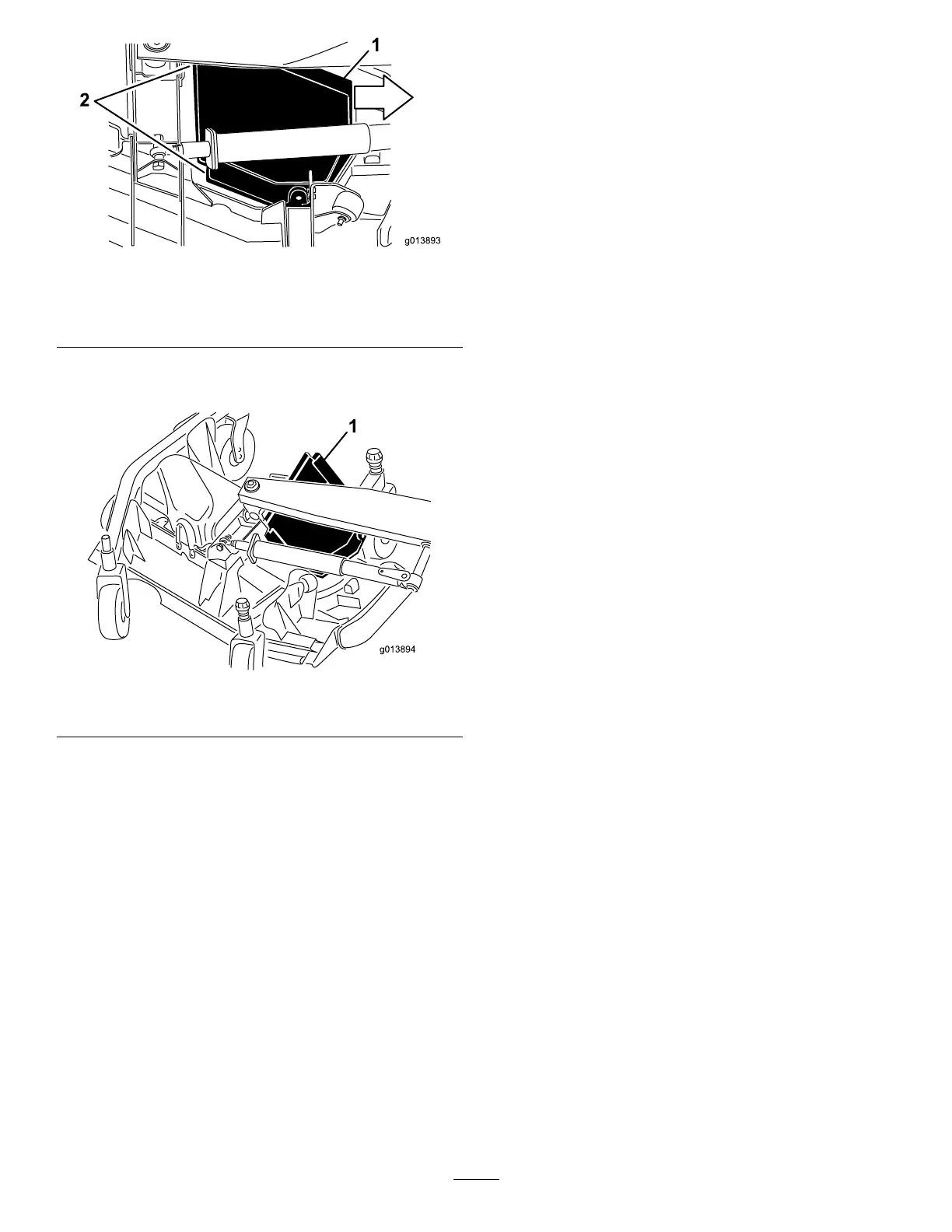

Figure46
1.Slidethecoverinward
approximately2.5cm(1
inch).
2.Disengagethesecover
edges.
6.Liftthefrontedgeandguideitbetweentheliftarm
andtherollertoremoveit(Figure47).
Figure47
1.Slidethecoveroutbetweentheliftarmandroller.
InstallingtheInner-Wing-DeckCovers
1.Lowerthewingdeckontoalevelsurface.
2.Slidethecoverintopositionbyguidingtherearedge
betweentheliftarmandtheroller.
3.Whileslidingthecoverawayfromthetractionunit,
guidetheoutsideedgeunderthefrontandrearbrackets
onthedeck.
4.Alignthedeckmountingpostswiththeholesinthe
coverandlowerthecoverintoposition.
5.Installtheboltsecuringthebeltcover,ifsoequipped.
6.Engagethedeck-coverlatch.
Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Beforeeachuseordaily—Lubricatethe
caster-armbushings.
Every50hours—Lubricateallgreasettings.
Themachinehasgreasettingsthatyoumustlubricate
regularlywithNo.2lithiumgrease.Also,lubricatethe
machineimmediatelyaftereverywashing.
Note:Lubricatethecaster-fork-shaftbushingsbefore
eachuseordaily.
TractionUnit
•2impactarms(Figure48)
•2frontdeck-lift-cylinderpivots(Figure48)
•2sidedeck-lift-cylinderpivots(Figure48)
•4steering-cylinder-balljoints(Figure49)
•2tie-rod-balljoints(Figure49)
•2king-pinbushings(Figure49)
•1rearaxle-pivotbushing(Figure50)
•1brake-shaft-pivotbearing(Figure51)
39
