g021 156

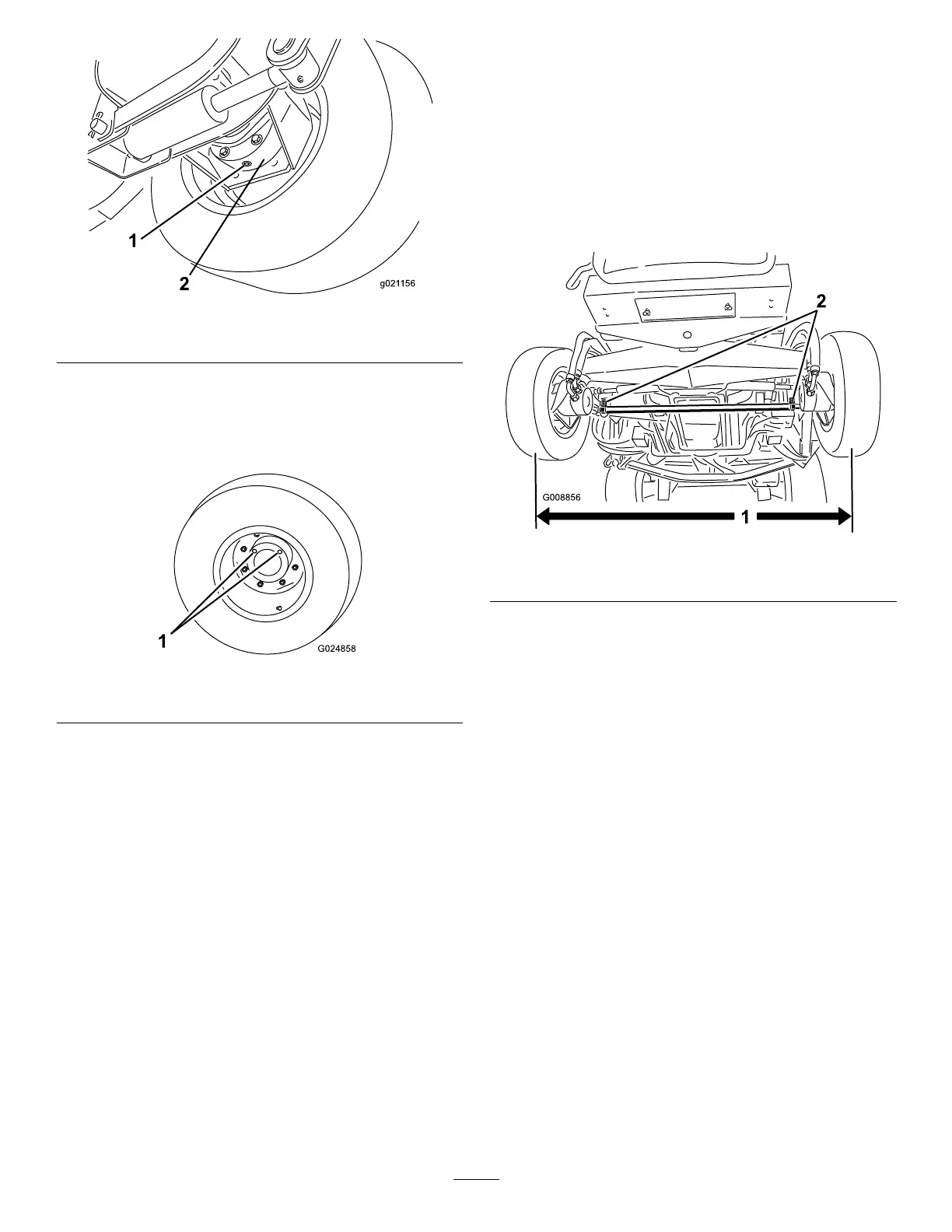

Figure74
1.Drainplug2.Brakehousing
4.Whenalloftheoilhasdrainedfrombothlocations,
installthepluginthebrakehousing.
5.Rotatethewheeluntiltheopenholesintheplanetary
areatthe11o’clockand1o'clockpositions.
G024858
1
Figure75
1.Holesatthe11o’clockand1o'clockpositions
6.Througheitheropenhole,slowlylltheplanetarywith
0.53to0.59L(18to20ounces)ofhighqualitySAE
85W-140wt.gearlube.
7.Installtheplugs.
8.Repeattheprocedureontheoppositeplanetary/brake
assembly
CheckingtheRear-Wheel
Toe-in
ServiceInterval:Every1,000hours—Checktherear-wheel
toe-in.
1.Measurethecenter-to-centerdistance(ataxleheight)at
thefrontandrearofthesteeringtires(Figure76).
Note:Thefrontmeasurementcannotbemorethan3
mm(0.12inch)lessthantherearmeasurement.
Figure76
1.Center-to-centerdistance
2.Tie-rodclamps
2.Toadjust,loosentheclampsatbothendsofthetie
rods(Figure76).
3.Rotatethetie-rodendtomovethefrontofthetire
inwardoroutward.
4.Tightenthetie-rodclampswhentheadjustmentis
correct.
