•Performarecovery-regenerationwhenever
thereisalossofenginepowerandaparked
regenerationcannoteffectivelycleantheDPFof
soot.
•Arecoveryregenerationrequiresupto4hours
tocomplete.
•Youneedadistributortechniciantoperformthe
recoveryregenerationprocess;contactyour
AuthorizedT oroDistributor.
AdjustingtheHeight-of-Cut
Youcanadjusttheheight-of-cutfrom2.5to15.8cm
(1to6inches)in6mm(1/4inch)incrementsby
relocatingthestoppinintodifferentholelocations.
1.Withtheenginerunning,pushthedeck-lift
switchupuntilthemowerdeckisfullyraisedand
releasetheswitchimmediately(Figure19).
2.Toadjusttheheight-of-cut,rotatethestoppin
untiltherollpininitlinesupwiththeslotsinthe
holesintheheight-of-cutbracketandremove
it(Figure43).
3.Selectaholeintheheight-of-cutbracket
correspondingtoyourdesiredheight-of-cut,
insertthepin,androtateitdowntolockitin
place(Figure43).
Note:Thereare4rowsofholepositions(Figure
43).Thetoprowgivesyoutheheight-of-cut
listedabovethepin.Thesecondrowdowngives
youtheheightlistedplus6mm(1/4inch).The
thirdrowdowngivesyoutheheightlistedplus
12mm(1/2inch).Thebottomrowgivesyouthe
heightlistedplus18mm(3/4inch).Forthe15.8
cm(6inch)position,thereisonly1hole,located
inthesecondrow.Thisdoesnotadd6mm(1/4
inch)tothe15.8cm(6inch)position.

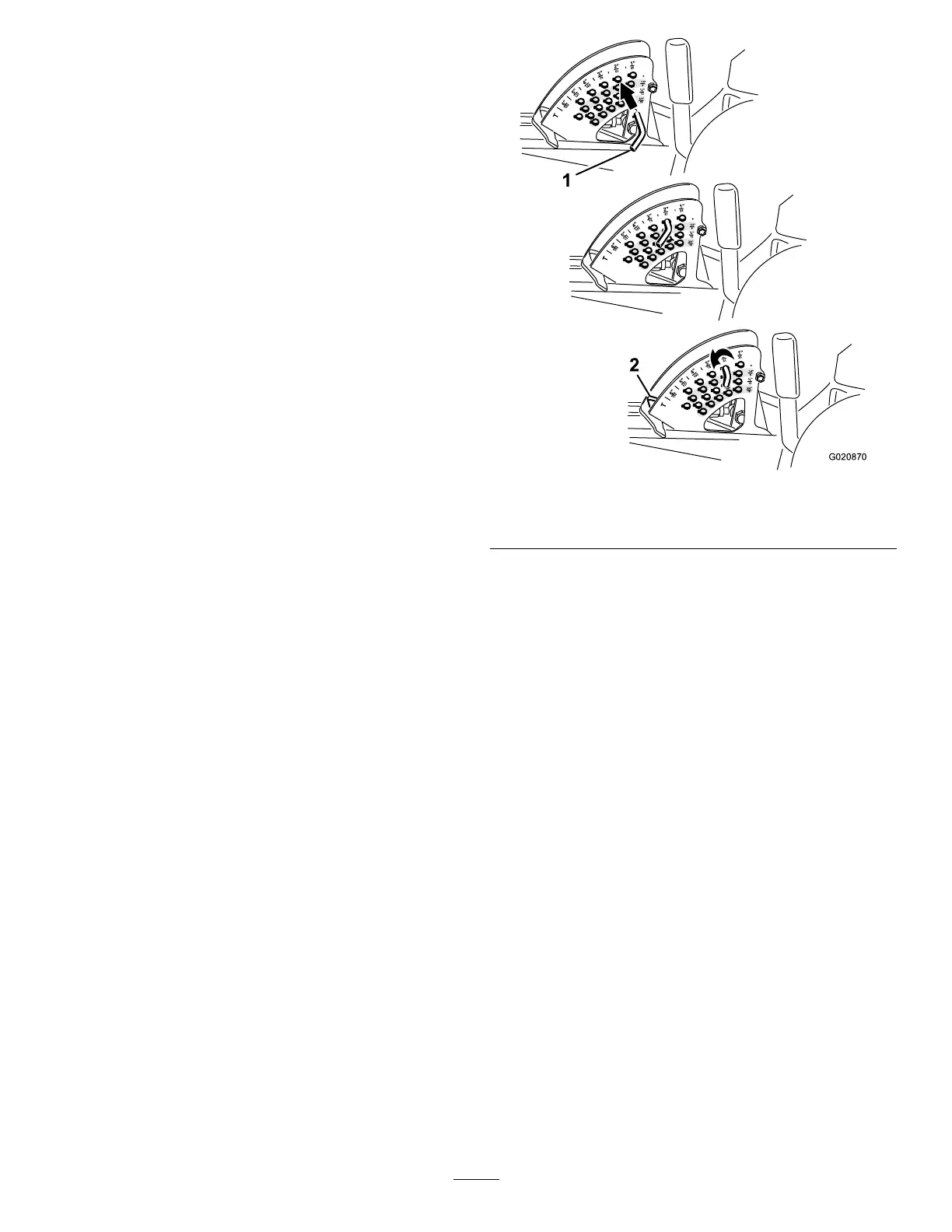

g020870
Figure43
1.Stoppin2.Height-of-cutstop
4.Adjusttheanti-scalprollersandskidsas
required.
AdjustingtheSkid(s)
Mounttheskidsinthelowerpositionwhenoperating
inheight-of-cutshigherthan64mm(2-1/2inches)and
inthehigherpositionwhenoperatinginheight-of-cuts
lowerthan64mm(2-1/2inches).
Note:OnGuardian
®
mowers,whentheskids
becomeworn,youcanswitchtheskidtotheopposite
sidesofthemower,ippingthemover.Thisallows
youtousetheskidslongerbeforereplacingthem.
1.DisengagethePTO,movethemotion-control
leverstotheNEUTRAL-LOCKEDposition,andset
theparkingbrake.
2.MovethethrottlelevertotheSLOWposition,
stoptheengine,removethekey,andwaitfor
allmovingpartstostopbeforeleavingthe
operatingposition.
37
