Toro MultiPro 1750 User Manual
4
of 1
of 1 rating
80 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

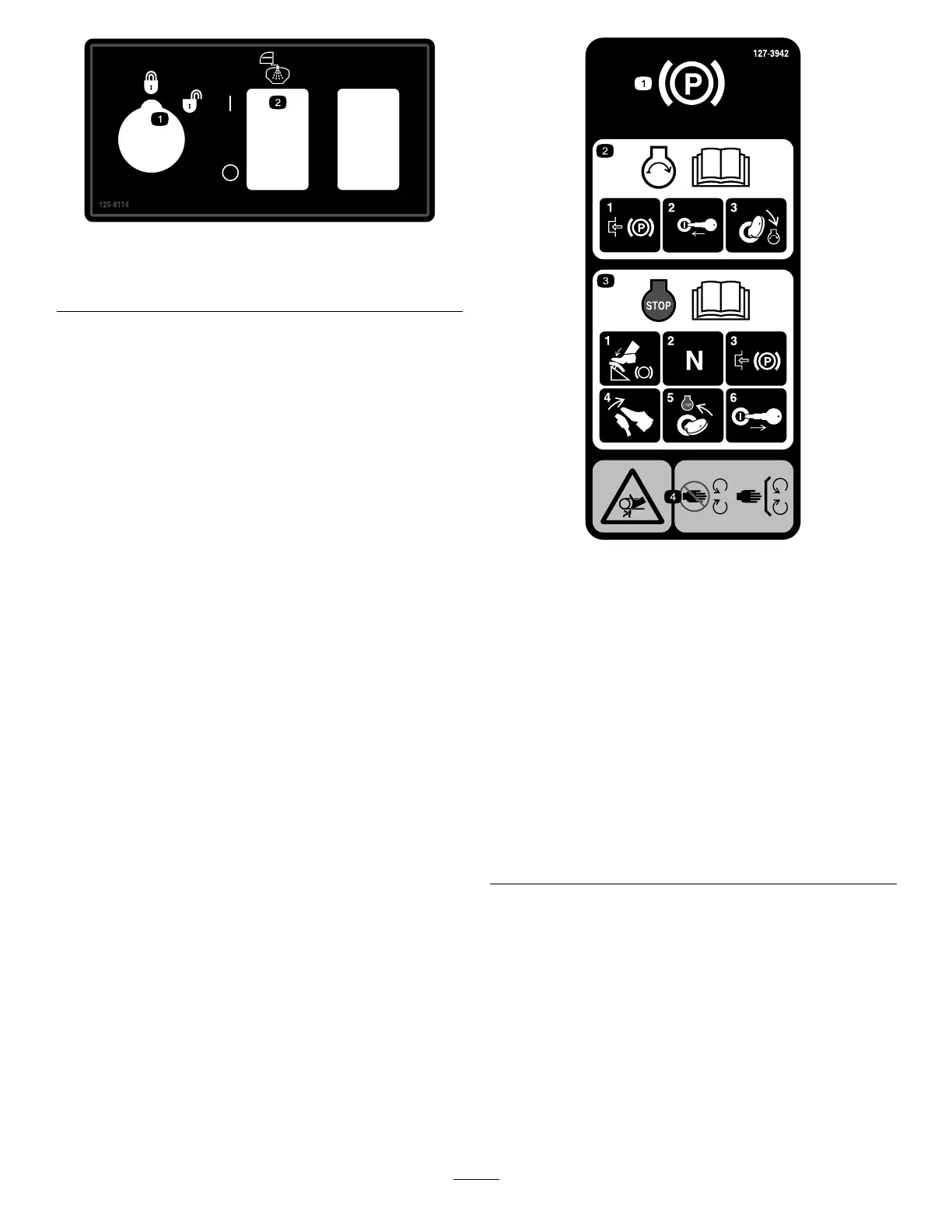

decal125-81
14
125–81
14
1.
Rate
lockout
locked/unlocked
2.
T
oggle
rinse
pump
on/of
f
decal127-3935
127–3935
1.
Parking
brake
3.
For
information
on
shutting
off
the
engine,
read
the
Operator
’s
Manual
—1)
Press
down
on
the
brake
pedal;
2)
Set
the
gear
to
neutral;
3)
Engage
the
parking
brake;
4)
Release
the
brake
pedal;
5)
T
urn
the
ignition
key
to
STOP
position;
6)
Remove
the
key
from
the
ignition.
2.
For
information
on
starting
the
engine,
read
the
Operator
’s
Manual
—1)
Engage
the
parking
brake;
2)
Insert
the
key
into
the
ignition;
3)
T
urn
the
key
to
the
engine
run
position.
4.
Entanglement
hazard,
belt—keep
away
from
moving
parts;
keep
all
guards
and
shields
in
place.
7
6
8
Table of Contents
Default Chapter
2
Figure 1
2
Table of Contents
3
Safety
4
General Safety
4
Safety and Instructional Decals
5
1 Installing the Anti-Siphon Fill Receptacle
12
Setup
12
2 Checking the Section-Hinge Springs
13
Product Overview
14
Controls
16
Specifications
20
Attachments/Accessories
20
Before Operation
20
Before Operation Safety
20
Performing Pre-Starting Checks
21
Preparing the Machine
22
Breaking in a New Machine
23
Preparing the Sprayer
23
Locating the Spray Pump
30
During Operation
31
During Operation Safety
31
Operating the Machine
32
Using the Differential Lock
33
Operating the Sprayer
33
Positioning the Spray Sections
34
Spraying Tips
35
Unclogging a Nozzle
35
After Operation
35
After Operation Safety
35
Cleaning the Sprayer
36
Maintenance
41
Maintenance Safety
41
Recommended Maintenance Schedule(S)
42
Daily Maintenance Checklist
43
Notation for Areas of Concern
44
Pre-Maintenance Procedures
44
Raising the Sprayer
44
Lubrication
45
Greasing the Machine
45
Greasing the Sprayer Pump
45
Greasing the Section Hinges
46
Engine Maintenance
46
Engine Safety
46
Checking the Air-Intake Screen
46
Servicing the Air Cleaner
46
Servicing the Engine Oil
47
Changing the Spark Plugs
49
Fuel System Maintenance
50
Replacing the Fuel Filter
50
Servicing the Carbon Canister
50
Draining the Fuel Tank
51
Electrical System Maintenance
51
Electrical System Safety
51
Locating the Fuses
51
Servicing the Battery
51
Drive System Maintenance
53
Inspecting the Wheels and Tires
53
Adjusting the Differential-Lock Cable
53
Adjusting the Front Wheel Toe-In
54
Brake Maintenance
55
Checking the Brake Fluid
55
Inspecting the Brakes
55
Adjusting the Parking Brake
55
Hydraulic System Maintenance
56
Hydraulic System Safety
56
Hydraulic Fluid Specification
56
Checking the Transaxle/Hydraulic Fluid
56
Changing Transaxle/Hydraulic Fluid
56
Replacing the Hydraulic Filter
57
Checking the Hydraulic Lines and Hoses
57
Spray System Maintenance
58
Inspecting the Hoses
58
Changing the Suction Filter
58
Changing the Pressure Filter
58
Changing the Nozzle Filter
59
Inspecting the Pump
59
Inspecting the Nylon Pivot Bushings
60
Adjusting the Booms to Level
60
Cleaning
61
Cleaning the Flow Meter
61
Cleaning the Sprayer Valves
62
Storage
71
Preparing the Sprayer System
71
Performing the Service Procedures
72
Preparing the Engine and Battery
72
Preparing the Machine
72
Troubleshooting
73
Schematics
76
4
