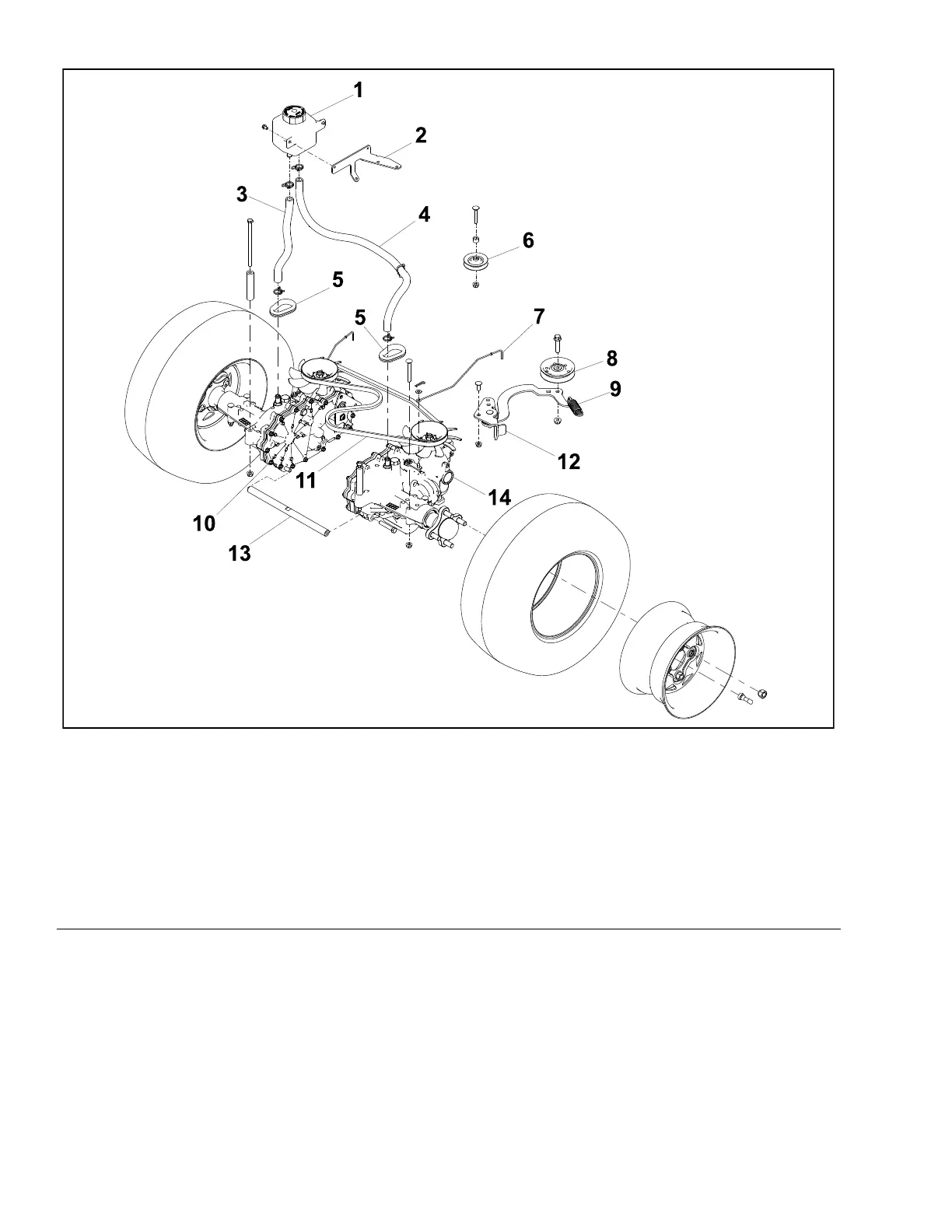

48,54,and60InchDriveAsm2
g313850
Figure94
1.HydraulicT ank8.FlatIdlerPulley
2.ExpansionTankBracket
9.ExtensionSpring
3.OverowHose
10.RHZT-2800Transmission
4.HydroHose11.V-Belt
5.RubberGrommet
12.IdlerArmAsm
6.IdlerPulley
13.HydroCrossShaft
7.BypassRod14.LHZT-2800Transmission
DriveSystem:ServiceandRepairs
Page8–4
PROLINE®ServiceManual
3431-988RevA
