Toro PROLINE 44409 - Park Brake Adjustment

ParkBrakeInstallation(continued)

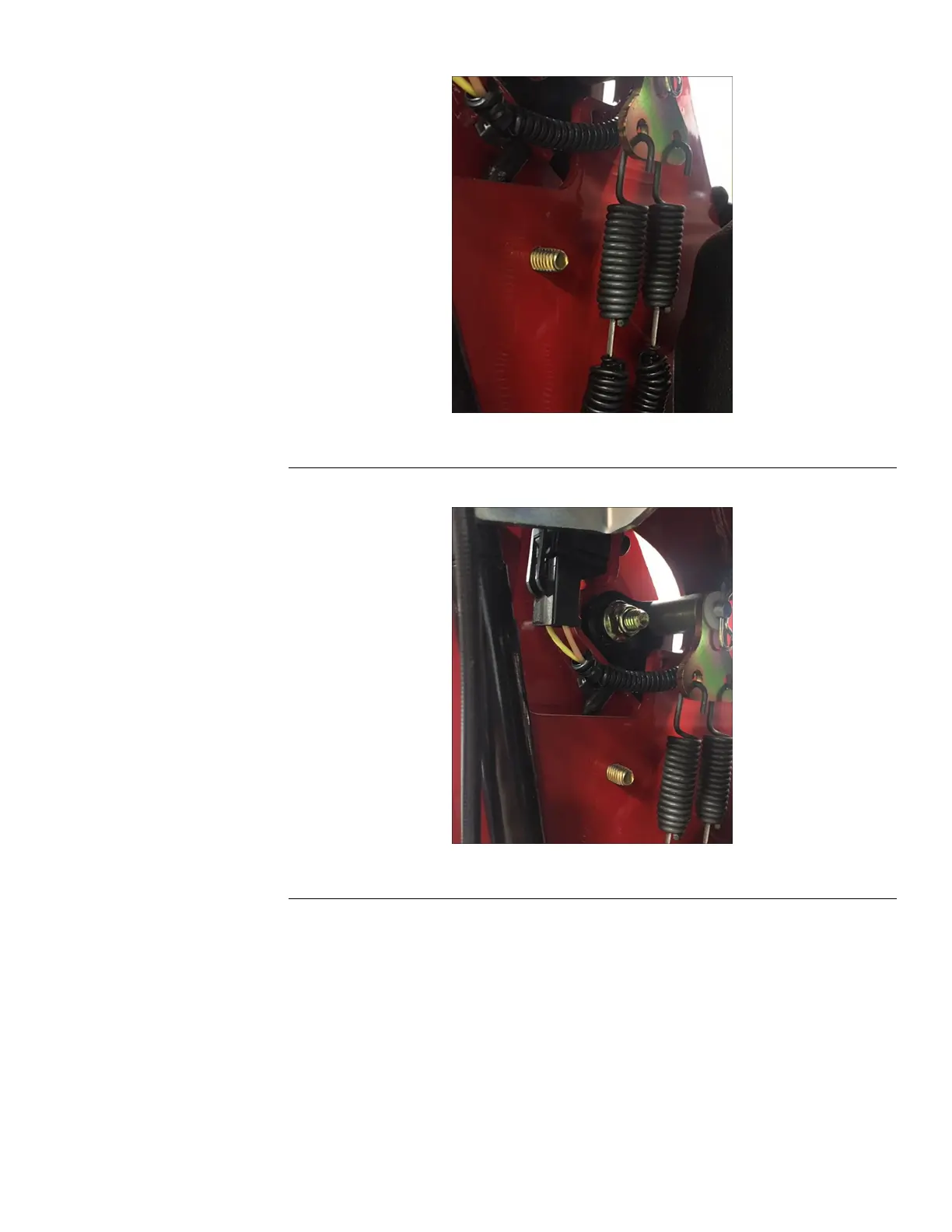

g311220
Figure73
6.Connecttheparkingbrakeswitchtothewiringharness.
g311219
Figure74
7.Pullthebrakearmuptoaddtensiontothebrakecablekeeper.
8.Removetheblocksfromthefrontandreartires.
9.Connectthepositivebatterycablerst,thenthenegativebatterycableto
thebattery.
ParkBrakeAdjustment
1.Placetheparkingbrakearmintothelockedposition.
2.Pulldownwardonbothparkingbrakecables.
3.Tightentheparkingbrakecablekeeper.
4.Testtoensurethemachinedoesnotmoveonitsown.
