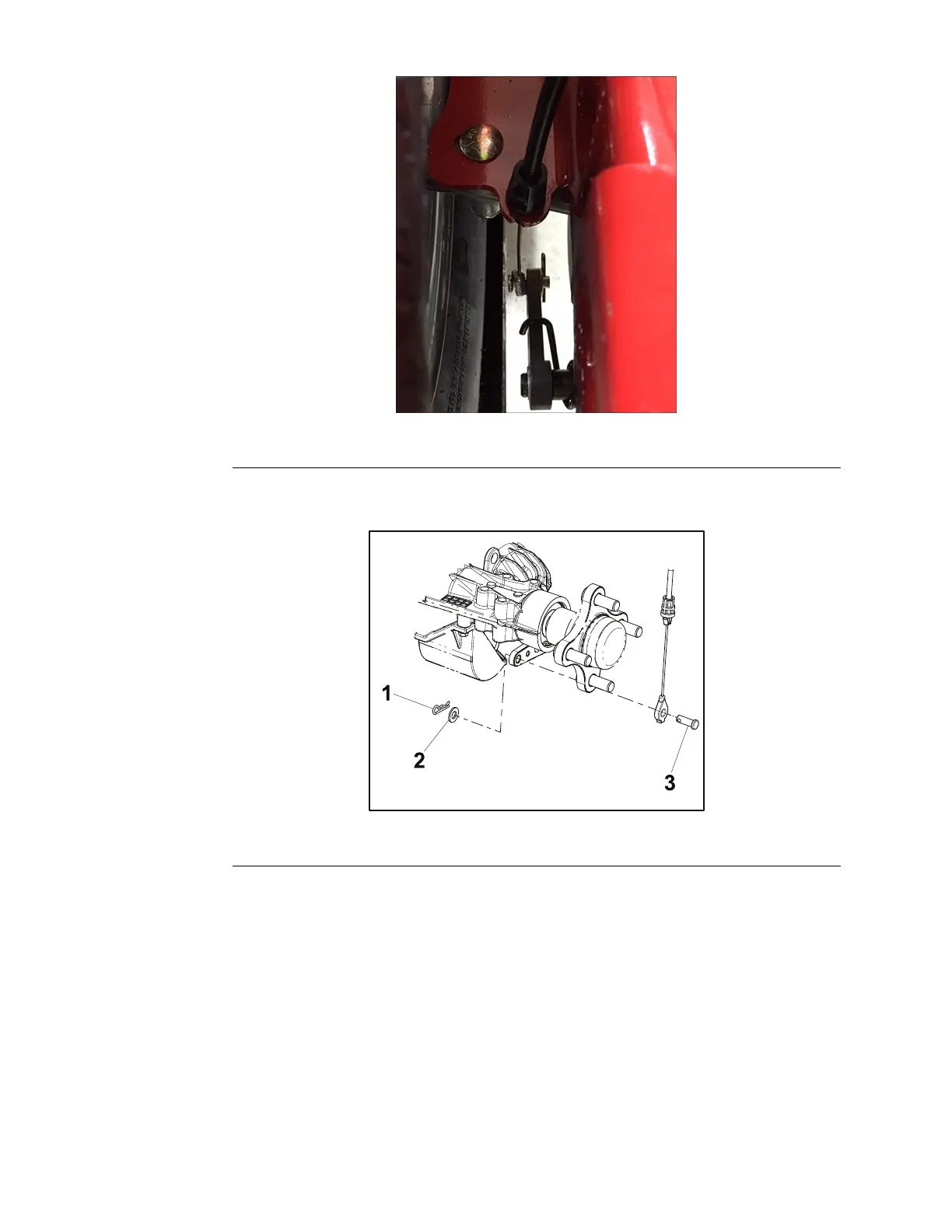

ParkBrakeInstallation(continued)
g311221
Figure71
4.InstalltheLHcotterpinandwasherfromtheclevispinonthebrakearmon
thehydro.Repeatforoppositeside.
g311244
Figure72
5.Installthe2parkingbrakecablestotheparkingbrakearm.
Controls:ServiceandRepairs
Page6–12
PROLINE®ServiceManual
3431-988RevA
