ServiceandRepairs

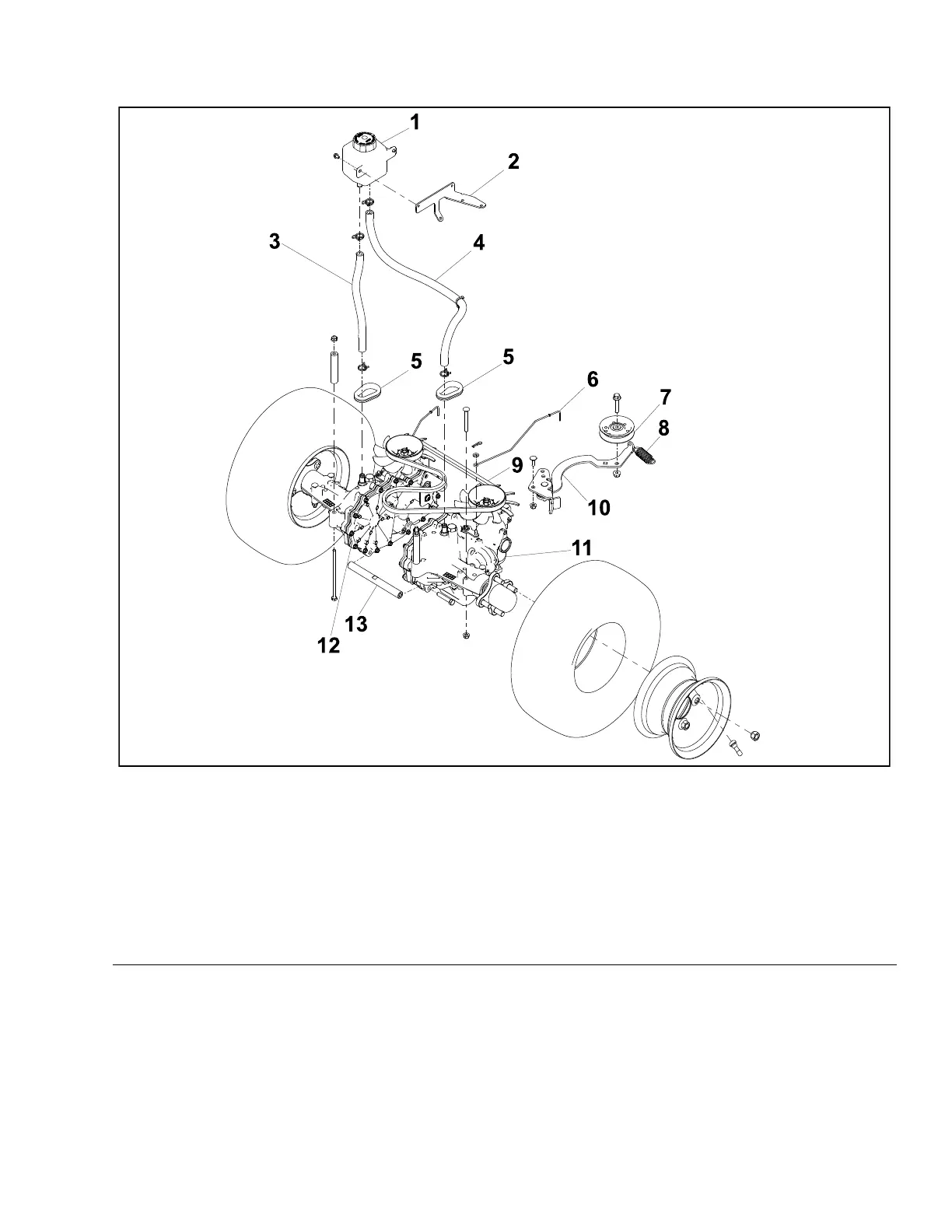

36InchDriveAsm1
g313849
Figure93
1.HydraulicT ank
8.ExtensionSpring
2.ExpansionTankBracket9.V-Belt
3.OverowHose
10.IdlerArmPivotAsm
4.OverowHose
11.LHZT-2800Transmission
5.RubberGrommet
12.RHZT-2800Transmission
6.BypassRod
13.HydroCrossShaft
7.FlatIdlerPulley
PROLINE®ServiceManual
Page8–3
DriveSystem:ServiceandRepairs
3431-988RevA
