Toro PROLINE 44409 - Park Brake Replacement

ParkBrakeReplacement
ParkBrakeRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.
3.Installblockstothefrontandreartirestopreventmovementofthemachine.
4.Lowerthebrakehandletoremovetensionfromthebrakecablekeeper.
5.Disconnecttheparkingbrakeswitchfromthewiringharness.

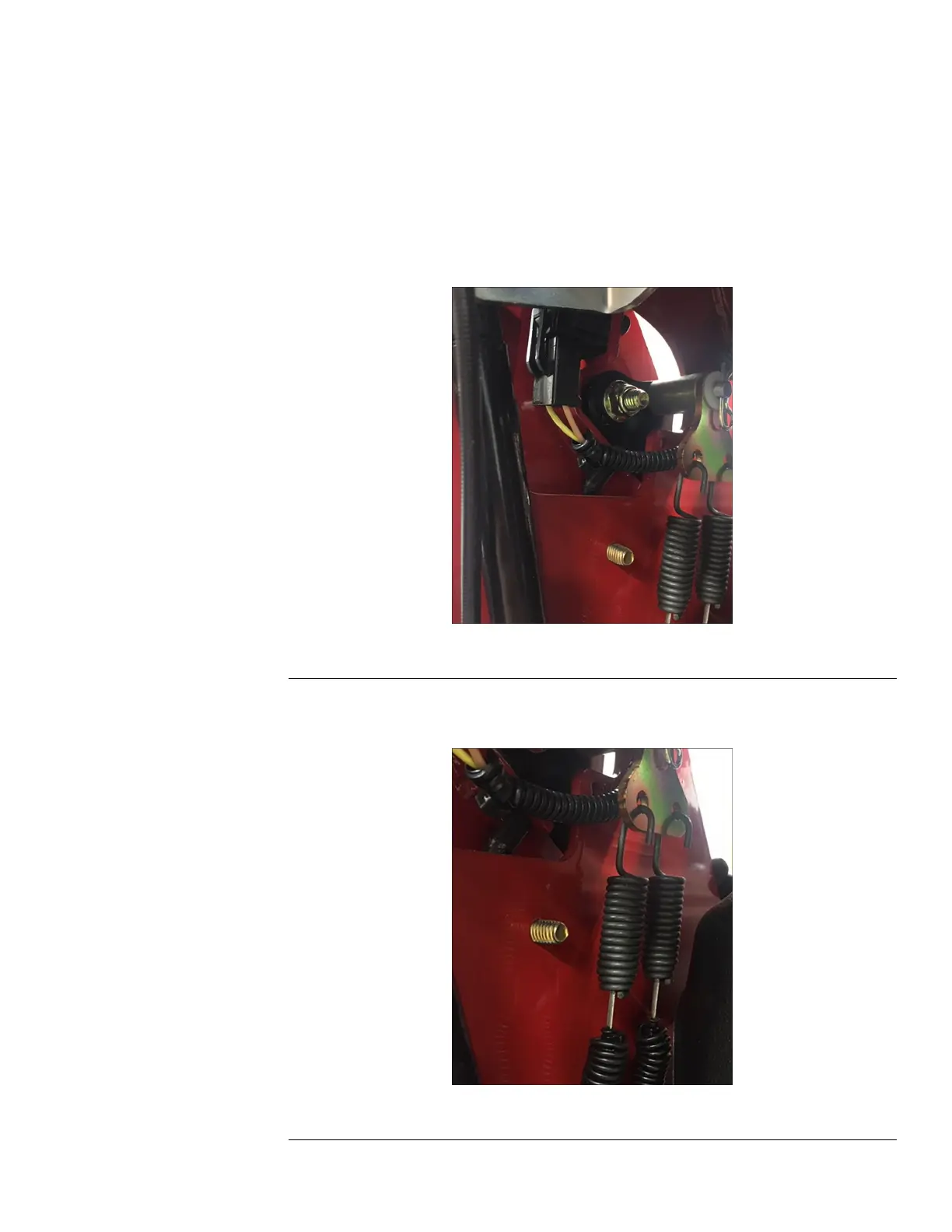

g311219
Figure65
6.Removethescrewsecuringtheparkbrakeclamptothetower.
7.Removethe2parkingbrakecablesfromtheparkingbrakearm.
g311220
Figure66
