ParkBrakeRemoval(continued)
8.RemovetheLHcotterpinandwasherfromtheclevispinonthebrakearm
onthehydro.Repeatforoppositeside.

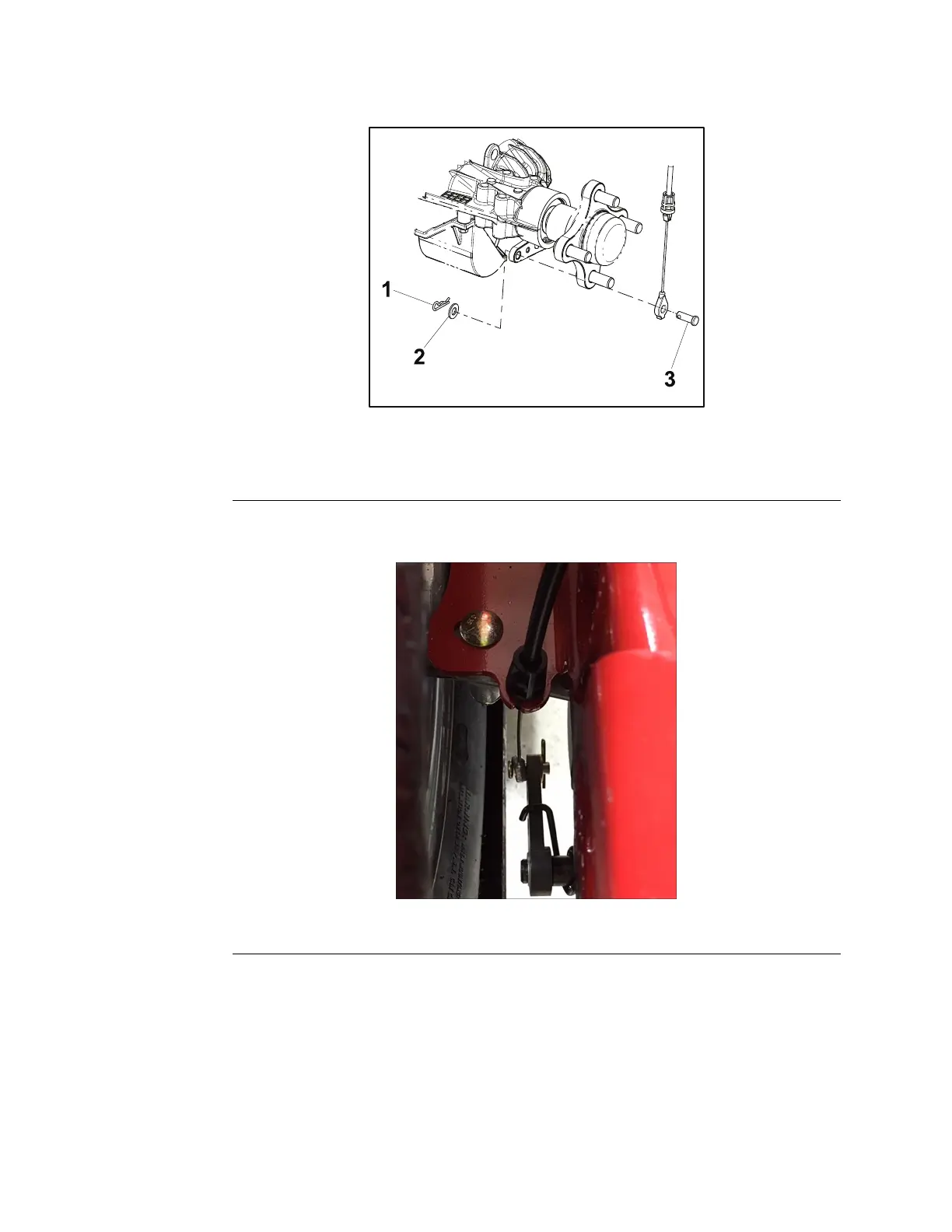

g311244
Figure67
1.CotterPin3.ClevisPin
2.Washer
9.Removethetransmissioncablekeeperfromthetransmissionmount.Repeat
foroppositeside.
g311221
Figure68
10.Removethe2torxboltssecuringtheparkingbrakearmtothesideofthe
controltower.
Controls:ServiceandRepairs
Page6–10
PROLINE®ServiceManual
3431-988RevA
