Toro PROLINE 44409 - Choke Cable Replacement; Choke Cable Removal; Choke Cable Installation

ChokeCableReplacement
ChokeCableRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.
3.Loosentheboltsecuringthechokecabletotheenginechokemountcable
outerhousing.

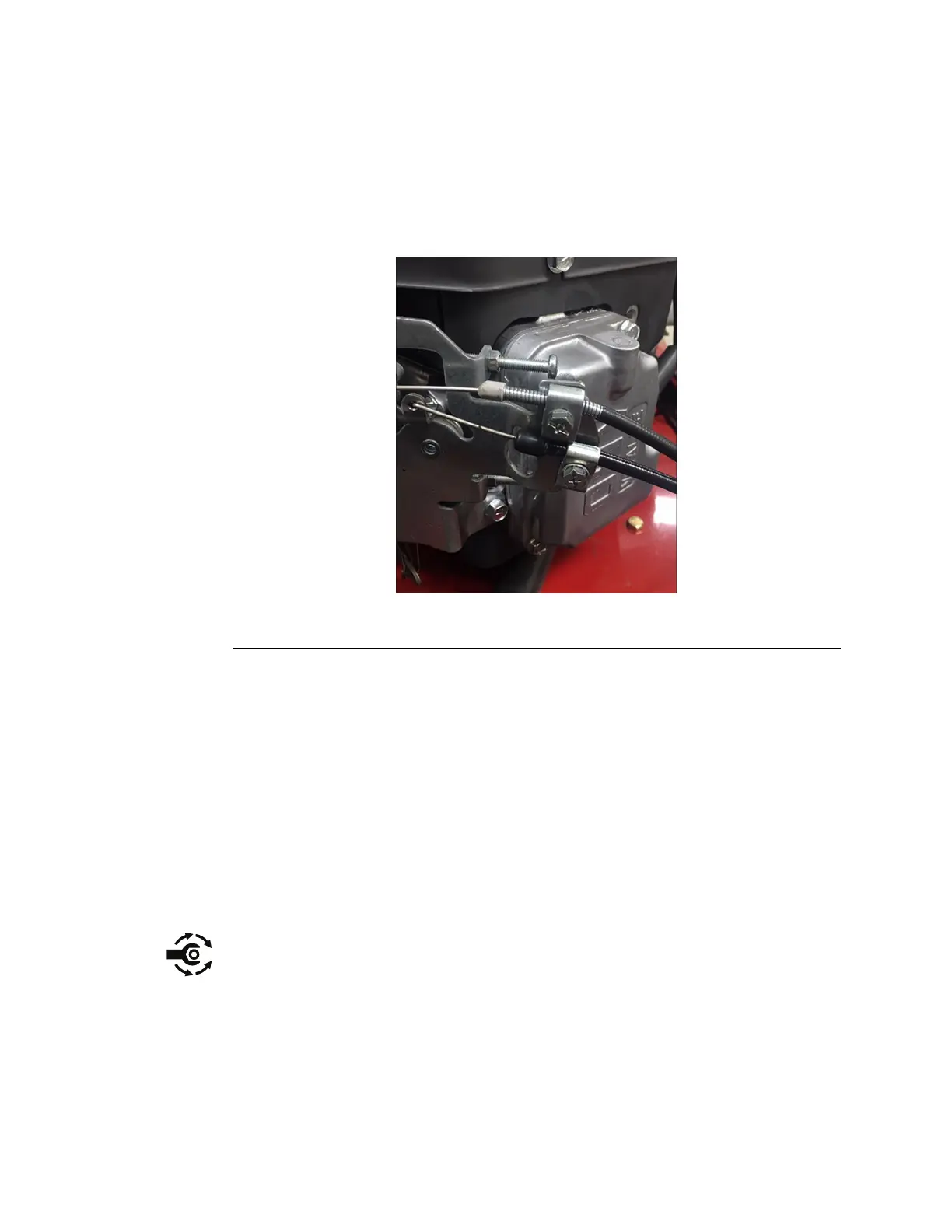

g311104
Figure75
4.Removethechokecablefromthechokeleverontheengine.
5.Cuttheziptiessecuringthechokecabletothethrottlecable.
6.Loosenthenutontheundersideofthecontroltowertothechokecable.
7.Removethechokecablefromthecontroltower.
ChokeCableInstallation
1.Installthechokecabletothecontroltower.
2.Tightenthenutontheundersideofthecontroltowertothechokecable.
3.Installziptiessecuringthechokecabletothethrottlecable.
4.Installthechokecabletothechokeleverontheengine.
5.Tightentheboltsecuringthechokecabletotheenginechokemount.Torque
boltto6N•m(52in-lb).
Controls:ServiceandRepairs
Page6–14
PROLINE®ServiceManual
3431-988RevA
