Toro PROLINE 44409 - Park Brake Installation

ParkBrakeRemoval(continued)

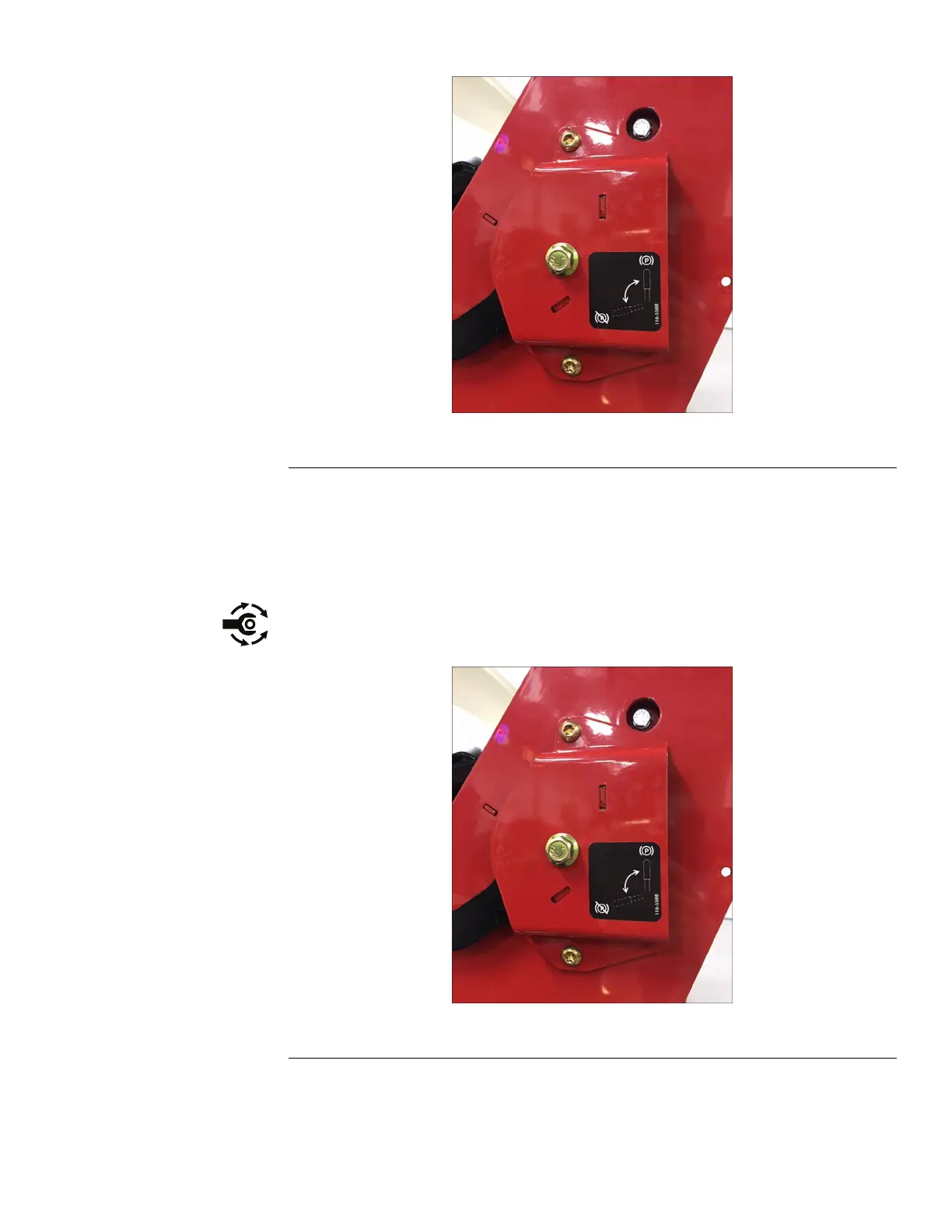

g311222
Figure69
11.Rotatetheparkingbrakearmtowardstheoperatorandremovefromthe
controltower.
ParkBrakeInstallation
1.Installtheparkingbrakearmontothecontroltower.
2.Installthe2torxboltssecuringtheparkingbrakearmtothesideofthe
controltower.Torqueboltsto18N•m(160±20in-lb).
g311222
Figure70
3.Installthetransmissioncablekeepertothetransmissionmount.Repeat
foroppositeside.
