ServiceandRepairs

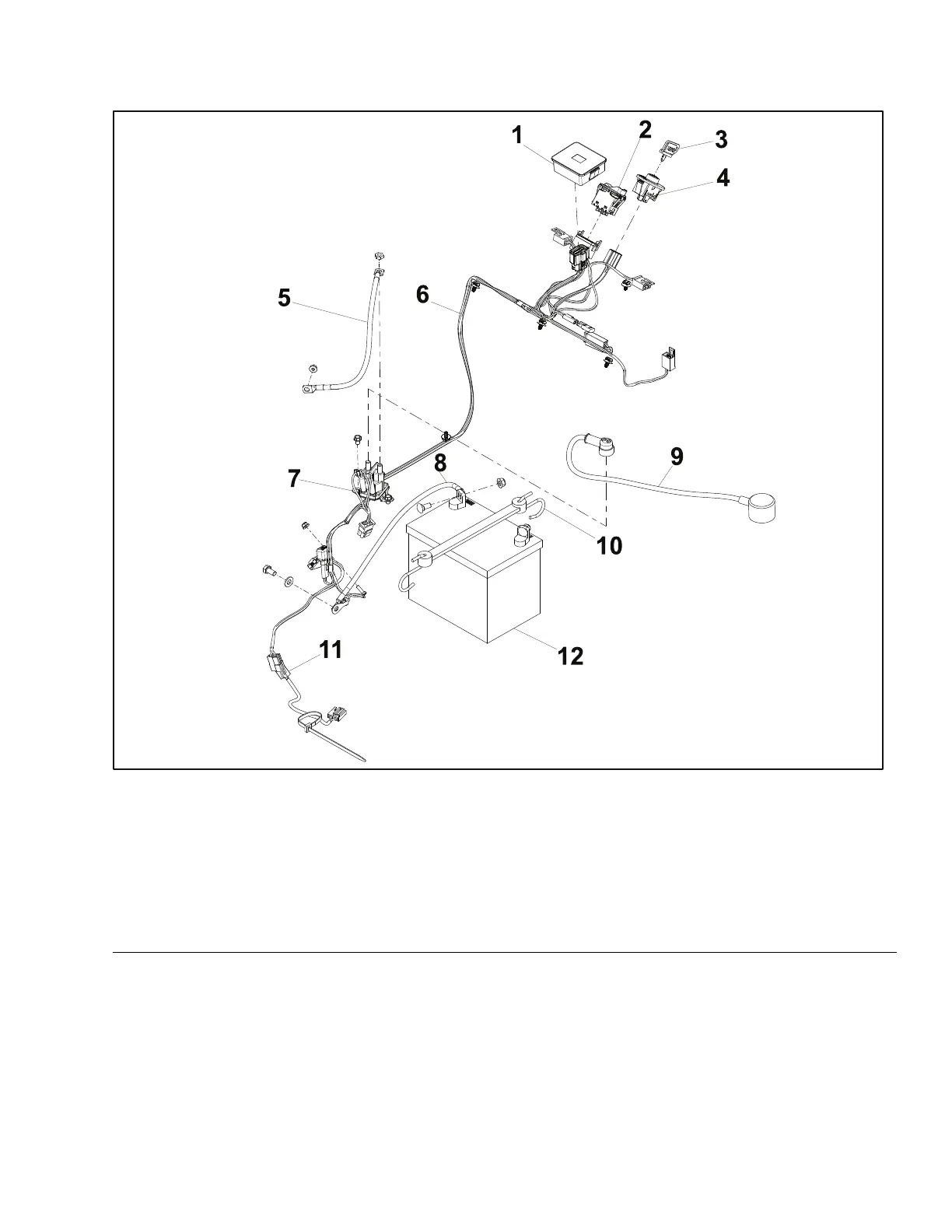

ElectricalAsm1(36,48,54,and60Inch)
g312496
Figure110
1.HourMeterModule
7.Solenoid
2.On-OffRockerSwitch8.NegativeBatteryCable
3.IgnitionKey
9.PositiveBatteryCable
4.IgnitionSwitch
10.BatteryHoldDown
5.PositiveBatteryCable11.PigtailClutchHarness
6.WireHarness12.Battery
PROLINE®ServiceManual
Page9–3
ElectricalSystem:ServiceandRepairs
3431-988RevA
