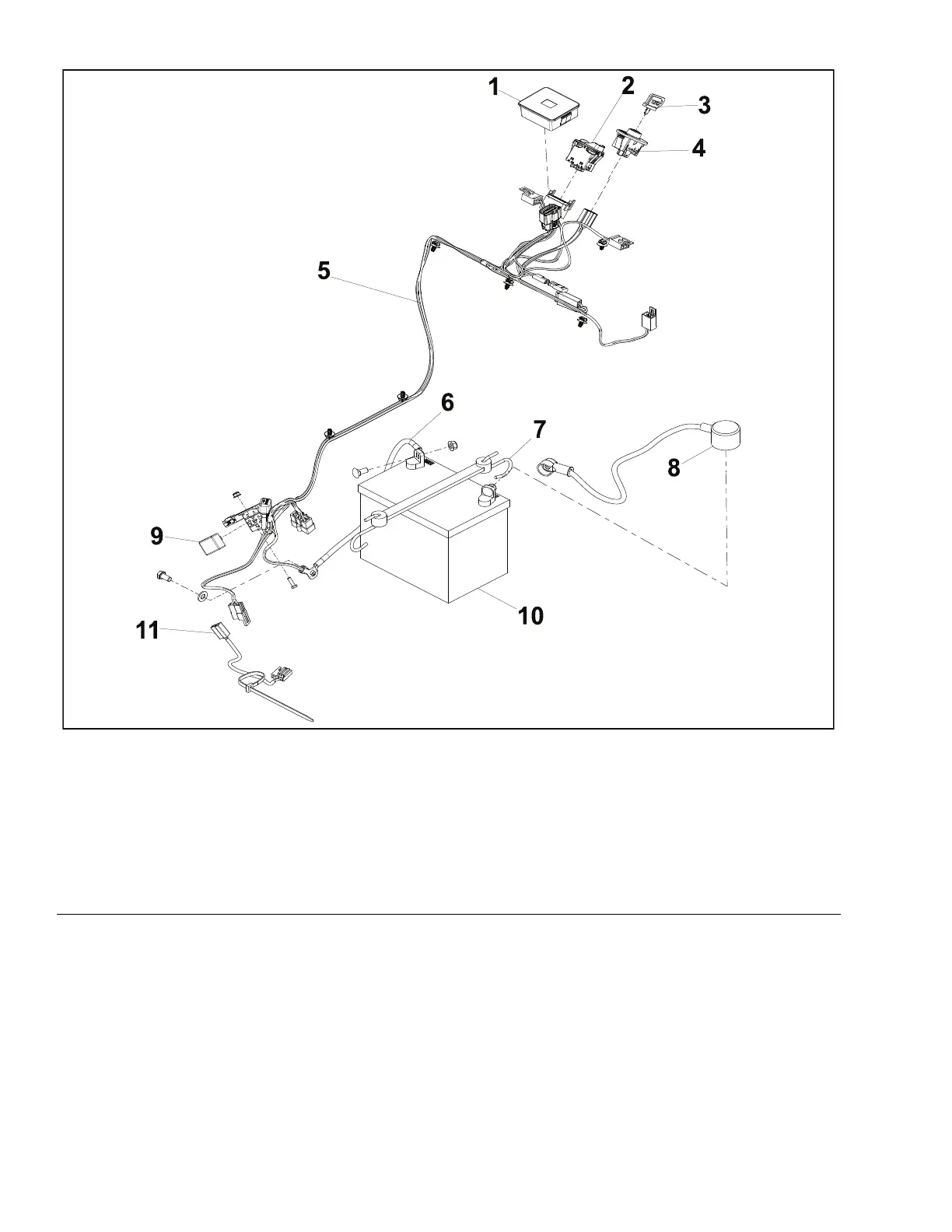

ElectricalAsm2(48and54InchPremium)
g312497
Figure111
1.HourMeterModule7.BatteryHold-Down
2.On-OffRockerSwitch8.PositiveBatteryCable
3.IgnitionKey9.Relay
4.IgnitionSwitch
10.Battery
5.WireHarness
11.PigtailClutchHarness
6.NegativeBatteryCable
ElectricalSystem:ServiceandRepairs
Page9–4
PROLINE®ServiceManual
3431-988RevA
