Toro PROLINE 44409 - Carbon Canister Replacement; Air Cleaner Replacement; Air Cleaner Removal

EngineInstallation(continued)
g320690

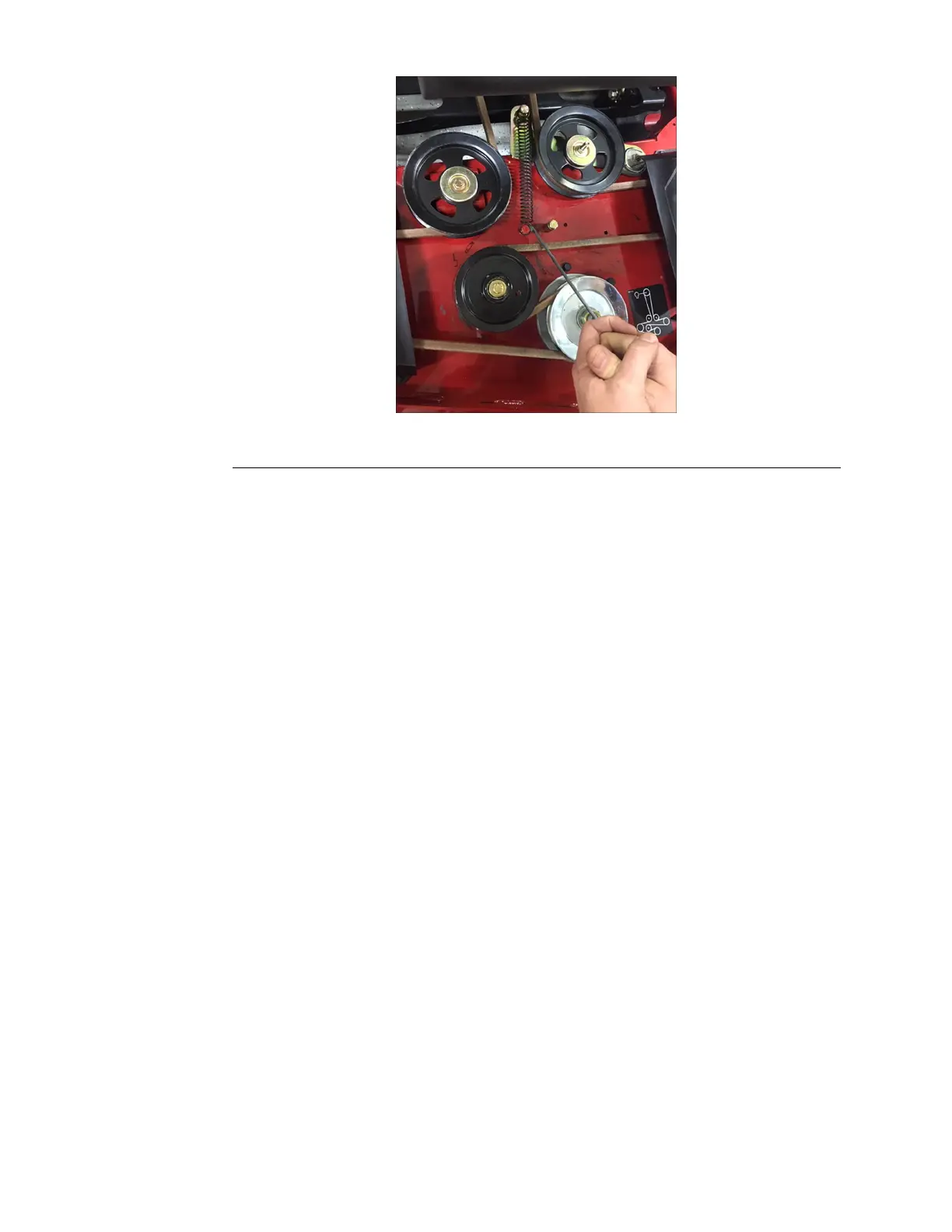

Figure27
18.Installthedeckguardtotheframe.Installthe2pull-downstrapstothe
deckguard.
19.Connectthepositivebatterycablerst,thenthenegativebatterycableto
thebattery.
CarbonCanisterReplacement
CarbonCanisterRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthefuelhosefromthetank.
3.Disconnecttheventhosefromtheengine.
4.Pushthecarboncanistertowardstheengineandslideawayfromthe
machine.
CarbonCanisterInstallation
1.Slidethecarboncanisterintopositionontothemachine.
2.Connecttheventhosetotheengine.
3.Connectthefuelhosetothetank.
AirCleanerReplacement
AirCleanerRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.
3.Loosenthewormclampfromtheintaketubetothetake.
Engine:ServiceandRepairs
Page4–18
PROLINE®ServiceManual
3431-988RevA
