ServiceandRepairs

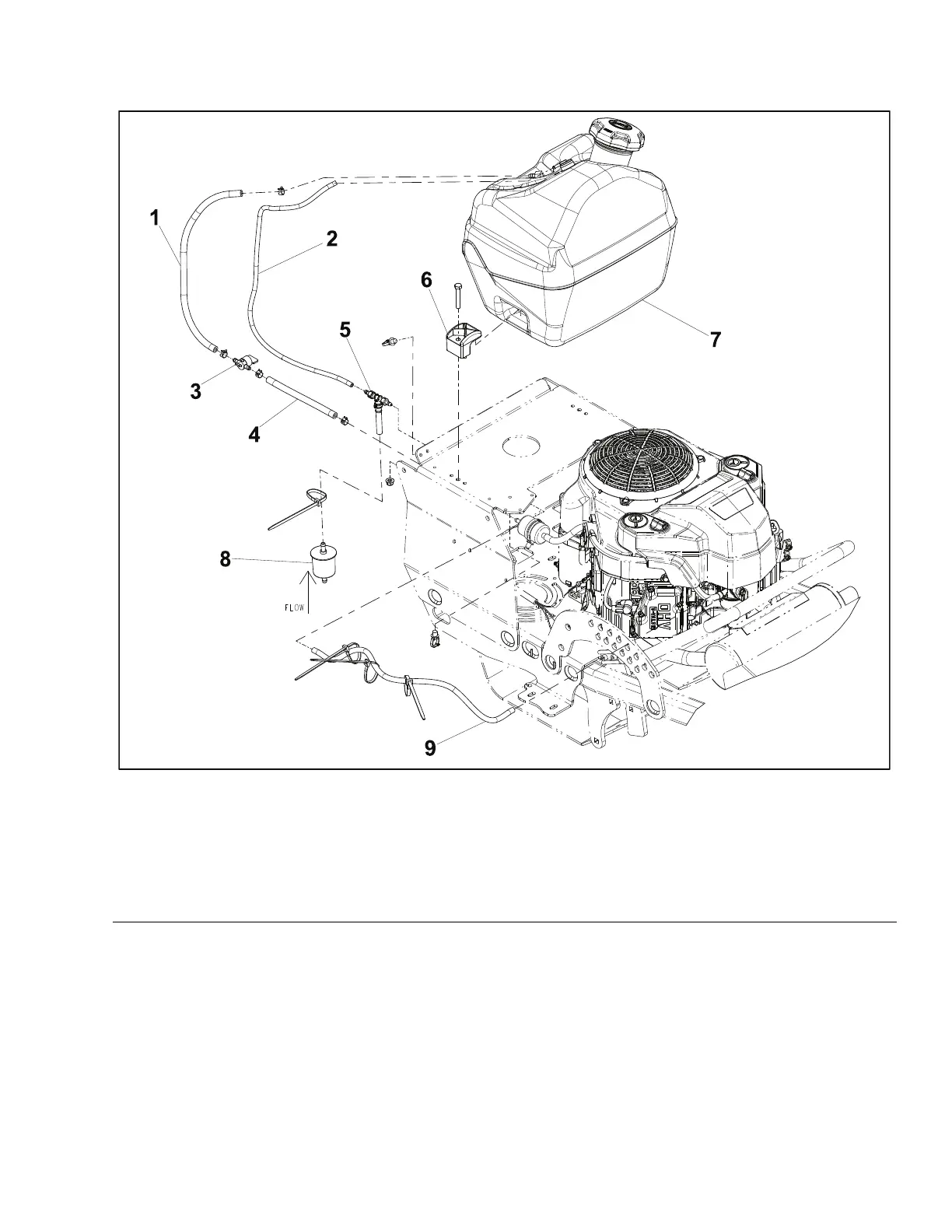

EngineAssembly1(36InchandInternationalModels)
g311924
Figure3
1.FuelHose
6.Clamp
2.EmissionsHose7.FuelT ankAsm
3.FuelValve8.FuelFilter
4.FuelHose9.FuelHose
5.T eeandCheck
PROLINE®ServiceManual
Page4–3
Engine:ServiceandRepairs
3431-988RevA
