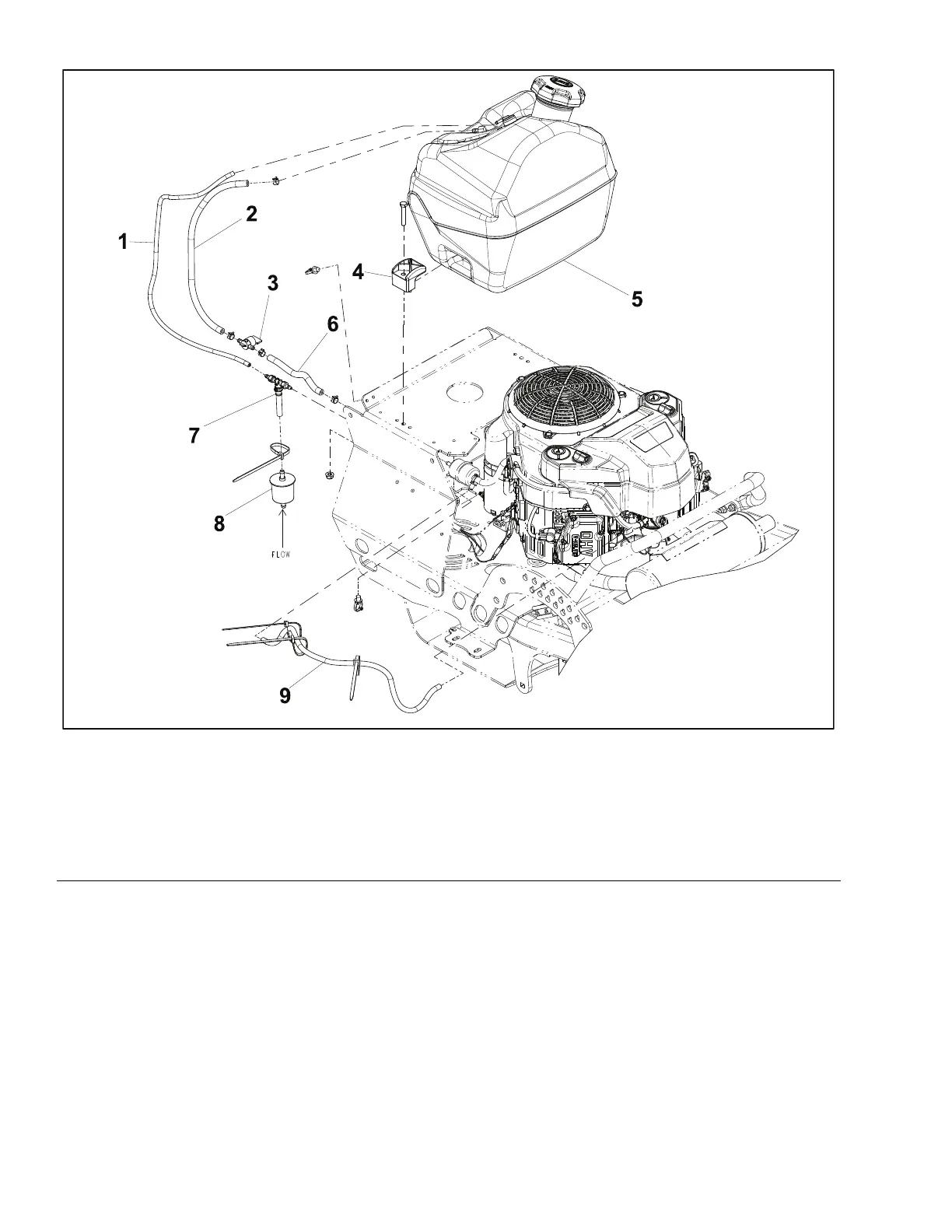

EngineAssembly2(48,54,and60InchStandard&48InchInternational)
g311925
Figure4
1.EmissionsHose6.FuelHose
2.FuelHose
7.T eeandCheck
3.FuelValve8.FuelFilter
4.Clamp
9.FuelHose
5.FuelT ankAsm
Engine:ServiceandRepairs
Page4–4
PROLINE®ServiceManual
3431-988RevA
