Toro PROLINE 44409 - Transmission Replacement; Transmission Removal

TransmissionReplacement
TransmissionRemoval
1.Parkthemachineonalevelsurfaceandsettheparkingbrake.Stopthe
engine,waitforallmovingpartstostopandremovethekey.
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.
3.Removethedrivebeltfromthedrivepulley.
4.Usingappropriateliftingequipment,raiseandsupporttherearofthe

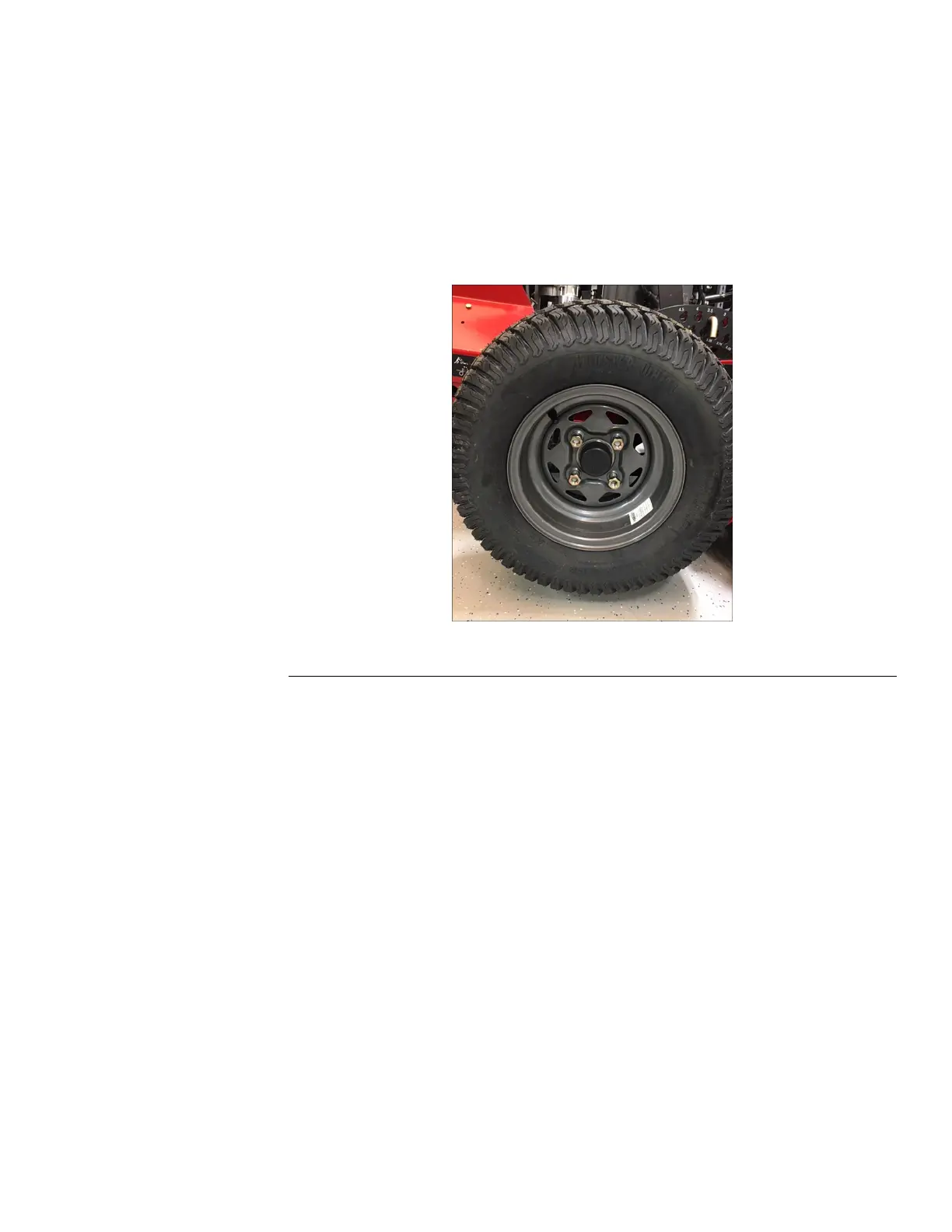

machine.Loosen,thenremovethe4lugnutsonthewheel.
g312499
Figure95
5.Usinganappropriateliftingdevice,raisetherearofthemachineofftheoor.
6.Removethewheelfromthemachine.
7.Releasetheparkingbraketorelievetensionoffthebrakearm.
8.Removethecotterpinfromtheclevispinonthebrakearm.
9.Removethecotterpinsecuringthebypassarmtothetransmission.Remove
thebypassarm.
10.Removethe2boltssecuringthetransmissionguardtotheframe.Remove
thetransmissionguard.
PROLINE®ServiceManual
Page8–5
DriveSystem:ServiceandRepairs
3431-988RevA
