TransmissionRemoval(continued)
g312500

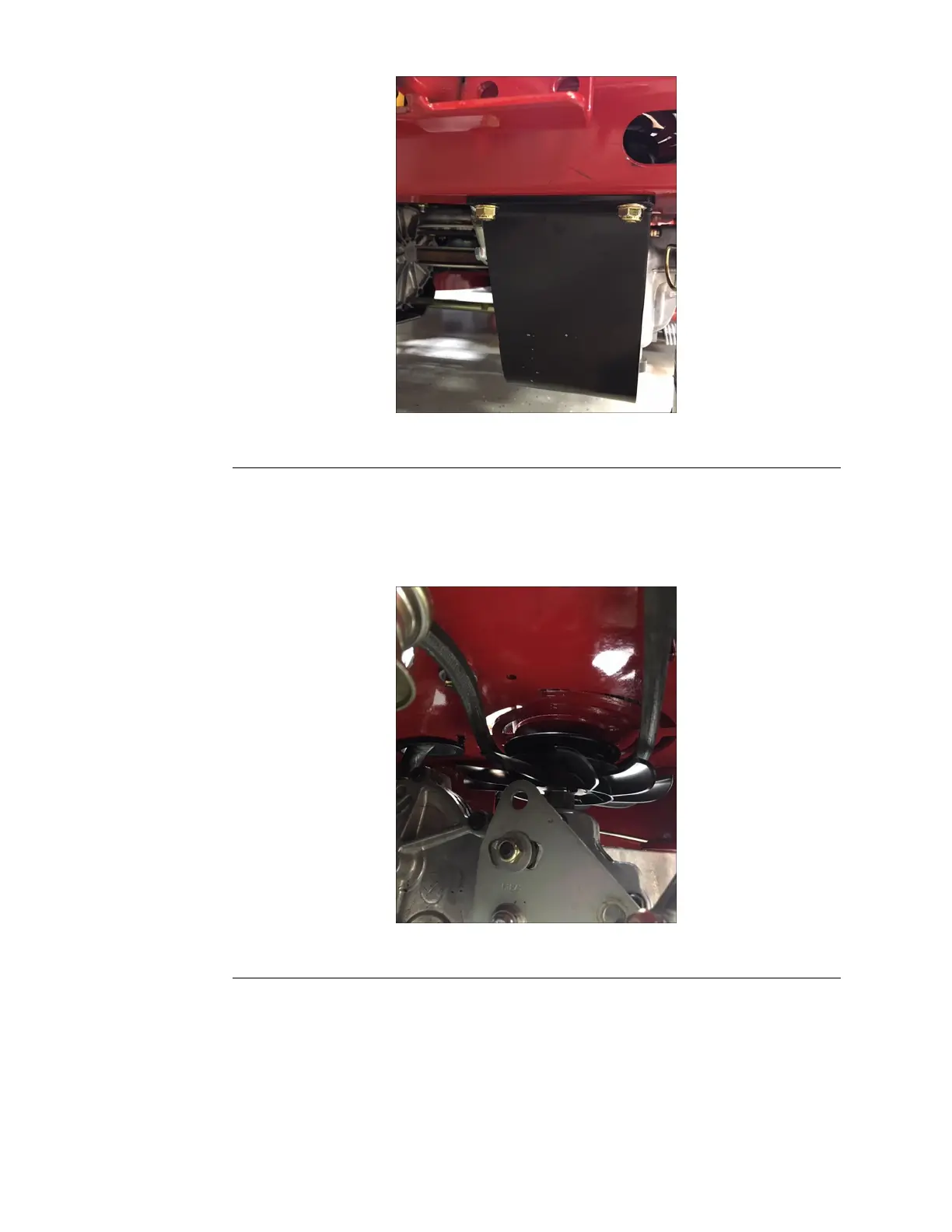

Figure96
11.Installa5/6inchnuttolockthehydroleverinneutralposition.
12.Removetheboltandnutsecuringthemotioncontrolrodtotheleveronthe
hydro.Removethemotioncontrolrodfromtheleveronthehydro.
13.Removethedrivebeltfromthefanpulleyontheinputshaft.
g312501
Figure97
14.Loosenthe4mountingboltssecuringthetransmissiontotheframe.
DriveSystem:ServiceandRepairs
Page8–6
PROLINE®ServiceManual
3431-988RevA
