Toro PROLINE 44409

To Next Page

To Previous Page

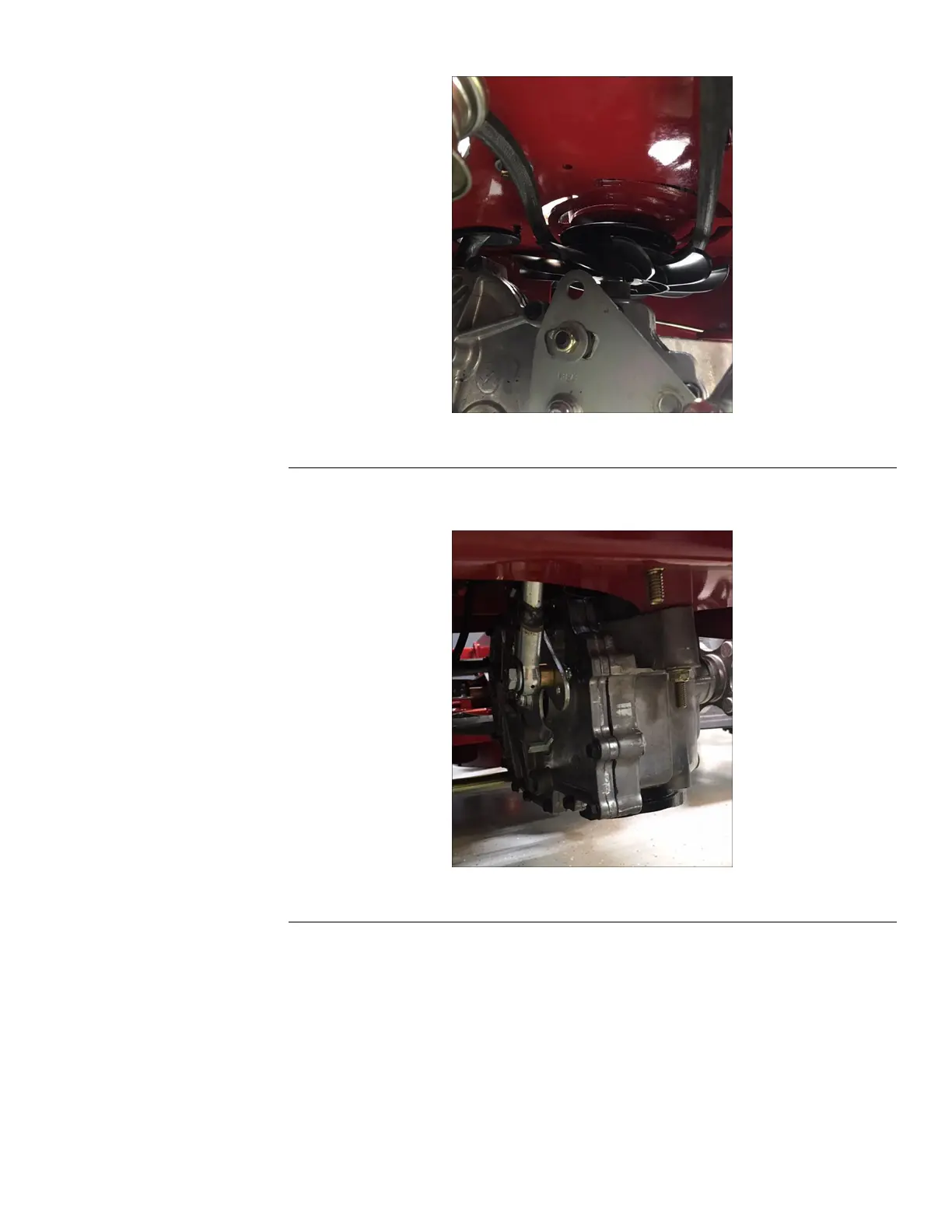

TransmissionInstallation(continued)

g312501

Figure101

5.Installthemotioncontrolrodtotheleveronthehydro.Installtheboltandnut

securingthemotioncontrolrodtotheleveronthehydro.

g312506

Figure102

6.Installthebypassarm.Installthecotterpinsecuringthebypassarmtothe

transmission.

7.Installthetransmissionguardtothecontroltower.Installthe2boltssecuring

thetransmissionguardtothecontroltower.

PROLINE®ServiceManual

Page8–9

DriveSystem:ServiceandRepairs

3431-988RevA
