HourMeterRemoval(continued)
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.

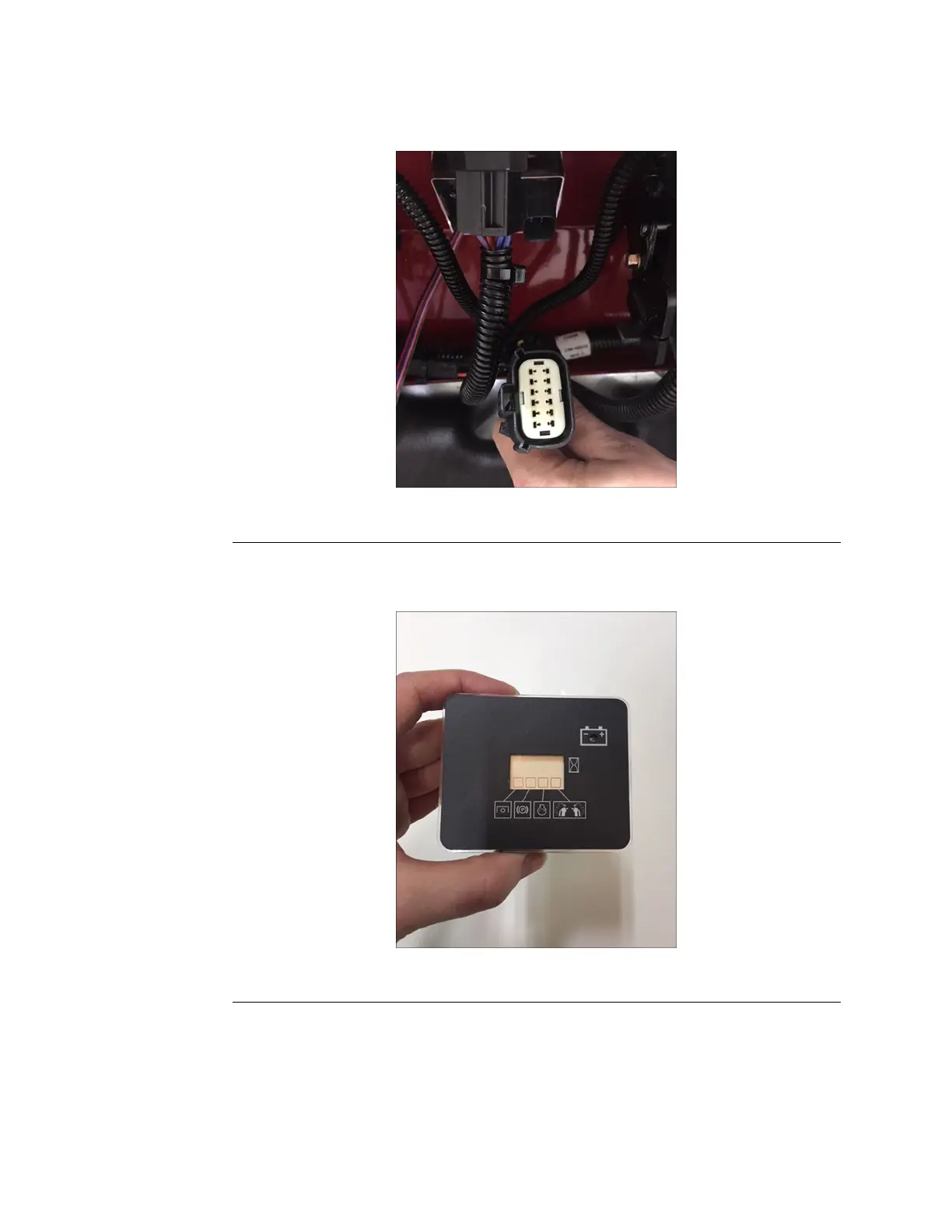

3.Disconnectthemainwireharnessfromthehourmeter.
g312507
Figure112
4.Pressthetabsonthehourmeterinward.
5.Removethehourmeter.
g312508
Figure113
HourMeterInstallation
1.Placethehourmeterontothemachine.
2.Connectthemainwireharnesstothehourmeter.
ElectricalSystem:ServiceandRepairs
Page9–6
PROLINE®ServiceManual
3431-988RevA
