MuferRemoval(continued)
2.Disconnectthebatterybyremovingthenegativebatterycablerst,then
thepositivecablefromthebattery.

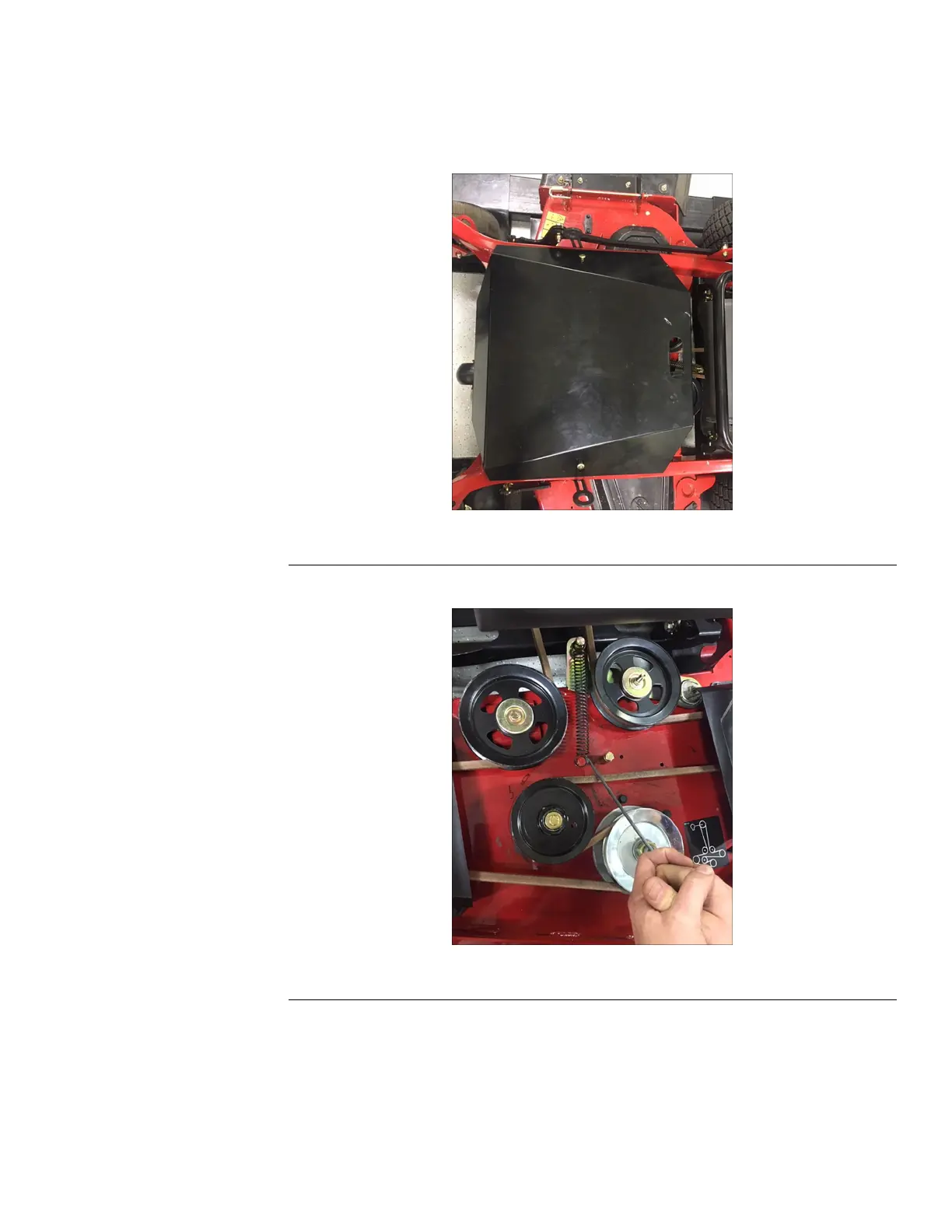

3.Removethe2pull-downstrapsfromthedeckguard.Removethedeck
guardfromtheframe.
g310218
Figure32
4.Removethespringfromthedeckidler.
g320690
Figure33
5.RemovethedeckbeltfromthePTOclutch.
PROLINE®ServiceManual
Page4–21
Engine:ServiceandRepairs
3431-988RevA
