MuferRemoval(continued)

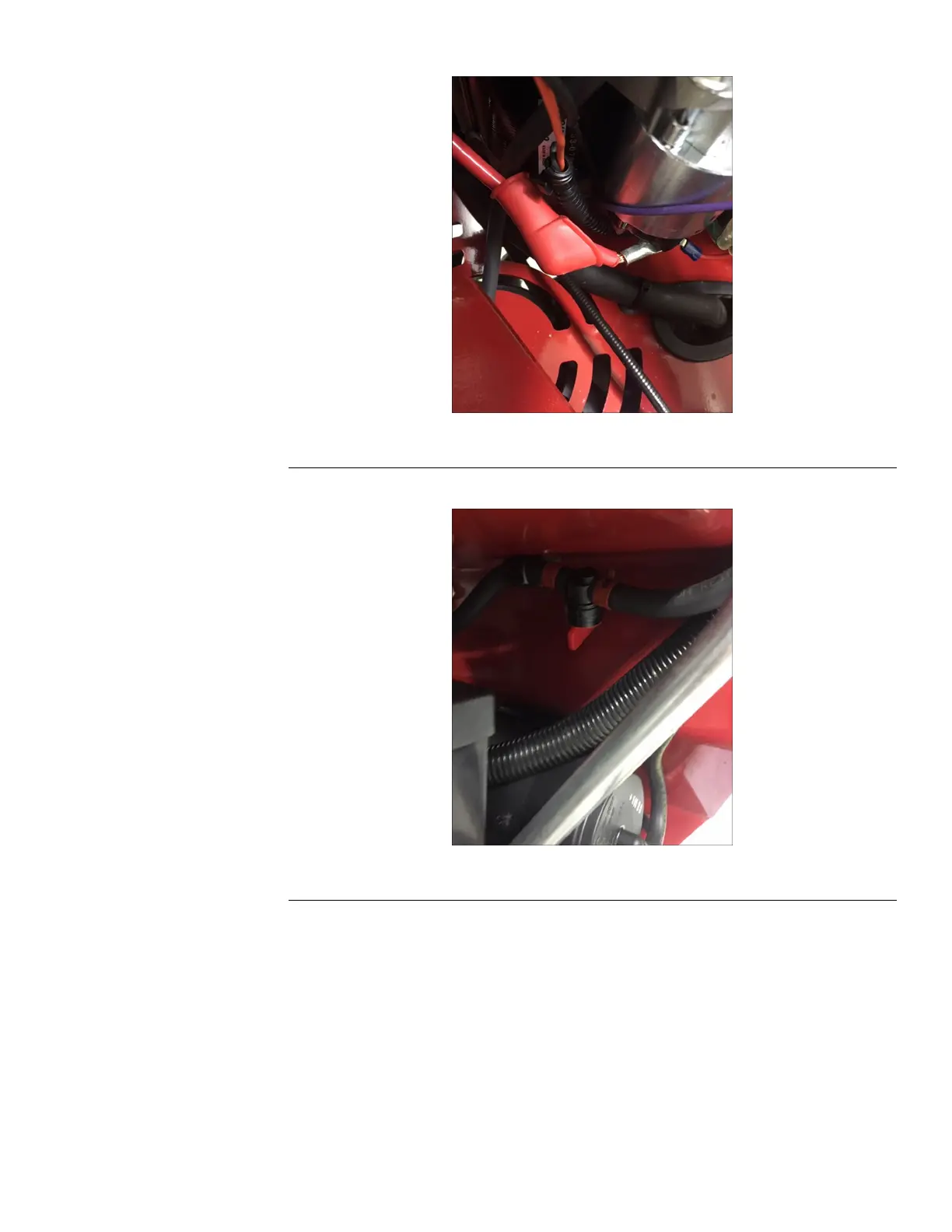

g311098

Figure36

8.Removethegroundbatterycabletotheengineground.

g311099

Figure37

9.Cutthe2ziptiessecuringtheventhose,carboncanisterhose,andfuel

supplyhose.Loosenthehoseclamponthefuelsupplyhose.Removethe

fuelsupplyhosefromthefuelpump.

10.Cutthe2ziptiessecuringtheventhoseandfuelhosegoingtothe

carburetor.Removetheventhosefromtheenginetake.

11.Disconnectthethrottleandchokelinkages.

PROLINE®ServiceManual

Page4–23

Engine:ServiceandRepairs

3431-988RevA
