Workman MDX--DPage 6 -- 8Chassis
Adjustments
Adjust Parking Brake
1. Pry the rubber cover off of the parking brake.
2. Loosen the set screw securing the knob to the park-
ing brake lever (Fig. 3).
3. Rotate the knob until a force from 30 to 35 lb. (133 to
156N)isrequiredtoactuatethelever.
4. Tighten the set screw and install the rubber cover.

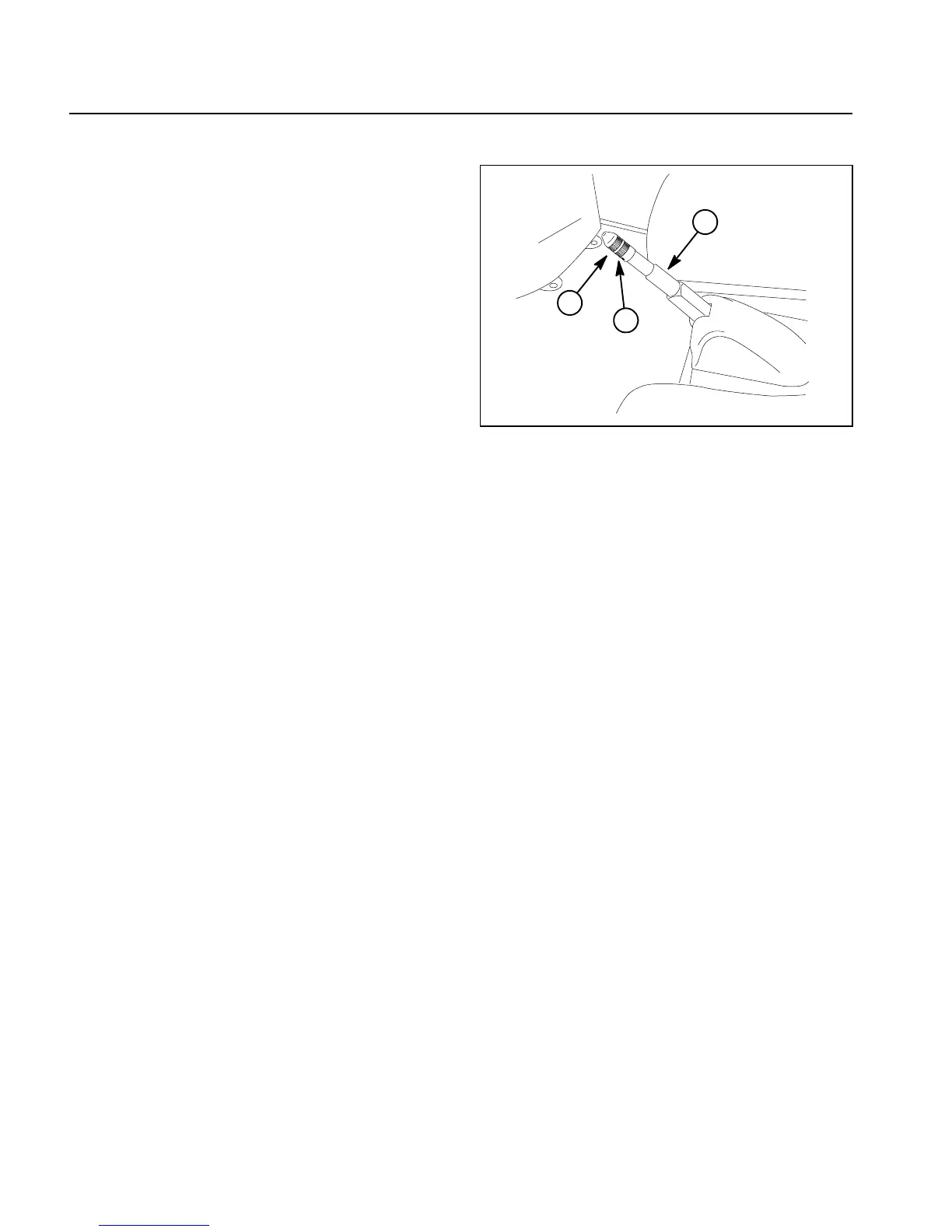

1. Parking brake lever
2. Brake knob
3. Set screw
Figure 3
3
2
1
