Toro Workman MDX-D Service Manual

Workman MDX--DPage 4 -- 16Drive Train

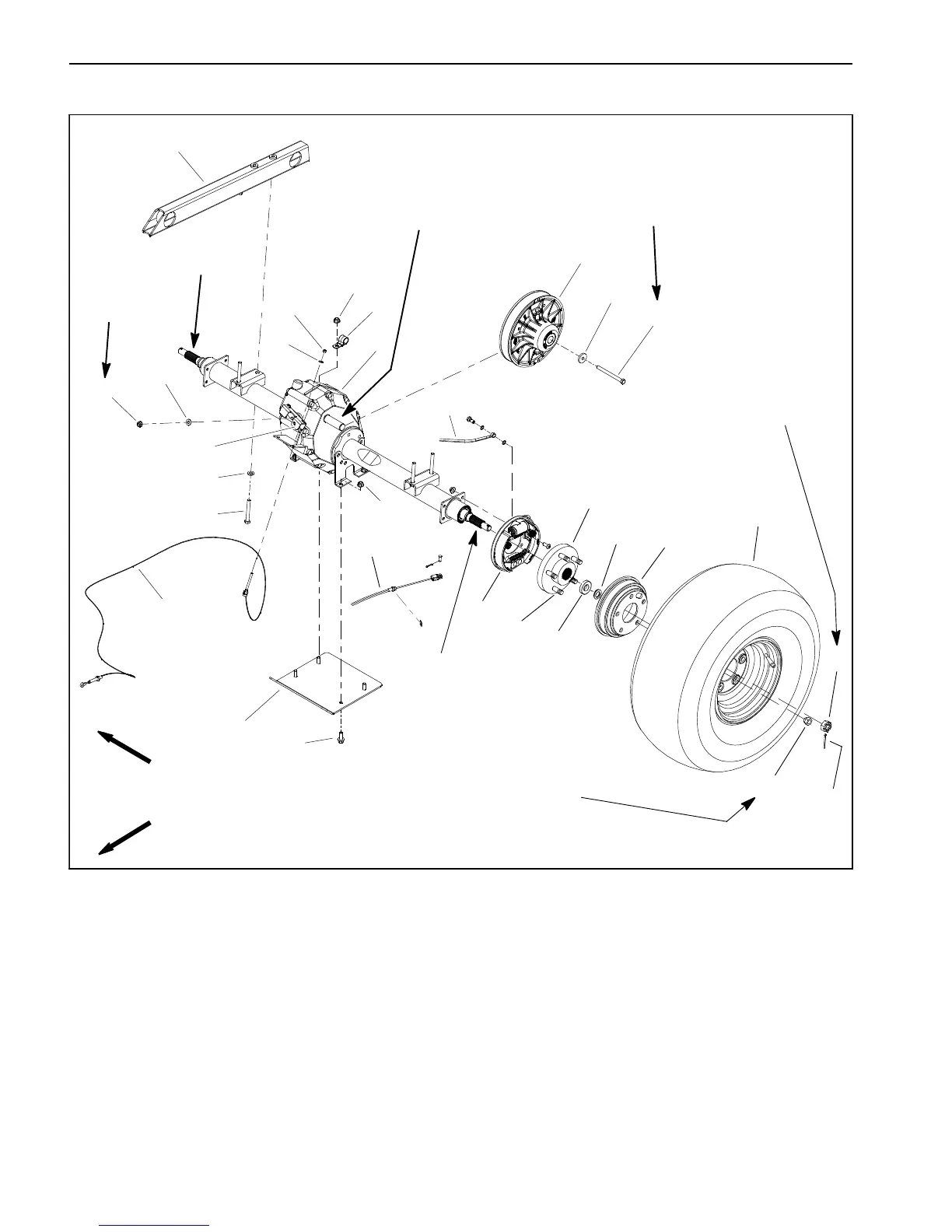

Transaxle
1. Transaxle assembly
2. Driven clutch
3. Parking brake cable (2 used)
4. Shift cable (2 used)
5. Hardened washer (4 used)
6. Stepped washer
7. Flange nut (4 used)
8. Cap screw
9. Brake drum (2 used)
10. Cap screw (4 used)
11. Cap screw (4 used)
12. Flat washer (2 used)
13. Swing arm
14. Lock nut (2 used)
15. Flat washer
16. Skid plate
17. R--clamp
18. Lock nut
19. W asher (2 used)
20. Spring washer (2 used)
21. Slotted hex nut (2 used)
22. Cotter pin (2 used)
23. Select lever
24. Wheel hub (2 used)
25. Wheel stud (5 used per hub)
26. Brake assembly (LH shown)
27. Rear brake line
28. Rear wheel assembly (2 used)
29. Lug nut (5 used per wheel)
Figure 15
v
FRONT
RIGHT
39 to 47 ft--lb
(53to63N--m)
21
22
15
5
23
6
4
7
8
16
10
11
19
20
12
14
18
17
2
7
13
1
9
24
25
26
27
28
29
3
Antiseize
Lubricant
120 ft--lb
(162 N--m)
Antiseize
Lubricant
Antiseize
Lubricant
80 to 90 ft--lb
(109 to 122 N--m)
Loctite #242
