Toro Workman MDX-D Service Manual

Workman MDX--DPage 3 -- 12Diesel Engine
Radiator

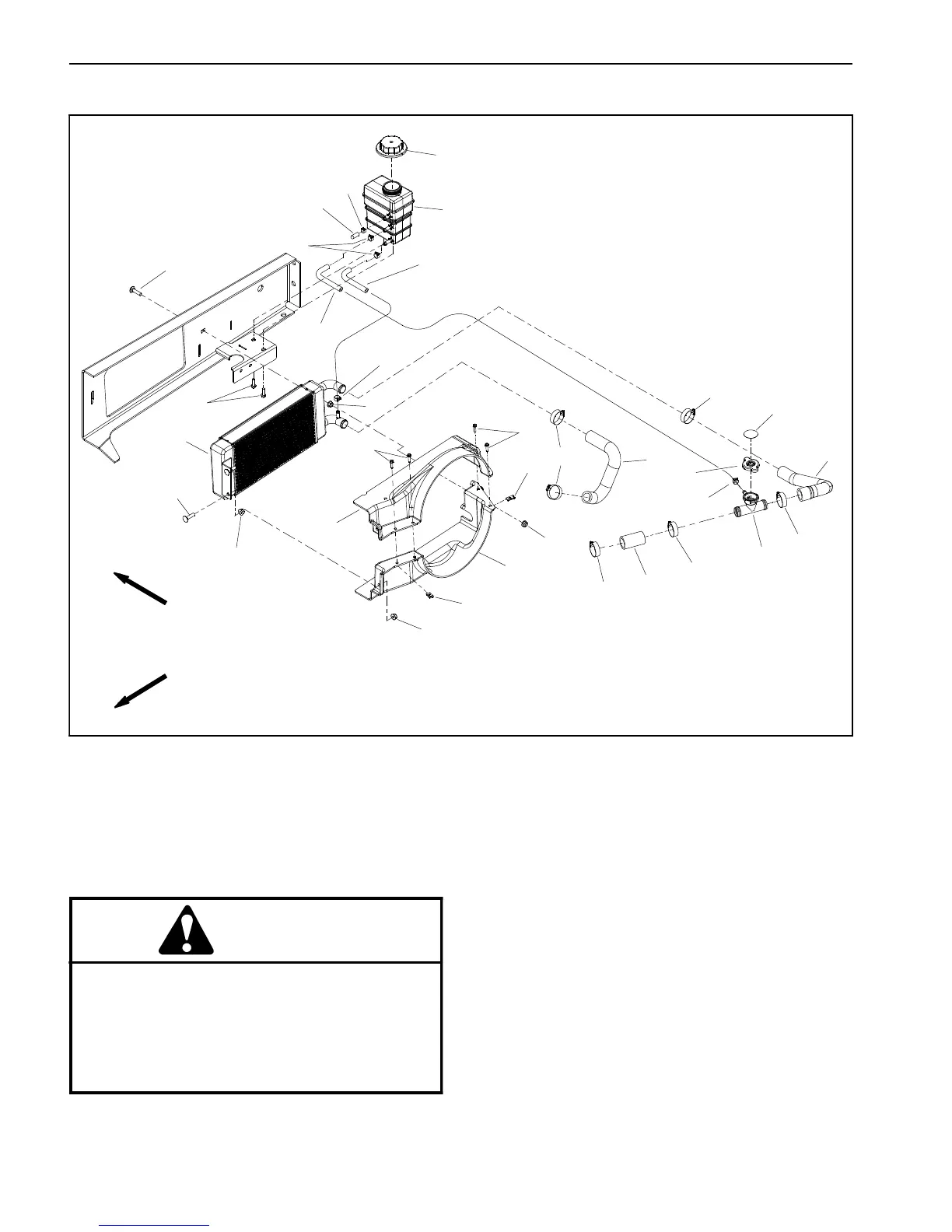

Figure 9
1. Surge tank
2. Tank cap
3. Radiator
4. Washer head screw (2 used)
5. Flange nut (3 used)
6. Cap
7. Cap decal
8. Filler neck
9. Lower radiator hose
10. Upper radiator hose
11. Straight hose
12. Hose clamp (6 used)
13. Carriage screw (3 used)
14. Flange nut (3 used)
15. Cap
16. Hose clamp
17. Lower radiator shroud
18. Upper radiator shroud
19. Speed nut (4 used)
20. Washer head screw (4 used)
21. Coolant hose
22. Coolant hose
23. Hose clamp (4 used)
FRONT
RIGHT
19
22
21
5
8
9
10
11
12
13
14
5
18
19
20
6
7
13
20
12
12
12
23
12
23
17
14
1
2
15
16
4
23
3
CAUTION
DO NOT open radiator c ap or drain coolant if the
engine or radiator is hot. Pressurized hot coolant
can escape and cause burns.
Ethylene--glycol antifreeze is poisonous. Dis -
pose of it properly or store it in a properly labeled
container away from children and pets.
Radiator Removal (Fig. 9)
1. Park machine on a level surface, stop the engine, en-
gage parking brake and remove the key from the ignition
switch.
2. Raise and support cargo bed to access radiator.
3. Remove knob that secures radiator screen to right
side of rear frame (Fig. 10). Lift screen to separate tabs
on screen from slots in frame and then remove screen
from vehicle.
