Workman MDX--DPage 6 -- 46Chassis
Cargo Box

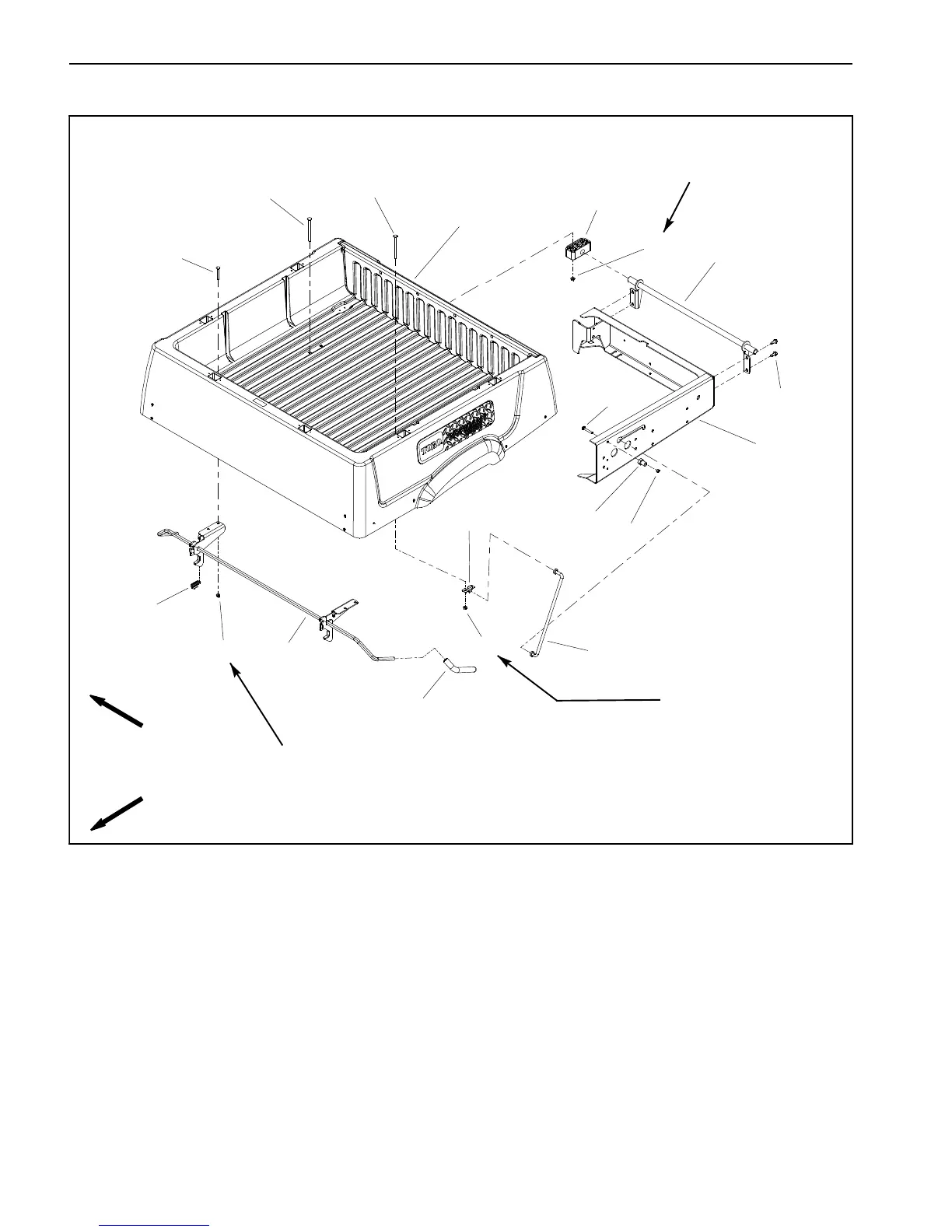

Figure 36
1
17
6
7
2
14
3
11
16
12
10
8
5
13
15
9
4
12
190 to 210 in--lb
(21.5 to 23.7 N--m)
190 to 210 in--lb
(21.5 to 23.7 N--m)
1. Cargo box
2. Handle
3. Latch pin (2 used)
4. Lock nut (2 used)
5. Carriage screw (4 used)
6. Pivot bracket
7. Pivot bushing (2 used)
8. Screw (4 used)
9. Carriage screw (4 used)
10. Flange nut (4 used)
11. Prop rod
12. Flange nut (6 used)
13. Carriage screw (2 used)
14. Tension spring (2 used)
15. Carriage screw (2 used)
16. Prop rod bracket
17. Latch assembly
18. Rear frame
190 to 210 in--lb
(21.5to23.7N--m)
FRONT
RIGHT
18
