Workman MDX--D Page 6 -- 47 Chassis
Removal (Fig. 36)
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the ignition switch.
2. Disassemble cargo box as necessary using Figures
36 and 37 as guides.
Installation (Fig. 36)
1. Assemble cargo box using Figures 36 and 37 as gui-
des.
A. When installing cargo box, use torque specifica-
tions identified in Figure 36.
B. When installing tailgate latches, use torque spe-
cifications identified in Figure 37.
C. Adjust latch pin (item 3 in Figure 36) so that cargo
box is tight to frame when latched.

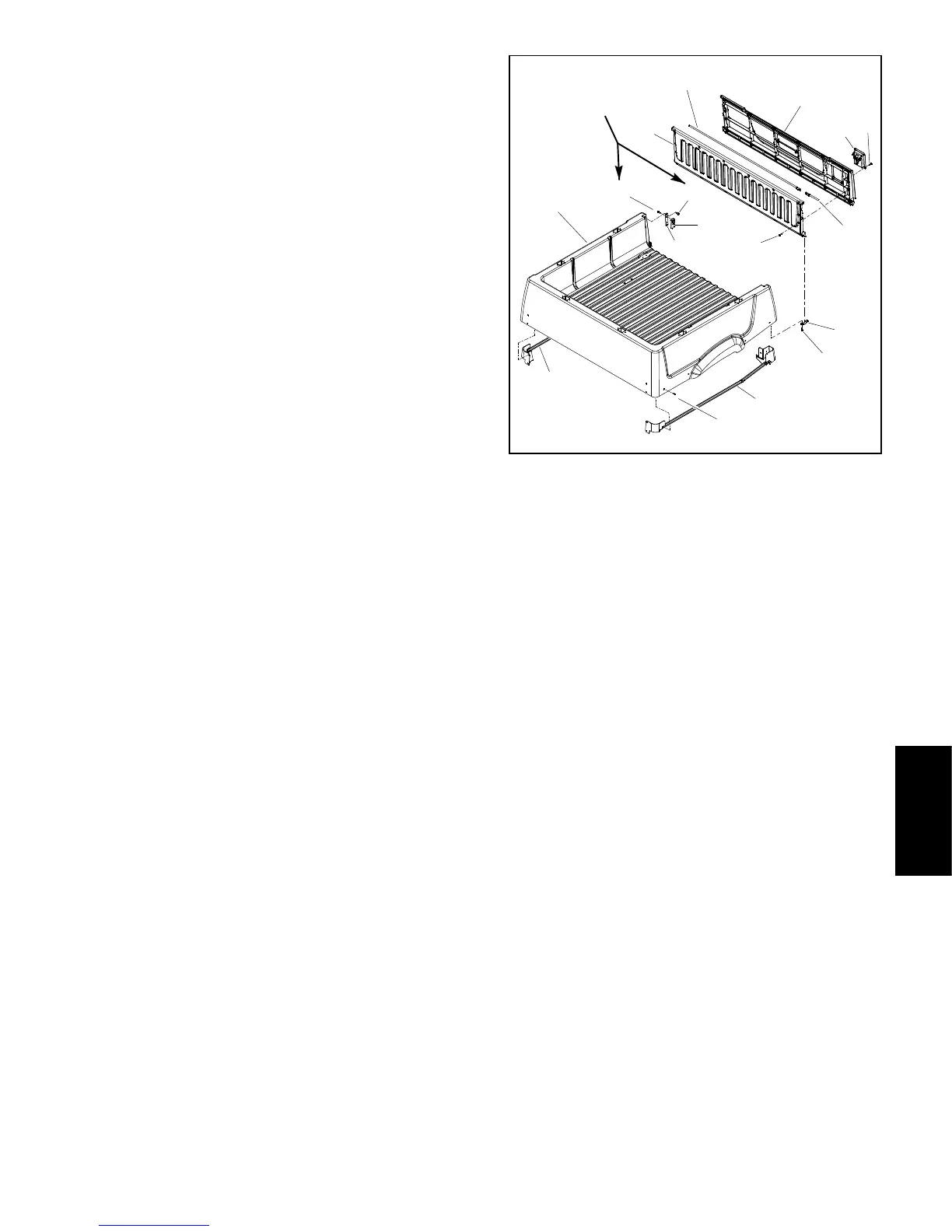

1. Cargo box
2. Inner tailgate
3. Outer tailgate
4. RH latch rod
5. Latch handle
6. Screw (24 used)
7. LH latch rod
8. Retainer (2 used)
9. Striker mount (2 used)
10. Strike latch (2 used)
11. Screw (4 used)
12. Screw (4 used)
13. RH inside support
14. LH inside support
15. Pop rivet (18 used)
Figure 37
2
3
6
8
9
10
11
1
5
7
12
4
6
6
14
13
15
45 to 55 in--lb
(5.1 to 6.2 N--m)
Chassis
