Toro Workman MDX-D Service Manual

Workman MDX--DPage 6 -- 34Chassis

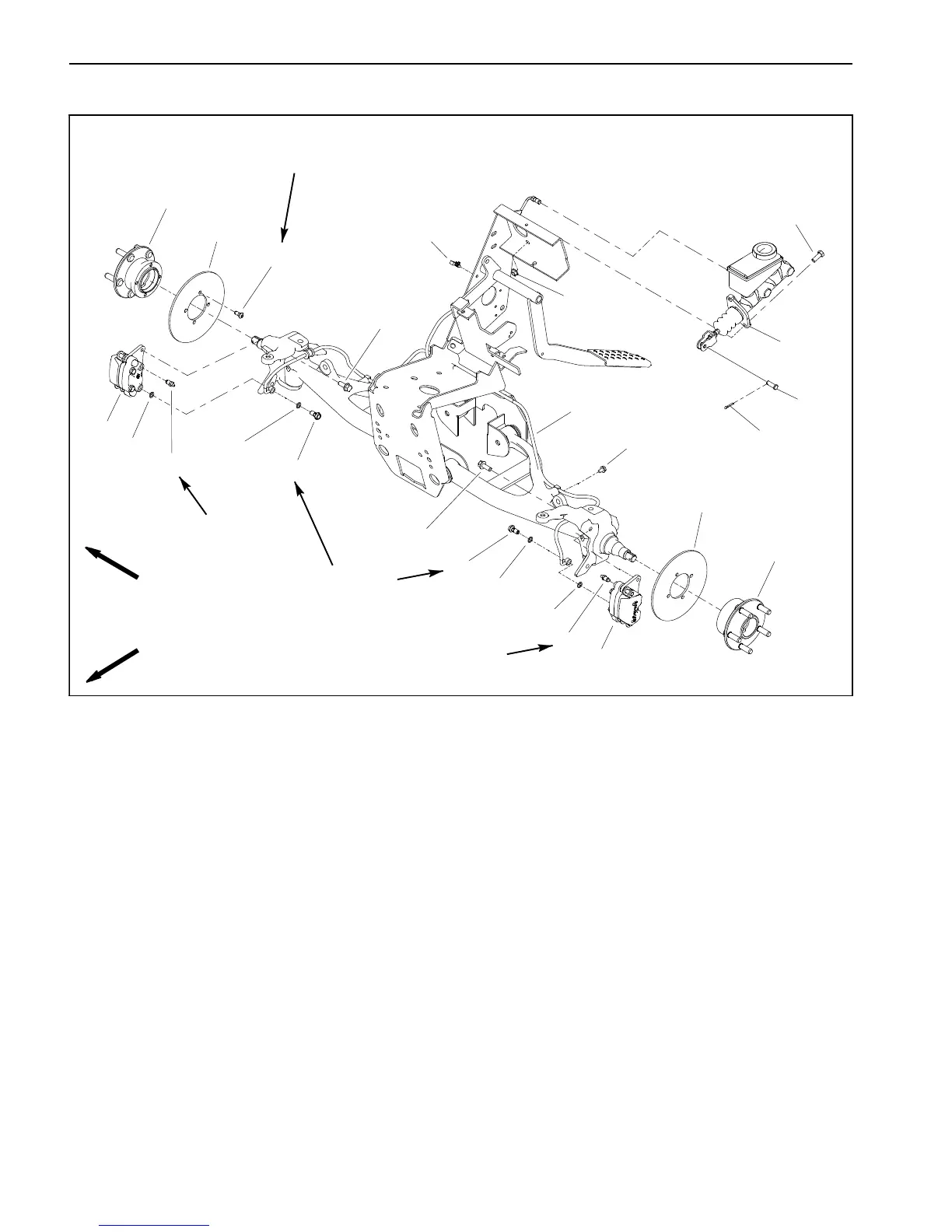

Front Brake Calipers
1. Brake master cylinder
2. Brake caliper (2 used)
3. Bleed screw
4. Brake rotor (2 used)
5. Front brake line
6. Brake line clip (4 used)
7. Clevis pin
8. Cotter pin
9. Cap screw (2 used)
10. Flange nut (2 used)
11. Flange screw (2 used)
12. Flange screw (2 per caliper)
13. Banjo bolt (2 used)
14. Banjo washer (4 used)
15. Socket head screw (4 per rotor)
16. Wheel hub assembly
Figure 27
FRONT
RIGHT
14
3
1
2
2
4
6
7
8
9
10
11
12
5
3
15
12
14
14
13
14
13
16
16
9 to 11 ft--lb
(13 to 14 N--m)
4
54 to 66 in--lb
(6.2 to 7.4 N--m)
108 to 132 in--lb
(12.3 to 14.9 N--m)
54 to 66 in--lb
(6.2 to 7.4 N--m)
