Toro Workman MDX-D Service Manual

Workman MDX--DPage 6 -- 12Chassis

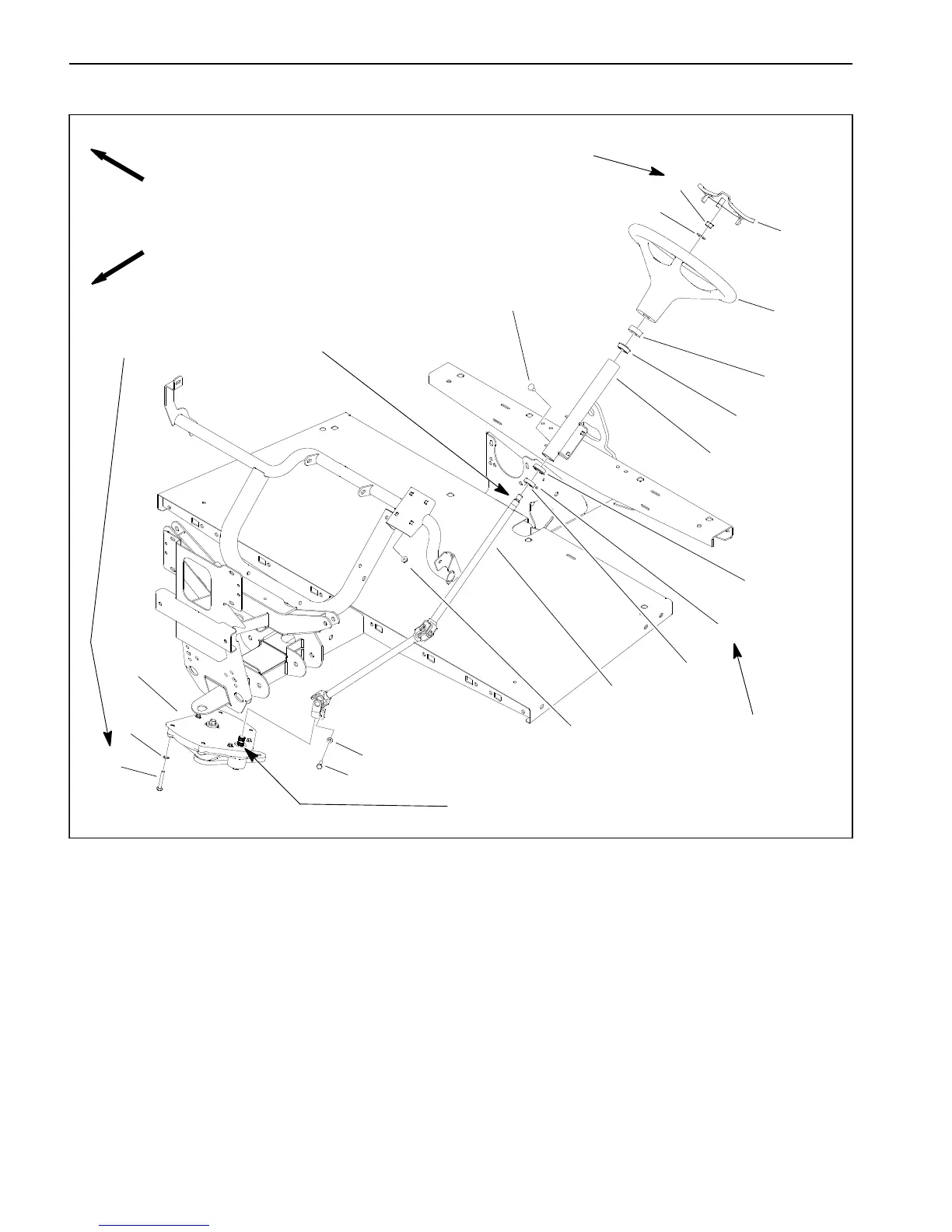

Upper Steering
1. Hex nut
2. Flat washer
3. Steering wheel
4. Flange nut (4 used)
5. Steering box assembly
6. Cap screw
7. Lock washer (6 used)
8. Steering shaft
9. Cap screw (4 used)
10. Bearing (2 used)
11. Carriagebolt(4used)
12. Steering column
13. Dust cover
14. Collar
15. Set screw
16. Steering wheel cover
Figure 8
FRONT
RIGHT
Antiseize
Lubricant
18 to 22 ft--lb
(25to29N--m)
3
10
10
11
14
4
13
8
7
5
9
12
7
6
2
1
16
15
Loctite #242
175 to 225 in--lb
(20to25N--m)
Antiseize
Lubricant
Disassembly (Fig. 8)
1. Park machine on a level surface, stop engine, set
parking brake and remove key from the ignition switch.
2. Raise front hood to gain access to the s teering com-
ponents.
3. Carefully remove steering wheel cover from the
steering wheel. Remove nut and flat washer securing
the steering wheel to the steering shaft. Pull steering
wheel from the shaft.
4. Remove cap screw and lock washer securing the
lower steering shaft knuckle to the steering gearbox in-
put shaft. Pull knuckle from the gearbox shaft.
