Toro Workman MDX-D Service Manual

Workman MDX--DPage 3 -- 6Diesel Engine
Service and Repairs
Air Cleaner

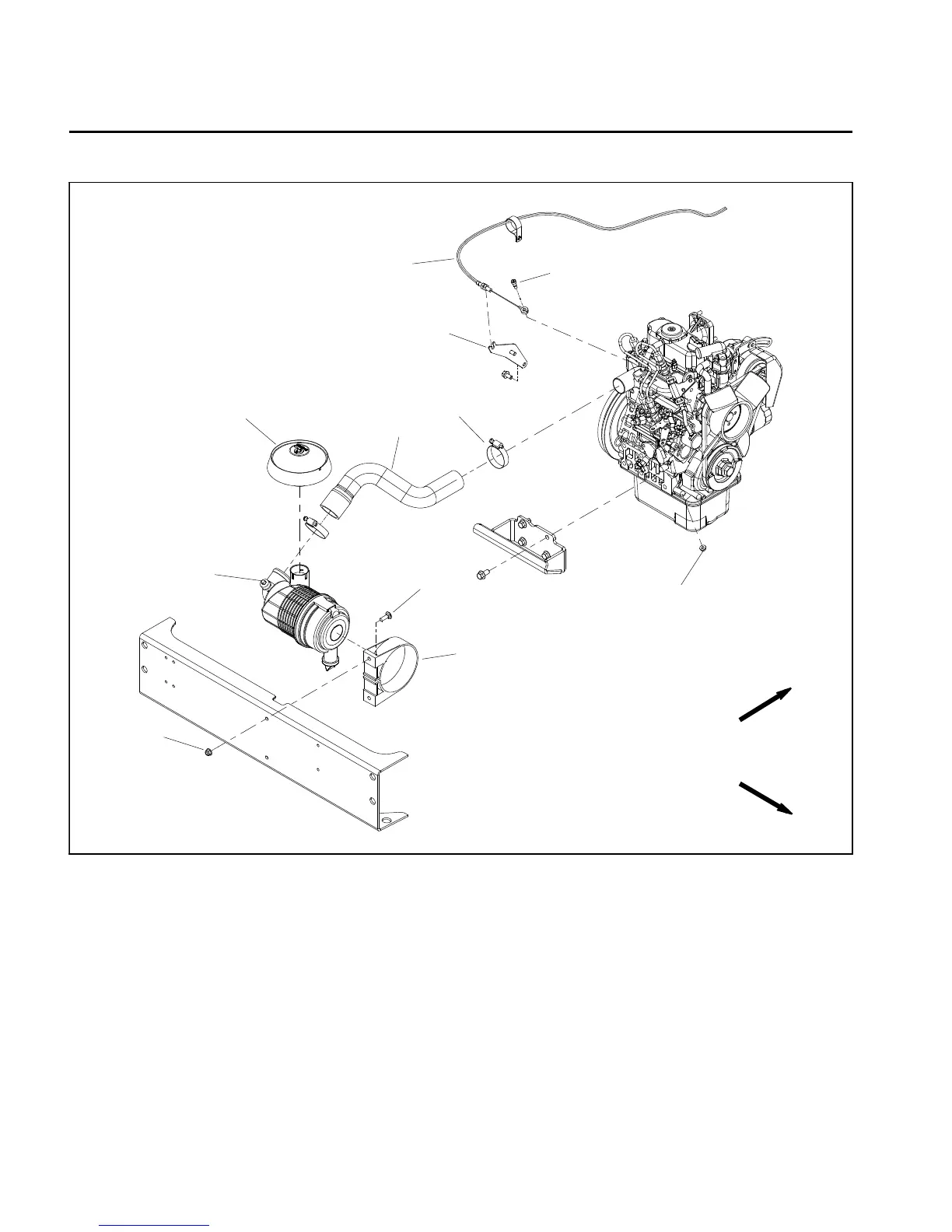

Figure 3
1. Air cleaner assembly
2. Carriage screw (2 used)
3. Air intake hose
4. Air cleaner mounting bracket
5. Air inlet hood
6. Flange nut (2 used)
7. Hose clamp (2 used)
8. Throttle cable
9. Shoulder bolt
10. Throttle cable mount
11. Flange nut
FRONT
RIGHT
1
2
3
4
5
6
7
10
8
9
11
