Toro Workman MDX-D Service Manual

Workman MDX--DPage 6 -- 24Chassis

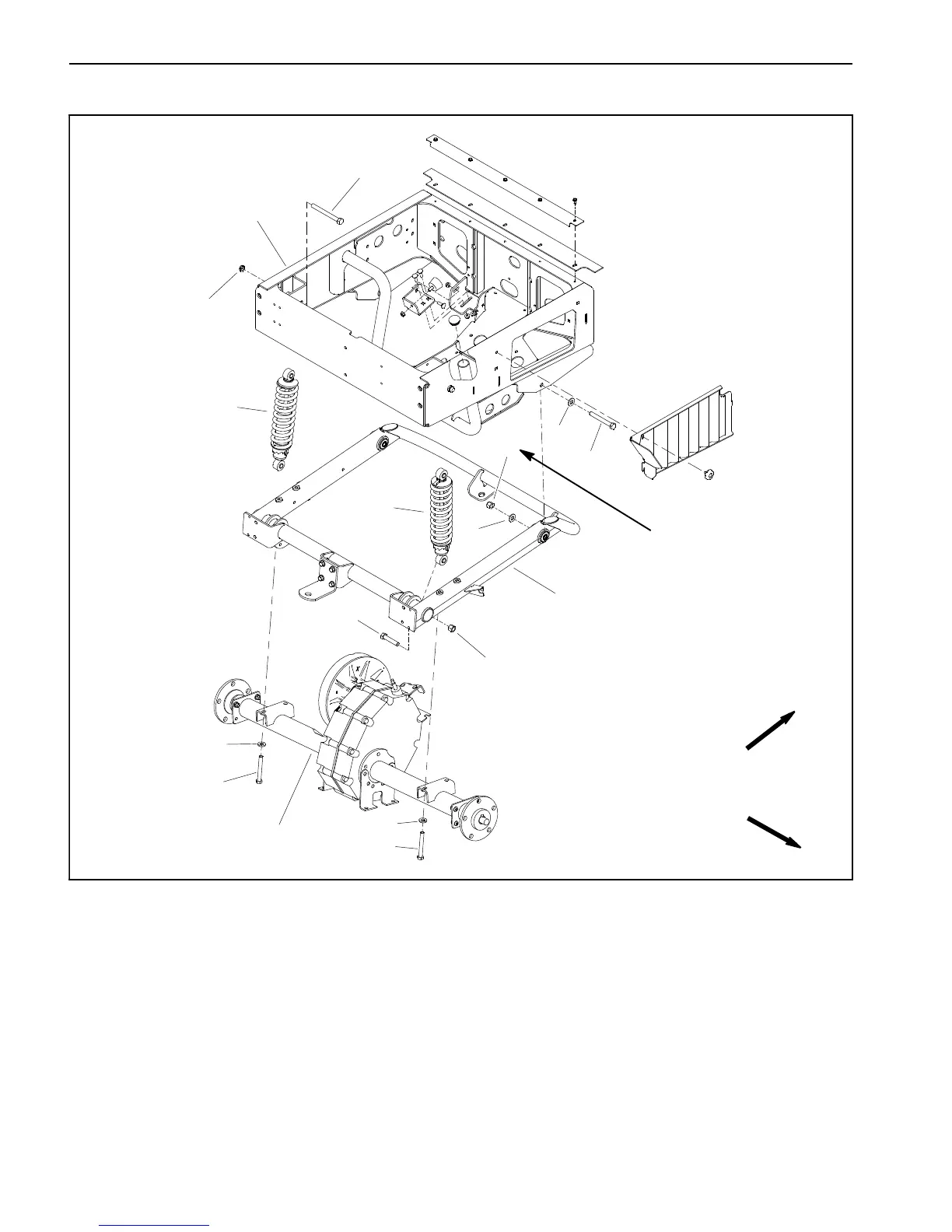

Swing Arm
1. Transaxle assembly
2. Cap screw (4 used)
3. Hardened washer (4 used)
4. Rear shock assembly (2 used)
5. Cap screw (2 used)
6. Lock nut (4 used)
7. Thrust washer (4 used)
8. Cap screw (2 used)
9. Swing arm
10. Rear frame
11. Cap screw (2 used)
12. Lock nut (2 used)
Figure 20
FRONT
RIGHT
70 to 90 ft--lb
(95 to 122 N--m)
3
12
11
1
9
5
10
8
4
2
6
3
2
4
7
7
6
