Toro Workman MDX-D Service Manual

Workman MDX--D
Electrical System
Page 5 -- 10
Fuse Blocks
The fuse block on Workman MDX--D vehicles is located
beneath the dash panel.
In addition to the fuses in the fuse block, an in--line 10
amp fuse is included in the wire harness. This fuse pro-
tects the ignition switch circuits and also provides pro-
tection for the o ptional brake and signal light kit. The
in--line fuse resides in a fuse holder under the dash pan-
el near the fuse blocks (Fig. 11).
Fuse Identification and Function
Use Figure 10 to identify each individual fuse in the fuse
block.
The upper row of fuses protect circuits as follows:
1. The extreme left 10 ampere fuse protects the power
point circuit. This fuse also protects the circuit for the op-
tional backup alarm (if equipped).
2. The middle left 10 ampere fuse protects the engine
start circuit.
3. The middle right 10 ampere fuse protects the light
circuit.
4. The extreme right 15 ampere fuse protects the cir-
cuits for engine electrical components and also dash in-
dicators (hour meter and indicator lights).
The lower row of fuses protect circuits as follows:
1. The extreme left fuse position is not used.
2. Themiddleleft15amperefuseprotectsthecircuitfor
the optional cargo box lift.
3. The middle right 15 ampere fuse protects the circuit
for the optional rear lift kit.
4. The extreme right 30 ampere fuse protects the circuit
for the horn (if equipped).
Fuse Testing
Make sure that ignition switch is OFF and key is re-
moved from switch. Remove fuses from the fuse block
for t esting. A fuse in usable condition should have conti-
nuity between the fuse terminals. A faulty fuse will not
have continuity between the fuse terminals.

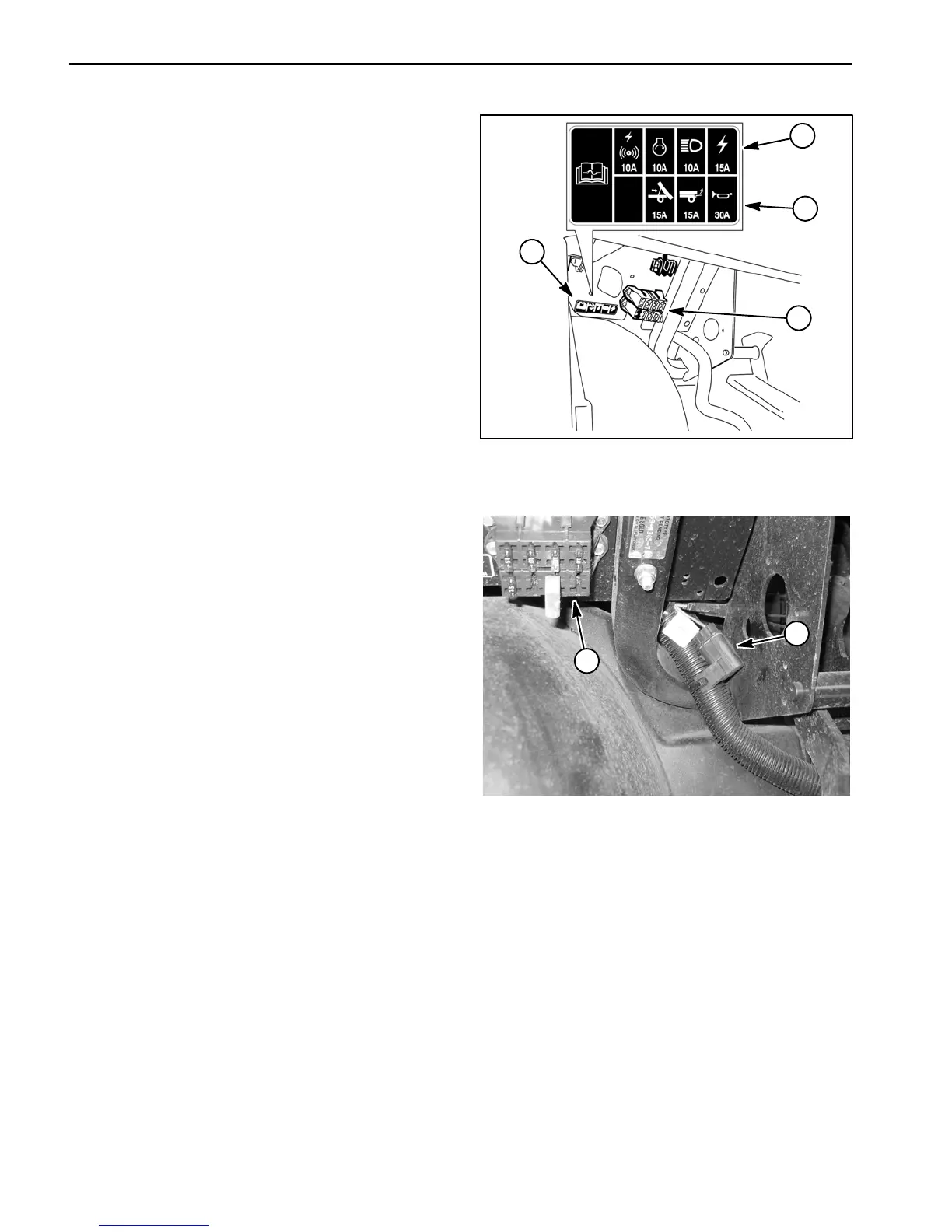

Figure 10
1. Fuse blocks
2. Fuse decal
3. Upper fuses
4. Lower fuses
1
2
3
4
1. In--line fuse 2. Fuse block
Figure 11
2
1
