Toro Workman MDX-D Service Manual

Workman MDX--D Page 3 -- 5 Diesel Engine
Adjustments
Adjust Throttle Cable
Proper throttle operation is dependent upon proper ad-
justment of throttle control. Make sure throttle control is
operating properly.
NOTE: The shoulder bolt that secures the throttle cable
to the engine speed control lever should be positioned
inthelowestholeinthelever.
1. F ully depress t hrottle pedal to position engine s peed
control lever in the high speed position.
2. Check position of the engine speed control lever on
the fuel injection pump (Fig. 1). The speed control lever
should contact the high speed screw when the throttle
pedal is fully depressed.
3. If necessary, throttle control can be adjusted by loos-
ening cable jam nuts and repositioning throttle cable un-
til speed control lever contacts high speed screw when
the throttle pedal is fully depressed (Fig. 2). Tighten
cable jam nuts after a djustment has been completed.
4. Release throttle pedal and make sure that cable is
loose enough to allow engine speed control lever to re-
turn to the idle position.

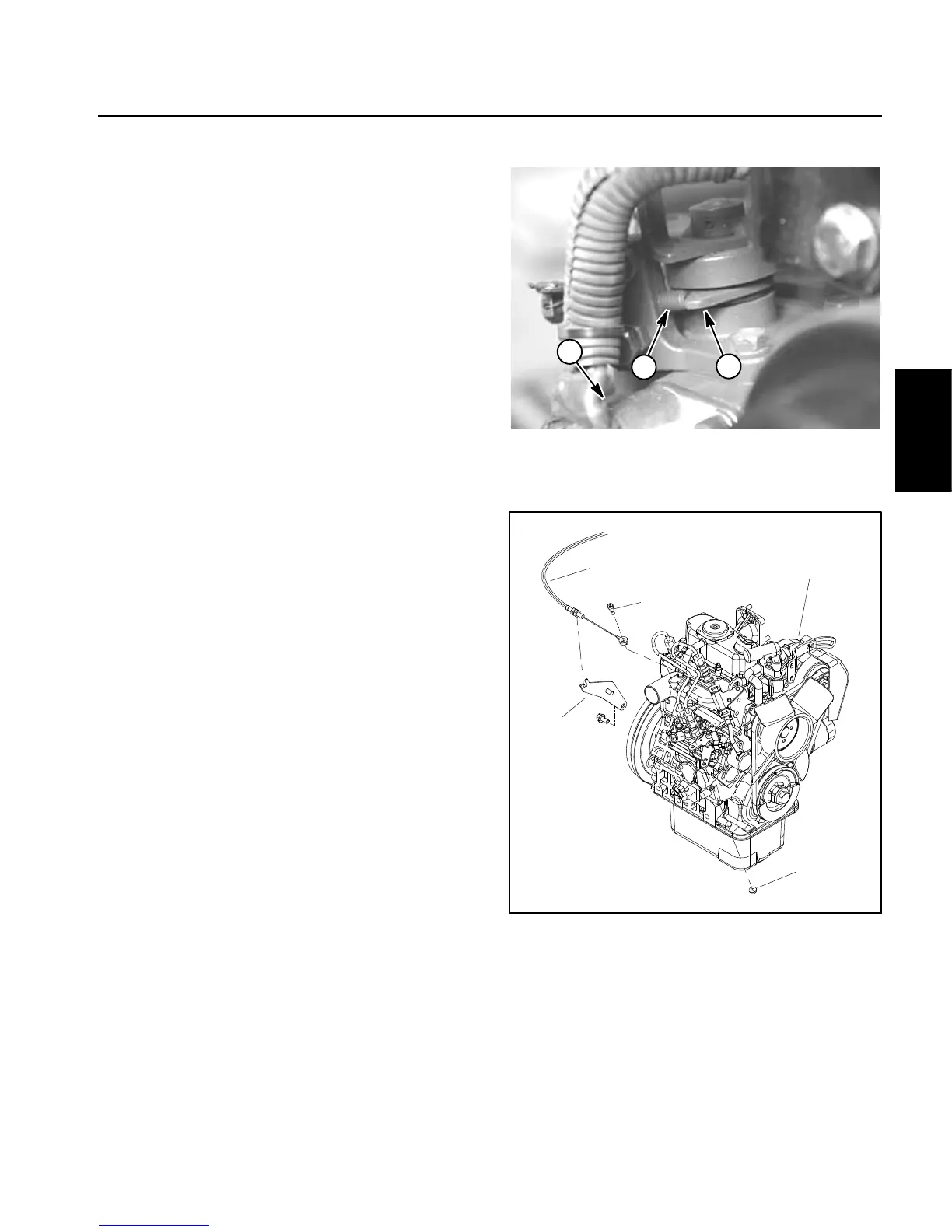

Figure 1
1. High speed screw
2. Speed control lever
3. Engine run solenoid
3
2
1
Figure 2
1. Diesel engine
2. Throttle cable
3. Shoulder bolt
4. Flange nut
5. Throttle cable mount
4
3
2
5
1
Diesel
Engine
