Workman MDX--D Drive TrainPage 4 -- 33

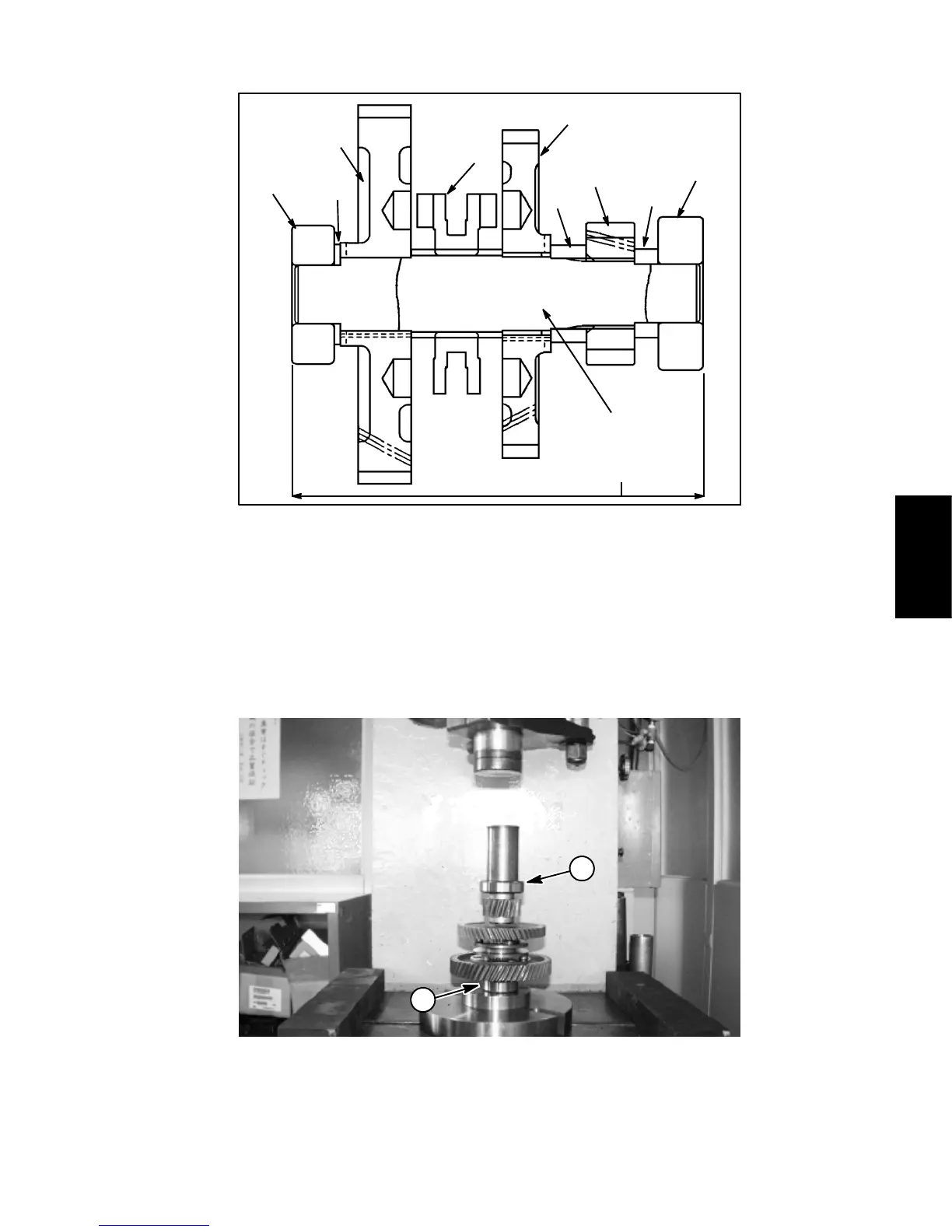

2. Assemble the center shaft assembly.
1. Pin clutch
2. Center shaft
3. Gear 47
4. Gear 55
5. Collar
6. Gear (small)
7. Bearing
8. Bearing
9. Spacer
Figure 39
7
4
6
3
5
5
8
2
1
9
5.386” to 5.398”
(136.8 to 137.1 mm)
NOTE: Before assembling, apply molybdenum disul-
fide grease to the inside of gears 47 and 55.
A. Slide pin clutch onto the centershaft. Install gears
47 and 55 onto shaft noting correct orientation of
gears. Slide collars, small gear and spacer onto the
center shaft.
1. Ball bearing 2. Ball bearing
Figure 40
1
2
B. Press ball bearings onto the center shaft using a
bearing press.
C. Make sure distance from one ball bearing outer
edge to the other ball bearing outer edge is 5.386” to
5.398” (136.8 to 137.1 mm) (Fig. 39).
Drive T rain
