Toshiba B-SA4T User Manual

- 73 -
 Delete
Enables deleting the currently selected bar code font.
Select a bar code font, then click the [Font] button and the “Delete” or right-click the font and select the
“Delete”.

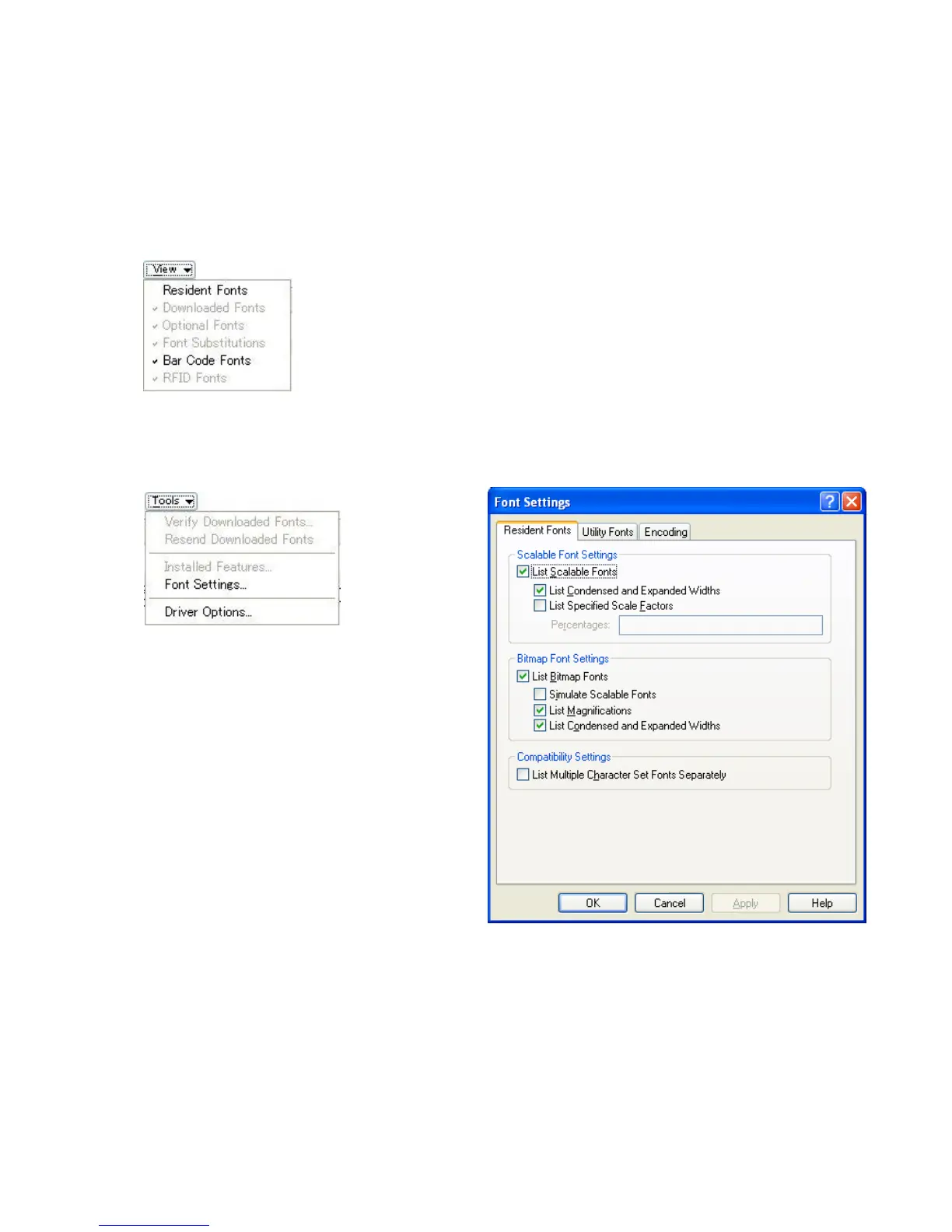

 View
Enables filtering the bar code font types to display. “Resident Fonts” and “Bar code fonts” are available.
Supplement: The bar code font list on the [Fonts] page only shows the font types usable
by the applicable printer driver.
Bar code fonts registered to other printer driver installed in the same PC
are not displayed.
 Tools
Enables setting the resident fonts and the printer driver options.
 Resident Fonts tab
 Scalable Font Settings
List Scalable Fonts: When this checkbox is
checked, the scalable fonts (outline fonts) can be
used on the application. When not checked, the
scalable fonts cannot be used.
List Condensed and Expanded Widths: When
this checkbox is checked, scalable fonts (outline
fonts) with the width condensed or expanded can
be used.
List Specified Scale Factors: When this
checkbox is checked, the scalable fonts (outline
fonts) with the width reduced or enlarged at an
optional scale factor can be used. Since this
feature is not supported, do not change the
default setting.
Percentages: Checking the “List Specified Scale Factors” checkbox enables specifying a scale factor.
Since this feature is not supported, do not change the default setting.

Toshiba B-SA4T Specifications

General

Print Method	Thermal transfer and direct thermal
Resolution	203 dpi
Print Width	104 mm
Interfaces	Serial, Parallel, USB
Optional Interfaces	Ethernet, Wireless
Barcodes	Code 39, Code 128
2D Codes	PDF417, Data Matrix, QR Code, MaxiCode
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20 - 60 °C (-4 - 140 °F)
Humidity	20% to 85% (non-condensing)
Interface	USB, Serial (RS-232), Parallel, Ethernet, Wireless
