5
© 2008 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO2820C/2830C/3520C/3530C/4520C
PREVENTIVE MAINTENANCE (PM)
5 - 17
5.5.7 Drum/Cleaner unit, Cleaner related section

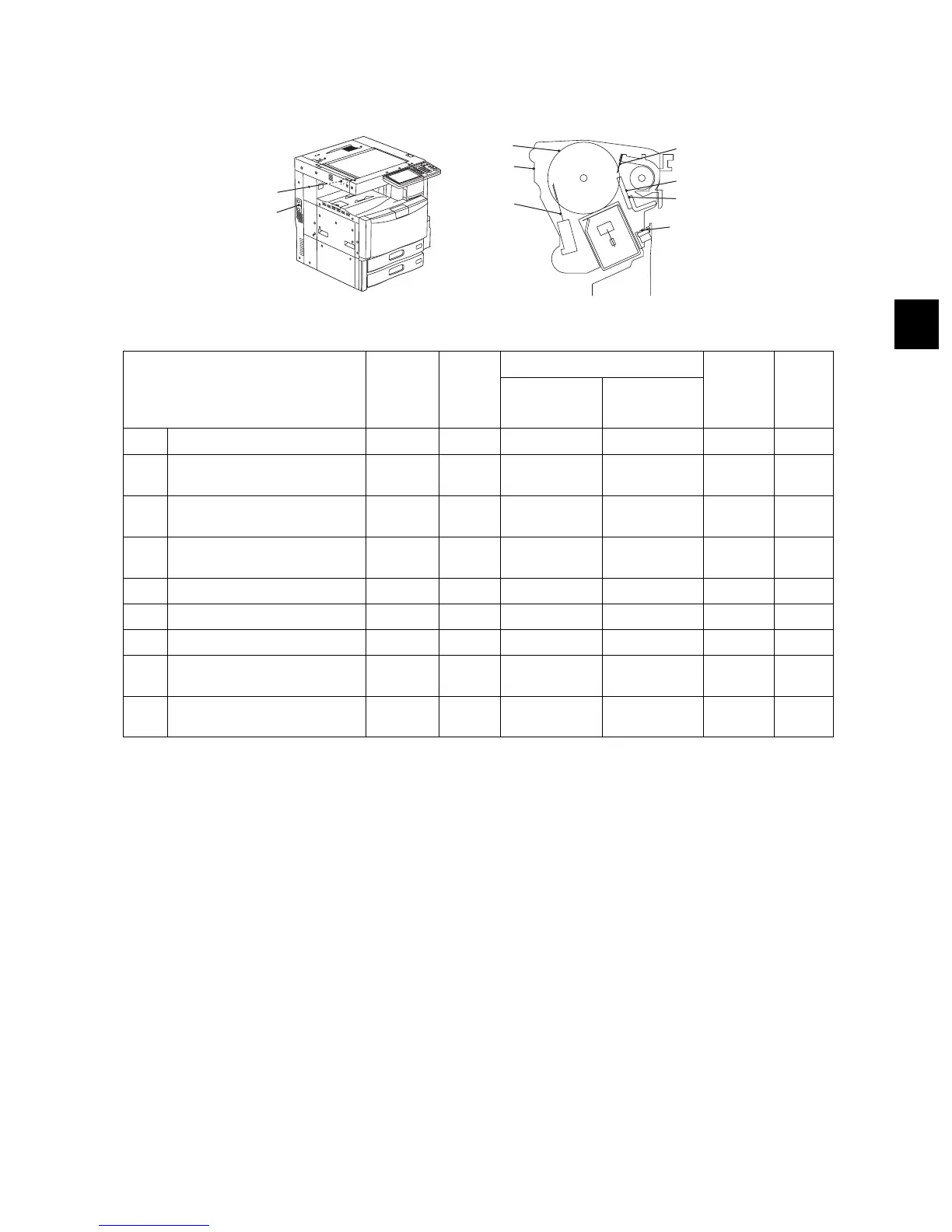

Fig. 5-17
* G2: Drum
• Handling precautions
If fingerprints or oil adhere to the surface of the drum, its properties may degrade, affecting
the quality of the copy image. So, wear gloves to avoid touching the drum surface with your
bare hands. Be sure to handle the drum carefully when installing and removing it so as not to
damage its surface.
• Do not use "patting powder" (lubricant)
Since "patting powder" may affect the initial image if it adheres to the OPC surface, do not
apply it. The friction between the drum and cleaning blade is sufficiently small without it and
no problem would occur even if it is not applied.
Items to check Cleaning
Lubri-
cation/
Coat-
ing
Replacement
Opera-
tion
check
Parts
list
<P-I>
(x 1,000
sheets)
(x 1,000 drive
counts)
G1 Whole cleaner unit B
G2 Drum 56/70/70
(56/56/70)
170
G3 Drum cleaning blade 56/70/70
(56/56/70)
170 39-16
G4 Pad B R R 39-19
39-20
G5 Recovery blade B 39-21
G6 Drum thermistor B 38-33
G7 Discharge LED B 36-19
G8 Ozone filter-1 56/70/70
(56/56/70)
170 1-13
G9 Ozone filter-2 224/280/280
(224/224/280)
680 7-36
G2
G4
G1
G3
G5
G7
G9
G6
G8
To Next Page
