60 GX9 ASD Installation and Operation Manual
System Operation
Startup Wizard
The Startup Wizard launches upon the first power up of the system and assists with the initial
configuration of the input power settings and the output parameters of the GX9 ASD. The GX9 ASD may
also be setup via communications, by directly accessing the individual parameters via the menu hierarchy,
or using the Direct Access parameter numbers (see pg. 75).
See the section titled Default Setting Changes on pg. 61 for more information on changing the parameter
settings.
After the initial execution of the Startup Wizard at the first power up, the wizard may only be run by
setting the following menu item to Ye s — Program  Utilities  Display Parameters  Display the
startup wizard next power-up?
Upon the next power up, the system will launch to the Startup Wizard. Once completed, the system will
set the
Display the startup wizard next power-up? setting to No (for the next system power up) and
normal startups will resume.
The Startup Wizard querys the user for the following information:
1. The Voltage and Frequency Rating of the Motor.
2. The Upper Limit Frequency.
3. The Lower Limit Frequency.
4. Adjust Adjust Accel/Decel Automatically? (if Enabled, continue from step #7).
5. The Acceleration Time.
6. The Deceleration Time.
7. The Volts Per Hertz Setting.
8. The Motor Current Rating.
9. The Motor Capacity.
10. The Command Source.
11. The Frequency Command Source.
12. The Display Units for current and voltage.
Click Exit to load the settings of the Startup Wizard into the ASD.
See the section titled Startup Wizard Requirements on pg. 62 for additional information on the Startup
Wizard.
Operation (Local)
Note: See Local|Remote Key on pg. 33 for information on Remote operation.
To turn the motor on, perform the following:

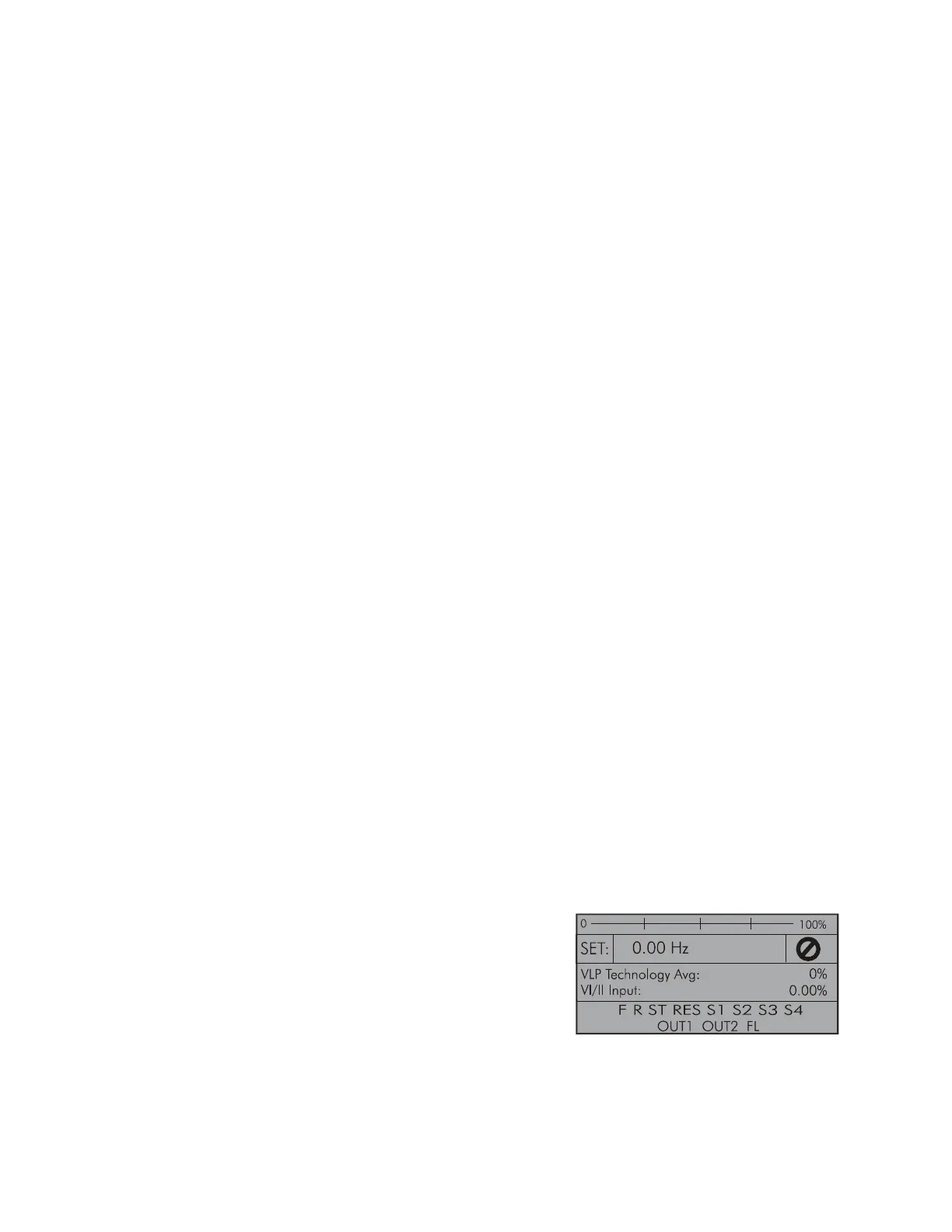

1. Press the Mode key until the Frequency Command
screen is displayed.
2. Press the Local/Remote key to enter the Local mode
(green Local LED illuminates).
3. Turn the Rotary Encoder clockwise until the Fre-
quency Command value is displayed in the Set field.
4. Press the Run key and the motor runs at the Frequency Command value.
Note: The speed of the motor may be changed while the motor is running by using the Rotary
Encoder to change the Frequency Command value.
5. Press the Stop|Reset key to stop the motor.
