62 GX9 ASD Installation and Operation Manual
Startup Wizard Requirements
The Startup Wizard assists the user with the initial configuration of the GX9 ASD by querying the user
for information on the ASD control settings, motor ratings, and ASD display units. The GX9 ASD may
also be setup by accessing each of the settings via the Program menu or by using the Direct Access
Number of each parameter (see the section titled Direct Access Parameter Information on pg. 75 for
specifics on each parameter).
Upon initial system power up, the Startup Wizard starts automatically and the Welcome screen is
displayed. Click Next to continue with the Startup Wizard or click Exit to go to the Wizard Finished!
screen.

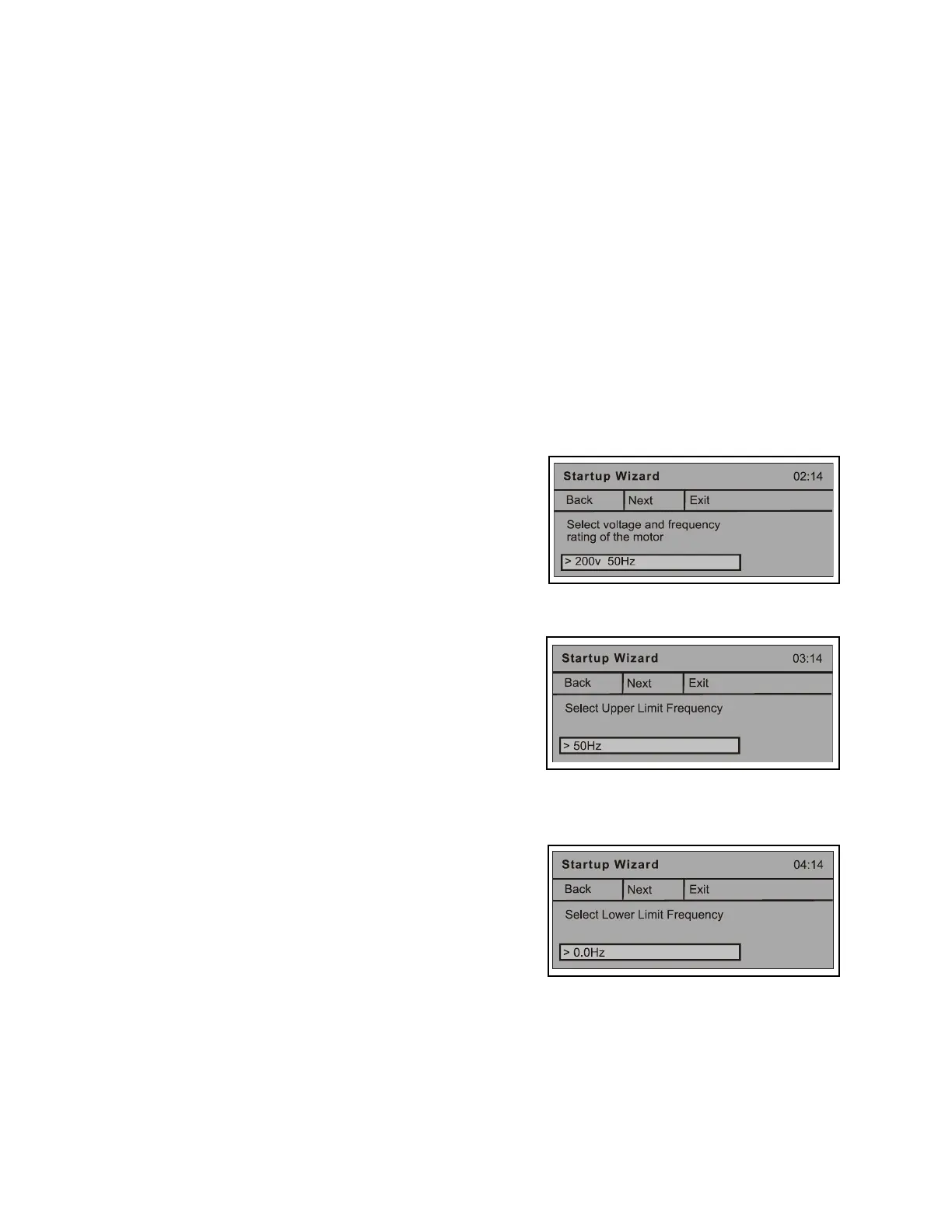

Running the Startup Wizard
Input the required information into the following screens to complete the Startup Wizard.
1. Voltage and Frequency Rating of the Motor
Motors are designed and manufactured for operation
within a specific voltage and frequency range. The
voltage and frequency specifications for a given
motor may be found on the nameplate of the motor.
Settings:
4 — 575V 60 Hz
2. Upper Limit Frequency
This parameter sets the highest frequency that the
GX9 ASD will accept as a frequency command or
frequency setpoint. The GX9 ASD may output
frequencies greater than the Upper Limit
Frequency (but, less than the Maximum Frequency)
when operating in the PID Control mode, Torque
Control mode, or the Vector Control mode
(sensorless or feedback).
3. Lower Limit Frequency
This parameter sets the lowest frequency that the
GX9 ASD will accept as a frequency command or
frequency setpoint. The GX9 ASD will output
frequencies lower than the Lower Limit Frequency
when accelerating to the lower limit or decelerating
to a stop. Frequencies below the Lower Limit may
also be output when operating in the PID Control
mode, Torque Control mode, or the Vector Control
mode (sensorless or feedback).
