GX9 ASD Installation and Opera
tion Manual
65
1

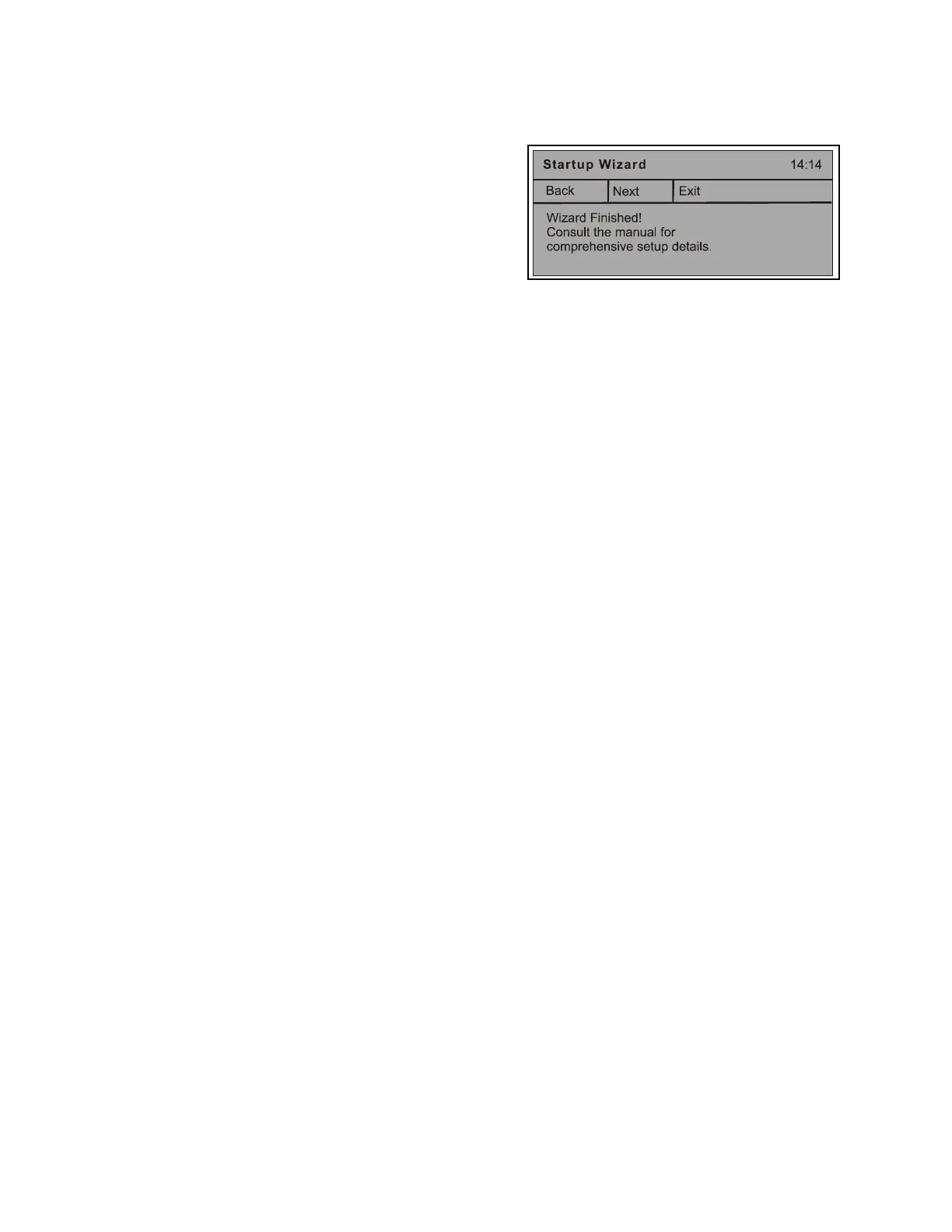

1. Wi
zard Finished!
This screen is the final screen
of the
S
tart
up
Wizard
. The bas
ic par
ameter
s of the
GX9 ASD
have be
en set. Clic
k
Exit
to load the
St
a
r
t
u
p
Wizard
input and to
return to the
Fr
equency
Command
s
creen. Additional application-specific
programmi
ng may be r
equired.
76
78
Table of Contents
Default Chapter
9
Table of Contents
9
General Safety Information
13
Safety Alert Symbol
13
Signal Words
13
Special Symbols
14
Equipment Warning Labels
14
Qualified Personnel
14
Equipment Inspection
15
Handling and Storage
15
Disposal
15
Installation Precautions
16
Location and Ambient Requirements
16
Mounting Requirements
16
Conductor Routing and Grounding Precautions
17
Power Connections Precautions
17
Protection
18
Dynamic Braking Resistor Requirements
18
Residual Voltage Warning
19
System Integration Precautions
20
Personnel Protection
20
System Setup Requirements
21
Operational and Maintenance Precautions
22
Motor Characteristics
23
Motor Autotuning
23
Pulse Width Modulation Operation
23
Low Speed Operation
23
Overload Protection Adjustment
23
Operation above 60 Hz
24
Power Factor Correction
24
Light Load Conditions
24
Motor/Load Combinations
24
Load-Produced Negative Torque
25
Motor Braking
25
GX9 ASD Characteristics
26
Over-Current Protection
26
GX9 ASD Capacity
26
Using Vector Control
26
Local/Remote Operation
26
Installation and Connections
27
Installation Notes
27
Mounting the ASD
28
Connecting the ASD
29
Power Connections
29
System Grounding
31
Lead Length Specifications
31
I/O and Control
32
Terminal Descriptions
33
GX9 ASD Control
37
CNU1 and CNU2 Pinout
38
CN3 Pinout
38
CN7 Pinout
39
I/O Circuit Configurations
40
Startup and Test
41
Save User Settings
41
Typical Connection Diagram
42
Electronic Operator Interface
43
EOI Operation
43
Battery Backup
43
EOI Features
45
LED/LCD Screens
46
Using the LCD Screen
47
EOI Remote Mounting
48
Remote EOI Hardware
48
EOI Installation Precautions
49
EOI Remote Mounting W/O the ASD-MTG-KIT9
49
EOI Remote Mounting Using the ASD-MTG-KIT9
50
System Configuration and Menu Options
51
Root Menus
51
Frequency Command Mode
51
Monitor Mode
53
Main Monitor Selections
55
Program Mode Menu Navigation
56
System Operation
72
Startup Wizard
72
Operation (Local)
72
Default Setting Changes
73
Startup Wizard Requirements
74
Running the Startup Wizard
74
Command Mode and Frequency Mode Control
78
Command Control (F003)
78
Frequency Control (F004)
79
Command and Frequency Control Selections
80
Command and Frequency-Control Override Hierarchy
80
Command Control Selections
81
Frequency Control Selections
81
Virtual Linear Pump Setup
83
Direct Access Parameter Information
87
Direct Access Parameters/Numbers
87
Alarms, Trips, and Troubleshooting
235
Alarms and Trips
235
User Notification Codes
236
Alarms
237
Trips/Faults
240
Viewing Trip Information
245
Clearing a Trip
245
Part Numbering Convention and Ordering Information
246
Cable/Terminal Specifications
248
Voltage/Current Specifications
249
Enclosure Dimensions/Weight
