GX9 ASD Installation and Operation Manual 77
FM Output Terminal Function
Program Terminal Analog Output Terminals
This setting determines the output function of the FM analog output terminal.
The FM output terminal produces an output voltage or current that is
proportional to the magnitude of the function assigned to this terminal. The
available assignments for this output terminal are listed in Table 9 on pg. 221.

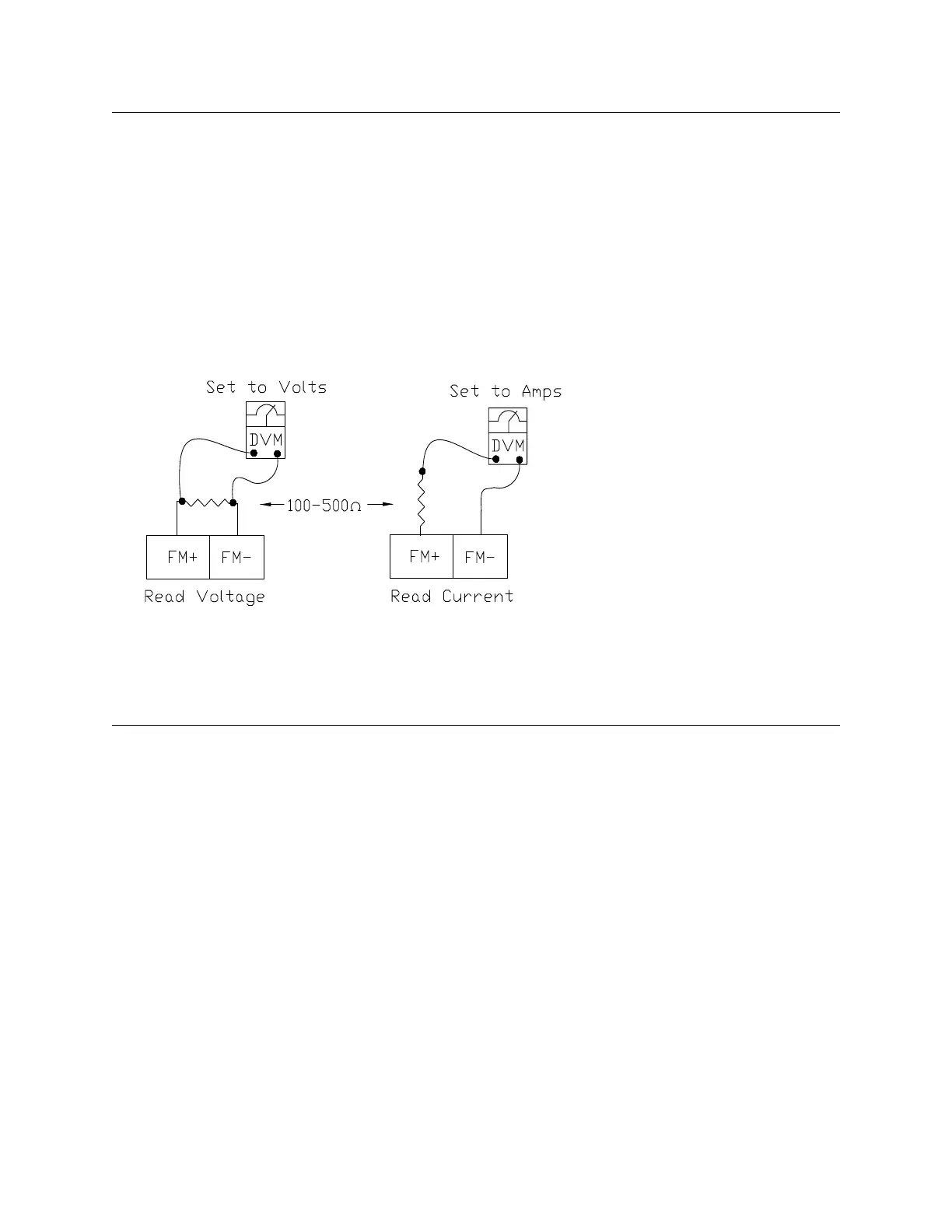

To read Voltage at this terminal, connect a 100 – 500 resistor from FM (+) to
FM (-). The voltage is read across the 100 – 500 resistor.
To read Current at this terminal, connect a 100 – 500 resistor in series from
FM (+), through the current meter, to FM (-).
The FM Output Terminal Adjustment (F006) is used to calibrate the output
signal for a proper response. SW-2 at the Terminal Board may be switched to
allow for the full-range output to be either 0 – 1 mA or 4 – 20 mA when
providing an output current, or either 0 – 1 or 1 – 7.5 volts when providing an
output voltage at this terminal.
Direct Access Number — F005
Parameter Type — Selection List
Factory Default — Output Frequency
Changeable During Run — Yes
FM Output Terminal Adjustment
Program Terminal Analog Output Terminals
This parameter is used to calibrate the FM terminal analog output.
To calibrate the FM analog output, connect a meter (current or voltage) as
described at F670.
With the ASD running at a known value (e.g., output frequency), adjust this
parameter until the assigned function produces the desired DC level output at
the FM output terminal.
See F670 for more information on this setting.
Direct Access Number — F006
Parameter Type — Numerical
Factory Default — 512
Changeable During Run — Yes
Minimum — 1
Maximum — 1280
F005 F006
