– 107 –
INTERFACE MANUAL
STE 85457

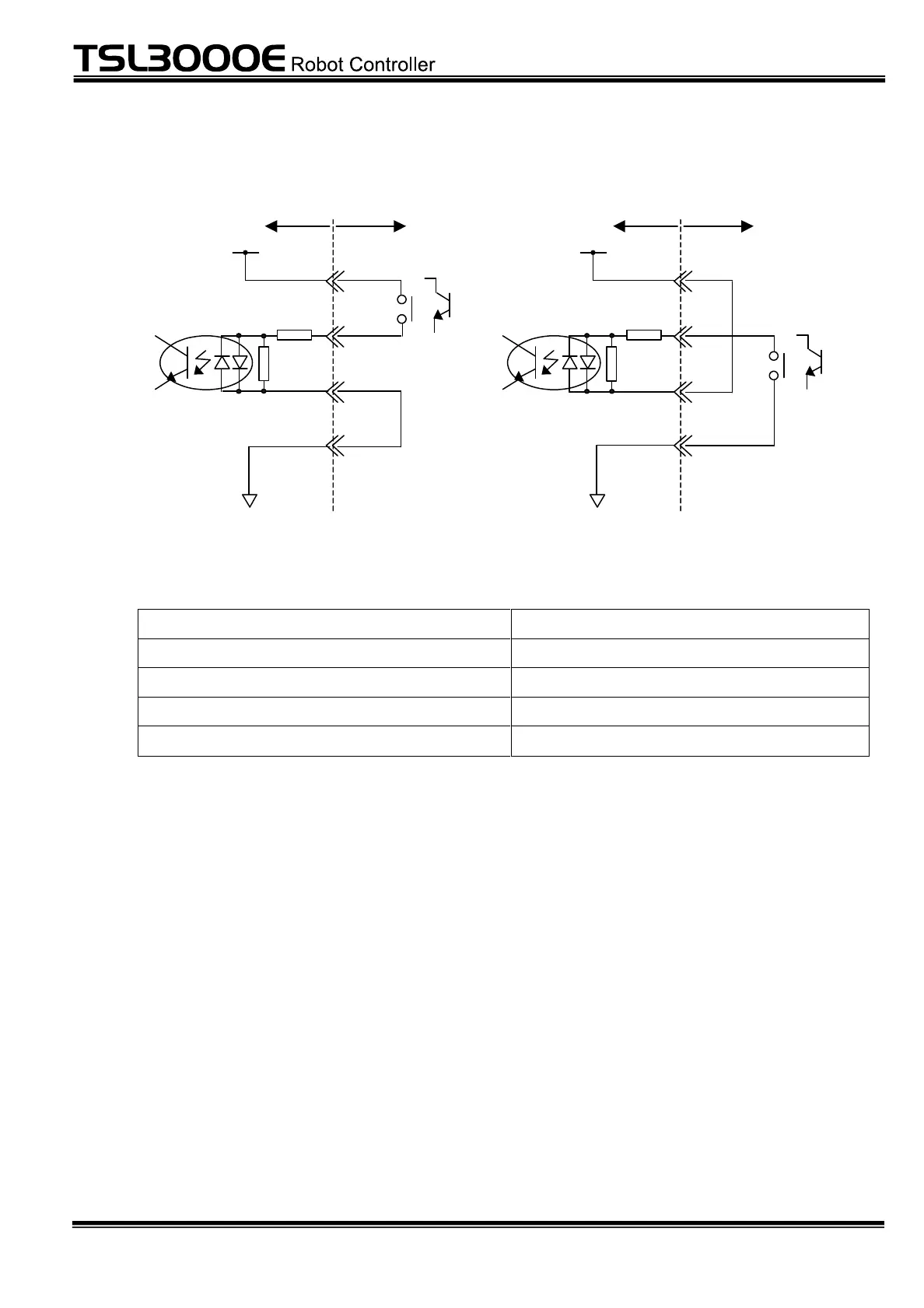

P24V
DI_101
to
INCOM1 to 3
User side
TR48DIOCN
Sink type (󳆟- common)
Source type (󳆟+ common)
DI_128
(DI_133
to
DI_160)
DI_101
to
DI_128
(DI_133
to
DI_160)
P24V
P24G
INCOM1 to 3
TR48DIOCN
P24G
Contact or transistor
User side
Contact or
transistor
 No-voltage contact/transistor required specifications
No-voltage contact specifications
Transistor specifications
Contact rating 24V DC 10 mA or more
Collector-emitter voltage 30 V or more
Circuit current Approx. 7 mA
Collector-emitter current 10 mA
Minimum current 24V DC 1 mA
Circuit current Approx. 7 mA
Connection impedance 100  or less
Collector-emitter leakage current 100 μA
