INTERFACE MANUAL
STE 85457
Section 4 External I/O Signal Cable
4.1 SAFE I/O Signal Cable
To use a customer’s special system, use the attached connectors DFMC 1,
5/12-ST-3, 5-LR (plug type) for connecting the SAFE cable on the robot controller
side. The connectors are the I/O connectors for contact inputs of the external
emergency stop switch in the high-order system, safety door, etc. and for relay
outputs that indicate the TSL3000E/TSL3100E controller status.

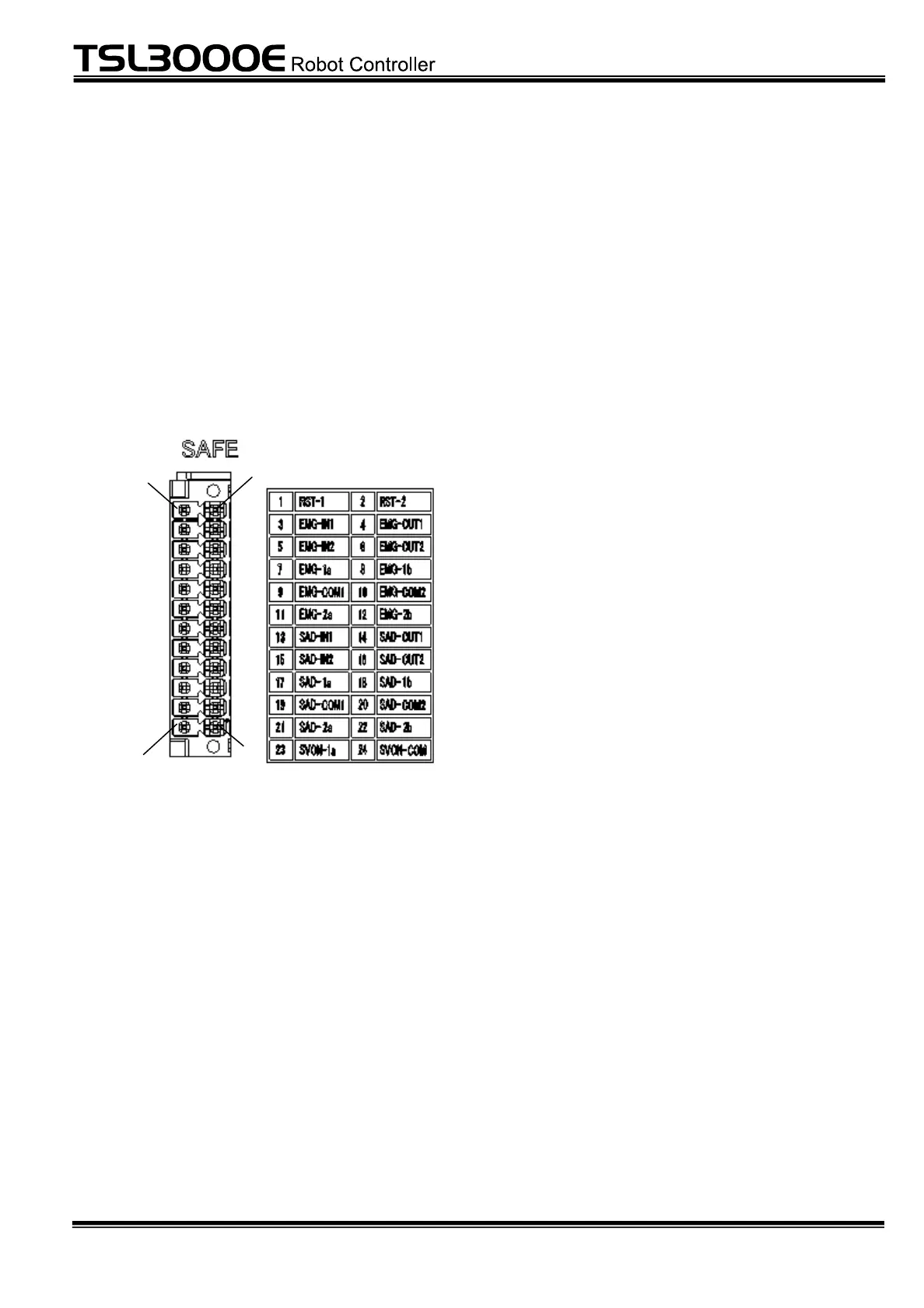

Detail of SAFE connector on controller front panel
1
2
23
24
