122
PK313

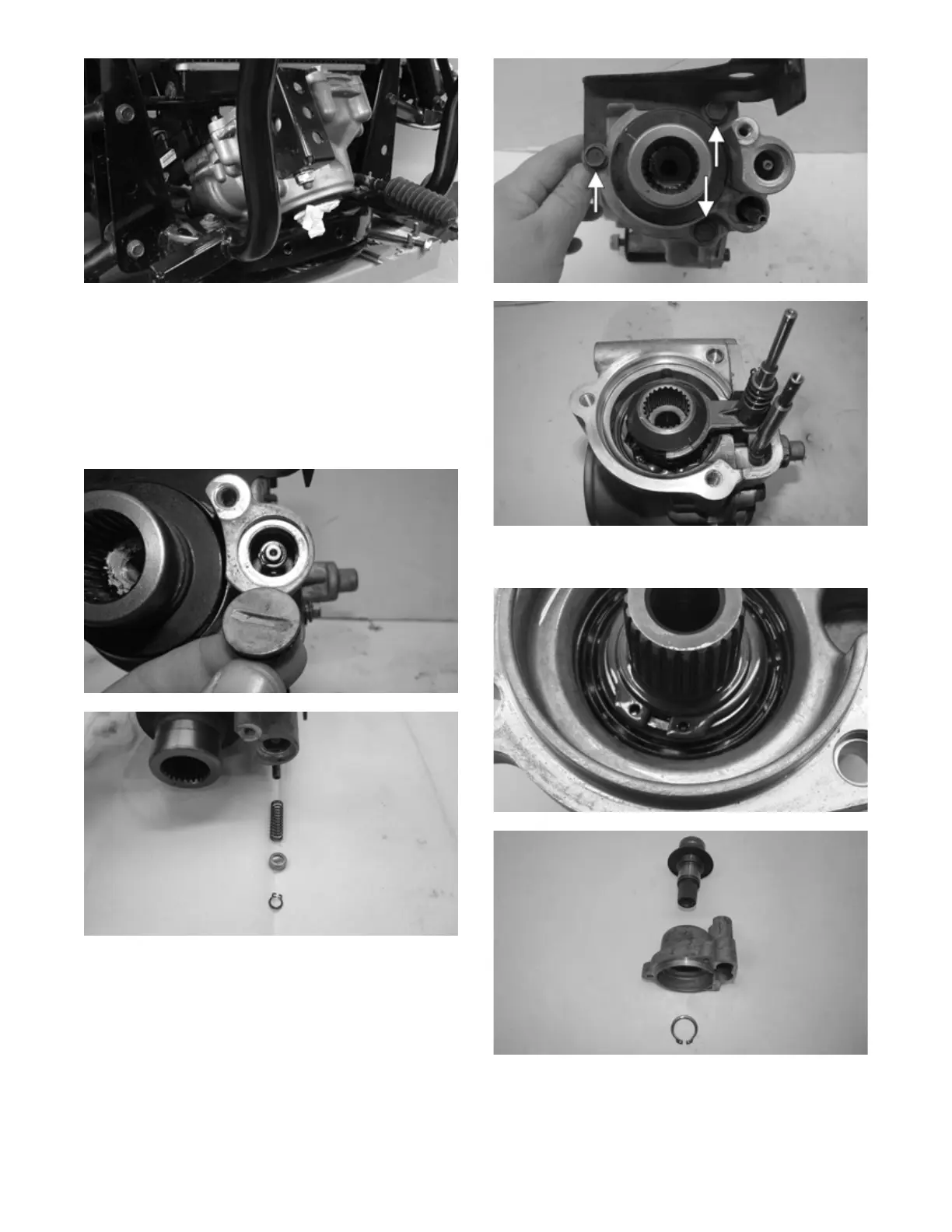

Disassembling Input Shaft
1. Remove the actuator (see Front Drive Actuator sec-
tion).
2. Remove the slotted aluminum plug and account for
the O-ring. Remove the differential locking shaft cir-
clip. Account for the circlip, spring retainer, and
spring. Note the orientation of these components for
assembly purposes.
PK036
PK037
3. Noting the orientation of the actuator bracket,
remove the three cap screws securing the input hous-
ing. Using a rubber a mallet to loosen the housing
from the differential, remove the housing. Account
for the dowel pin and gasket.
PK038A
PK039
4. Remove the snap ring securing the input shaft; then
slide it out of the housing.
PK040
PK041
5. To gain access to the housing bearing, remove the
seal and snap ring from the input shaft housing.
