141

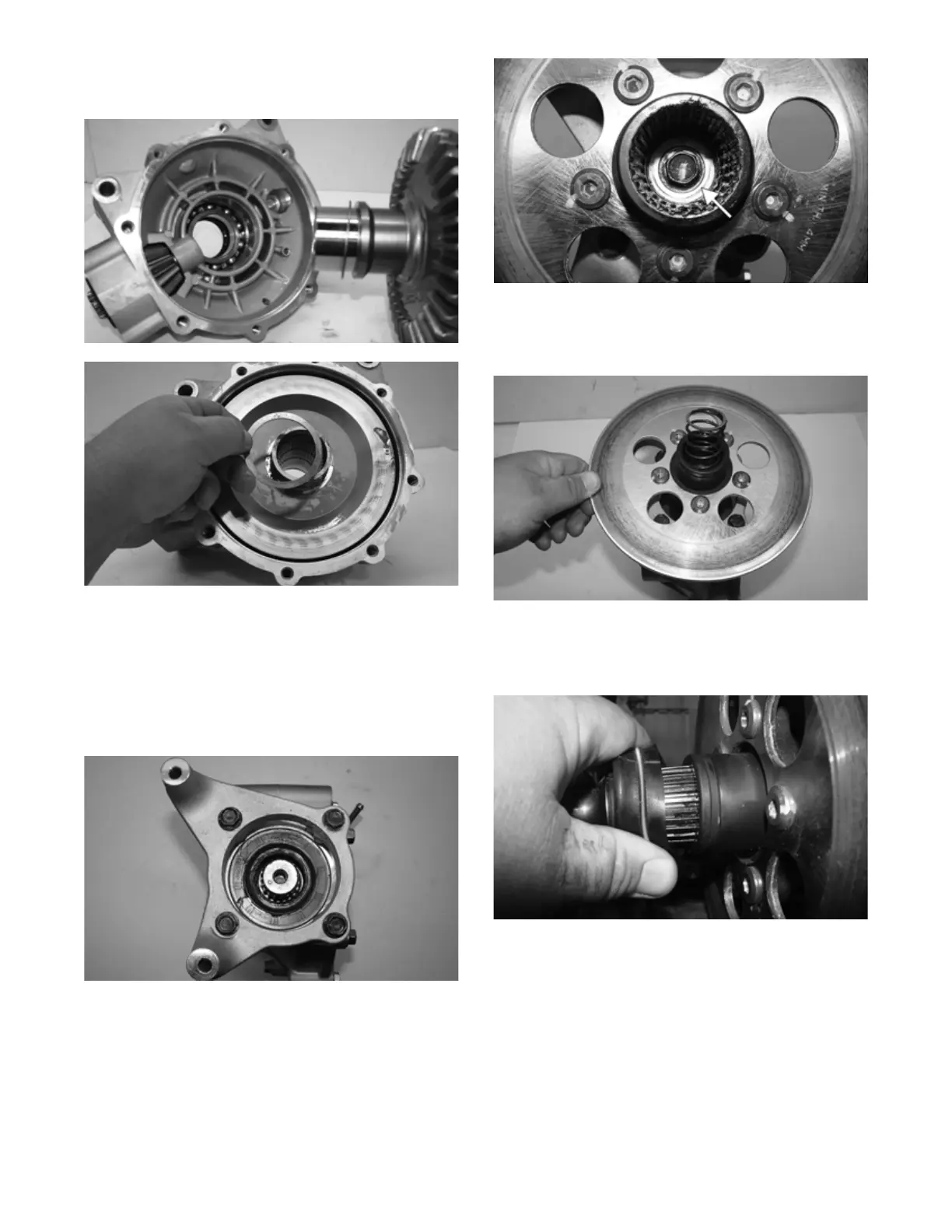

7. Place the correctly sized case side shim onto the ring
gear; then install into the gear case. Place the cover
side shim onto the ring gear.
PK262
PK249
8. Thoroughly clean the matting surface of the case and
cover. Apply a suitable sealant to the surface; then
install the cover. Using a criss-cross pattern, tighten
the cap screws to 16.5 ft-lb (22.4 N-m).
9. Place the two dowel pins into position; then install
the brake caliper mount. Using two new patch-lock
caps screws, tighten all four cap screws with crush
washers to 19 ft-lb (25.8 N-m).
PK246
10. Secure the input shaft to the pinion gear shaft using
the cap screw and washer. Tighten to 32 ft-lb (43.5
N-m).
PK245A
INSTALLING
1. Place the spring into the input shaft; then position the
gear case into position below the frame mounts.
PK244
2. Lightly grease both splined ends of the rear propeller
shaft engaging the splines to the rear engine flange.
Slide the differential forward to engage the splines of
the rear propeller shaft.
PK264
3. Lift the differential up into the frame mounts; then
insert the through bolts. Using new lock nuts, tighten
to 39 ft-lb (53 N-m). Place the bladder hose onto the
ventilation fitting located on the top left of the gear
case.
