74

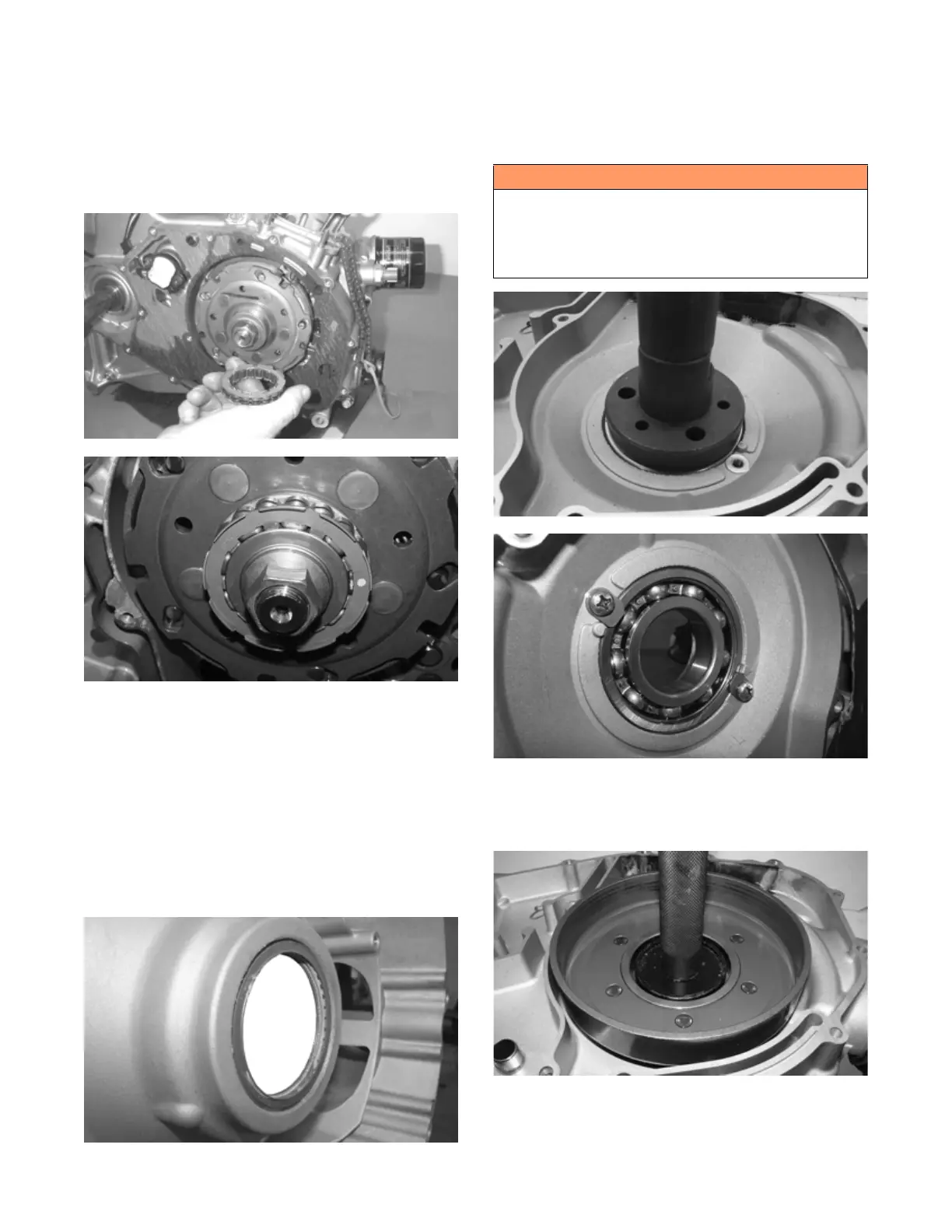

9. Install the one-way clutch making sure that the green
dot or the word OUTSIDE is directed away from the
crankcase. There is also a directional arrow to indi-
cate the correct orientation of installation on the cen-
trifugal clutch.
NOTE: When viewing the centrifugal clutch as
shown below, the normal rotation of the clutch is
clockwise.
MD1286A
FI741
B. Clutch Cover
C. Fixed Drive Face
D. Movable Drive Face
NOTE: Steps 1-9 in the preceding sub-section must
precede this procedure.
1. Grease the inner and out lips of the seal; then using
an appropriately sized seal driver, drive a new seal
into the inner clutch cover housing.
2. On the opposite side of the clutch cover, verify the
seal is fully seated.
MD1115
3. Place a new bearing into position with the sealed side
of the bearing facing down; then using an appropri-
ately sized bearing driver, press the bearing via the
outer race into the inner clutch cover. Apply blue
Loctite #243 to the threads of the two Phillips head
screws and secure the two retainers.
FI737
FI734
4. Lubricate the inner race of the centrifugal clutch
housing bearing with engine oil; then using a bearing
driver and ball peen hammer, drive the clutch hous-
ing into the bearing until it fully seats.
FI738
5. With a new O-ring installed into the spacer, place the
spacer over the centrifugal clutch housing shaft and
fully seat it into the inner clutch cover seal.
! WARNING
Whenever a hydraulic press is used, a protective shield
must be in place on the press and it must be utilized.
Otherwise severe bodily damage can occur. Always use
protective eye wear and clothing when using a hydrau-
lic press.
